High Temperature Resistant Woven Geotextile Dewatering Tube For Palm Oil Sludge Dewatering
High Temperature Resistant Woven Geotextile Dewatering Tube For Palm Oil Sludge Dewatering
In modern environmental dredging and wastewater treatment setups, optimizing solid-liquid separation requires an exceptionally strong and permeable barrier. Our heavy-duty PP Geotextile Tube is engineered to deliver high-performance mechanical volume reduction for various sludge dewatering applications. Woven from premium, UV-stabilized polypropylene fibers, this massive geotextile tube functions as a highly durable dewatering bag that withstands continuous high pumping pressures without rupturing. The engineered matrix of this professional dewatering tube traps fine silt, organic sludge, and industrial contaminants securely inside while letting clear water drain away rapidly. By integrating this reliable containment system into your job site, you can achieve cost-efficient waste consolidation and maintain compliance with strict local eco-inspections.
|
Item
|
Unit
|
Technical Parameters
|
|||
|
Tube 500
|
Tube 750
|
Tube 1000
|
|||
|
Breaking strength
|
MD
|
KN/m ≥
|
70
|
120
|
200
|
|
CD
|
KN/m ≥
|
90
|
120
|
200
|
|
|
Elongation of break
|
MD
|
%≤
|
20
|
20
|
20
|
|
CD
|
%≤
|
10
|
10
|
10
|
|
|
Sewing Tensile strength
|
≥%
|
80
|
80
|
80
|
|
|
Bursting Strength(CBR)
|
KN≥
|
8
|
14
|
18
|
|
|
Equivalent opening size(O90)
|
mm
|
0.2-0.6
|
0.2-0.6
|
0.2-0.6
|
|
|
Permeability(Q50)
|
L/m2/s≥
|
20
|
13
|
15
|
|
|
UV-resistance(500HRS strength retention)
|
%≥
|
90
|
80
|
80
|
|
Primary Applications
-
Marine and Port Dredging: Collecting soft coastal harbor mud and contaminated ship canal sediment directly from cutter suction dredgers to clear fairways.
-
Fly Ash Containment: Encapsulating coal-fired power plant waste and wet ash slurry, converting fluid hazardous materials into manageable solid blocks.
-
Paper and Pulp Mills: Dewatering highly fibrous industrial process sludge, minimizing water content before the organic residue enters pressing lines.
-

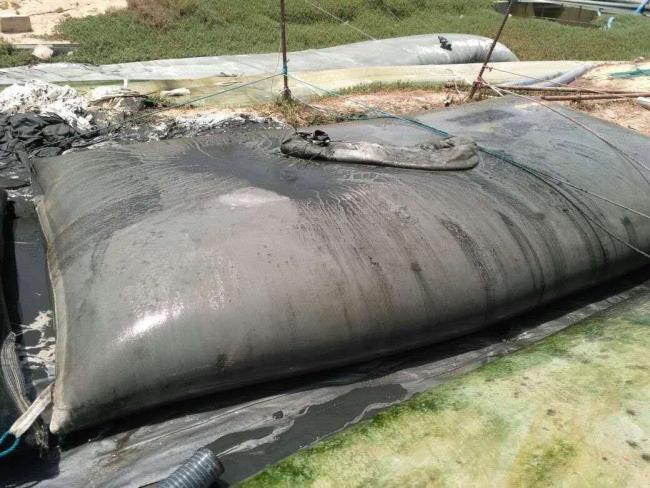

Palm Oil Mill Sludge Dewatering: Pumping thick wastewater (POME) from palm oil mills into the tubes to trap the oily organic solids, allowing clear water to drain out and recycling the dried solids as organic fertilizer.
-
Beach Erosion Restoration: Filling large fabric containers with native offshore sand to build heavy structural breakwater dikes that break wave energy.
Why choose us
-
Big Factory & Heavy Duty Machines: Our factory has wide-width weaving machines to make extra-strong fabrics, meaning we can finish your bulk orders fast and without fabric breaking.
-
Strong Double-Stitched Seams: We use heavy industrial sewing machines and strong threads to double-stitch every edge, so the tube seams will not burst open when pumping thick mud under pressure.
-
Sun & Acid Protection: We add high-quality carbon black to the plastic raw material, so these tubes can sit out in the hot sun and muddy chemical water for months without rotting or cracking.
-
Direct Factory Price & Custom Sizes: Because you are buying straight from our factory, you get the best wholesale price and we can stitch the tubes into any width or length your project needs.
FAQ
Q1:What is the main benefit of using a PP Geotextile Tube over mechanical filter presses?
A: This specialized dewatering bag provides a far more cost-effective method for large-volume sludge dewatering, utilizing gravity and hydraulic pressure instead of continuous electricity and high maintenance costs.
Q2:Are you manufacturer or trading company?
A: We are manufacturer.
Q3:Which country did you export?
A: Our products have been exported to more than 20 countries all over the world, including USA, Canada, Poland, Switzerland, Japan, Southeast Asia, The Middle East, Africa, Australia etc.
Q4: What is your MOQ?
A: Normally, our MOQ is 20' container. But we could accept LCL for first trial order.
