Copper Tinned 10 20 22 AWG Tefzel Wire for Sale
Copper Tinned 10 20 22 AWG Tefzel Wire for Sale
Application for Tefzel Wire
1. Aviation Wiring
2. Aerospace Wiring
3. Nuclear Cables
4. Electronics Wiring
5. Medical Wiring
6. Appliance Wiring
Features of Tefzel Wire:
1. Excellent mechanical strength and toughness
2. Good resistance to heat and chemicals
3. High specific dielectric strength
4. Oil, flame, and radiation resistance
Properties of Tefzel Wire
Nominal Voltage: AC 600V
Temperature Range: -65ºC to 150ºC

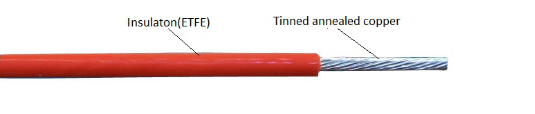

Conductor: Tinned copper
Insulation: Tefzel ETFE Insulation
O.D.Tolerance :±0.05mm
Color:black-brown-red-orange-yellow-green-blue-violet-gray-white-transparent.ect
| Wire gauge | Section area (mm2) |
Conductor construction piece/diameter (mm) |
Reference OD (mm) |
Max. Conductor resistance at 20℃ (Ω/Km) |
Reference weight kg/km |
||
| FF40 | FF40P11-1 | FF40 | FF40P11-1 | ||||
| 26awg | 0.14mm2 | 19/0.1 | 1.02 | 1.52 | 136 | 2.66 | 6.64 |
| 24awg | 0.2mm2 | 19/0.12 | 1.14 | 1.64 | 90.4 | 3.82 | 8.17 |
| 22awg | 0.4/0.3mm2 | 19/0.16 | 1.32 | 1.85 | 53.1 | 5.48 | 10.4 |
| 20awg | 0.6/0.5mm2 | 19/0.2 | 1.52 | 2.02 | 32.4 | 7.98 | 13.5 |
| - | 0.75mm2 | 19/0.23 | 1.7 | 2.2 | 24.6 | 9.99 | 16.1 |
| 18awg | 1mm2 | 19/0.26 | 1.8 | 2.3 | 20.4 | 11.7 | 18.1 |
| 16awg | 1.2mm2 | 19/0.28 | 2.01 | 2.51 | 16.6 | 14.8 | 21.8 |
| - | 1.5mm2 | 19/0.32 | 2.25 | 2.75 | 12.7 | 18.2 | 25.9 |
| 14awg | 2mm2 | 19/0.36 | 2.36 | 2.86 | 10 | 22.2 | 30.3 |
| - | 2.5mm2 | 37/0.37 | 2.78 | 3.31 | 7.43 | 30.4 | 39.9 |
| 12awg | 3mm2 | 37/0.32 | 2.9 | 3.43 | 6.63 | 33.6 | 43.4 |
| - | 4mm2 | 37/0.37 | 3.38 | 3.91 | 4.88 | 45.4 | 56.7 |
| 10awg | 5mm2 | 37/0.4 | 3.53 | 4.06 | 4.13 | 52.2 | 64 |
| - | 6mm2 | 37/0.45 | 4.05 | 4.58 | 3.3 | 65.6 | 79 |
|

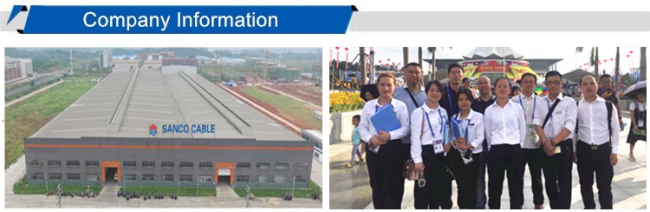

Factory Shenzhou Special cable is a reputed manufacturer of military and consumer cables.Our main products: 1.High temperature wires,PTFE wire,ETFE wire,PFA wire,FEP wire 2.Robot cable,TPE cable,PUR cable,TPU cable 3.Hook up wire,electronic wire 4.Control cable,power cable and so on |
Team To meet customer's demand,we have: 1.Advanced R&D staff 2.Professional transport team 3.High-quality engineering installtion team 4.Professional talented technicians group 5.International sales department:6 person 6.Domestic sales:15 person 7.QC team |
|

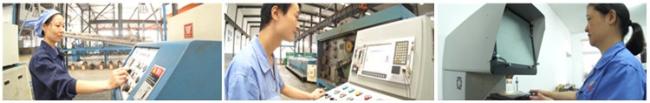

Workshop 1.Production line:9 line 2.Month production capacity:90000m 3.Production workers:about 250 persons 3.Annual production capacity:RMB20million 4.Advanced electrical,chemical and mechanical properties test equipment
|

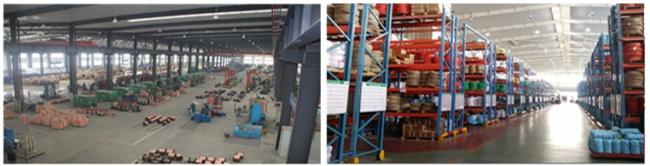

Warehouse More than 600 square meters finished product warehouse.T The cable materials produced by ourselves. 1.Low smoke zero halogen compounds 2.Xlpe compound 3.Soft PVC compound for cable insulation or sheath
|
Product test
We focus on quality, Over the past years, our company serously carries out its responsibility for product quality,guarantees repair,replacement and return for product that has quality problem during manufacture,and compensates for direct economic loss caused by quality problem.
In the past years,We participated in the Middle East Electricity Exhibition in Dubai,China-ASEAN Exposition,Power-Gen India....More than 20 years experience in cable production,hope that our profession and high quality service will bring you success and satisfied purchasing experience.
Awards and Merits
We are a stable wire and cable supplier of China's aerospace and military,Customer satisfition is our primay aim.More details pls refer to below form:
|
No. |
Item |
Faulty Products |
Our products |
|
1. |
Length |
Insufficient length |
Sufficient |
|
2. |
Wire drawing |
thick at both ends and thin in the middle |
Same from beginning to end |
|
3. |
Conductor |
copper clad aluminum ,Copper clad brass |
99.999% pure copper |
|
4. |
Insulation |
Recycled compound |
Virgin compound |
|
If you want to know how to identify,welcome click here |
|||
Our Service
1. Free technical consultation service before, during, and after sales,help customers to choose right product
2. Free sample and design services
3. Fee service for any special monitor and conduct detection during manufacture process
4. Provide 100% free insurance for internal transportation;
5. Accept OEM/ODM
6. Small MOQ

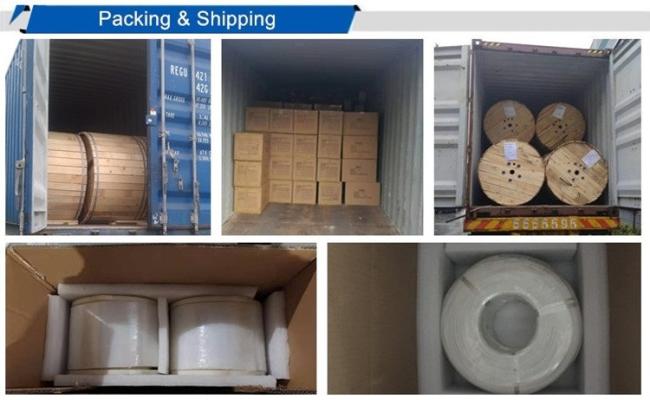

Packaging of Copper Tinned 10 20 22 AWG Tefzel Wire for Sale
1• Plyethylene film winding in roll with non-woven bag or carton box
2• Packing in carton box with plastic tray
3• Wooden drums,fumigated wooden drums,Wooden iron drums
1).Q:Are you a manufacturer or trading company?
A:We are a professional manufacturer,research,development and sales of military and consumer cable wire and cable compound.The company is located in Hunan Province,China
2).Q:What is your company's strengths?
A:We are a stable wire and cable supplier of China's aerospace and military,21 years experience in special wire field,cable compounds produced by ourselves,This is how we keep superior quality and competitive offers for global valued customers.
3).Q:How do you guarantee your product quality?
A:Quality is our priority,we treat quality control as the first most important thing from the very beginning to the very end.In design,materials procurement,manufacturing semi-finished products testing,finished product inspection such as strick control to ensure product quality.
4).Q:What's the warranty of your products?
A:We provide 1 year complete warranty service,If the products have quality problems,We plant to replace or return unconditionally.
