China Supply 3 Core 2.5mm PVC Electrical H05VV-F Cable Wire
China Supply 3 Core 2.5mm PVC Electrical H05VV-F Cable Wire Prices
Specification:
• Sample free • 100% pure copper • 100% virgin cable compound
• Fast delivery time • Reasonable price • More than 20 years experience

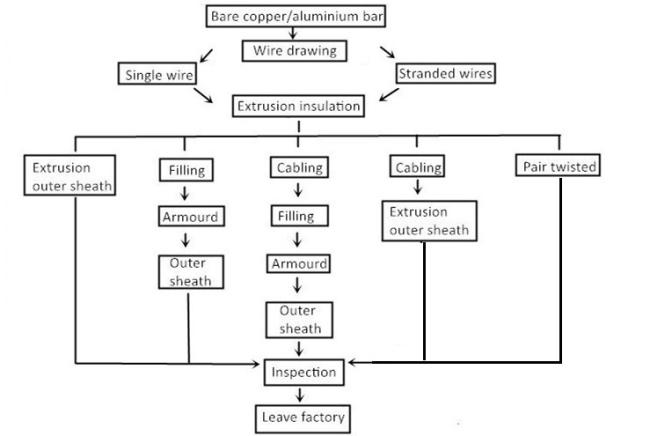

Process Flow:
Application:
These types of cables are designed for medium mechanical stress (washing machines etc.), as connecting cables in houselholds as well as office appliances. The cables can be used for ovens, fans and heaters but direct contact with hot surfaces must be avoided. The cables are also suitable for moist areas.

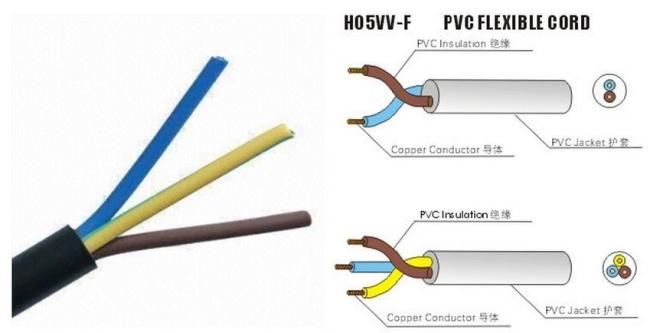

Cable Structure for H05VV-F Cable:
1.Conductor:Flexible annealed copper wire stranded (class 5 )
2.Insulation and Sheath:PVC (Polyvinyl Chloride) Compound
3.Colour of Insulation:green,red,white,yellow,blue,black,brown or other colours
4.Sheath Color: Black ,white
Working Condition for H05VV-F Cable:
1.Temperature range: flexing from +5 °C to +70 °C fixed from -30 °C to +70 °C -
2.Nominal voltage Uo/U 300/500 V
3.Test voltage a.c. 2000 V
4.Minimal inner bending radius: 4D for D < 8 mm,5D for 8 - 12 mm,6D for D > 12 mm
Similar Products:
H05V-U H05V-R H05V-K H07V-R H07V-U H07V-K
Specification for H05VV-F Cable :
|
Cores x Cross section area |
Kind of conductor |
Strands conductor max. diameter |
Nominal Insulation thickness |
Nominal sheath thickness |
External diameter min-max. mm |
Conductor resistance at 20 ℃ |
resistance of insulation at 70 ℃ |
| H05VV-F 2X0.75 | Class 5 | 0.21 | 0.6 | 0.8 | 5.7-7.2 | 26 | 0.011 |
| H05VV-F 2X1 | Class 5 | 0.21 | 0.6 | 0.8 | 5.9-7.5 | 19.5 | 0.01 |
| H05VV-F 2X1.5 | Class 5 | 0.26 | 0.7 | 0.8 | 6.8-8.6 | 13.5 | 0.01 |
| H05VV-F 2X2.5 | Class 5 | 0.26 | 0.8 | 1 | 8.4-10.6 | 7.98 | 0.009 |
| H05VV-F 2X4 | Class 5 | 0.31 | 0.8 | 1.1 | 9.7-12.1 | 4.95 | 0.007 |
| H05VV-F 3X0.75 | Class 5 | 0.21 | 0.6 | 0.8 | 6.0-7.6 | 26 | 0.011 |
| H05VV-F 3X1 | Class 5 | 0.21 | 0.6 | 0.8 | 6.3-8.0 | 19.5 | 0.01 |
| H05VV-F 3X1.5 | Class 5 | 0.26 | 0.7 | 0.9 | 7.4-9.4 | 13.5 | 0.01 |
| H05VV-F 3X2.5 | Class 5 | 0.26 | 0.8 | 1.1 | 9.2-11.4 | 7.98 | 0.009 |
| H05VV-F 3X4 | Class 5 | 0.31 | 0.8 | 1.2 | 10.5-13.1 | 4.95 | 0.007 |
| H05VV-F 4X0.75 | Class 5 | 0.21 | 0.6 | 0.8 | 6.6-8.3 | 26 | 0.011 |
| H05VV-F 4X1 | Class 5 | 0.21 | 0.6 | 0.8 | 7.1-9.0 | 19.5 | 0.01 |
| H05VV-F 4X1.5 | Class 5 | 0.26 | 0.7 | 1 | 8.4-10.5 | 13.5 | 0.01 |
| H05VV-F 4X2.5 | Class 5 | 0.26 | 0.8 | 1.1 | 10.1-12.5 | 7.98 | 0.009 |
| H05VV-F 4X4 | Class 5 | 0.31 | 0.8 | 1.2 | 11.5-14.3 | 4.95 | 0.007 |
| H05VV-F 5X0.75 | Class 5 | 0.21 | 0.6 | 0.9 | 7.4-9.3 | 26 | 0.011 |
| H05VV-F 5X1 | Class 5 | 0.21 | 0.6 | 0.9 | 7.8-9.8 | 19.5 | 0.01 |
| H05VV-F 5X1.5 | Class 5 | 0.26 | 0.7 | 1.1 | 9.3-11.6 | 13.5 | 0.01 |
| H05VV-F 5X2.5 | Class 5 | 0.26 | 0.8 | 1.2 | 11.2-13.9 | 7.98 | 0.009 |
| H05VV-F 5X4 | Class 5 | 0.31 | 0.8 | 1.4 | 13.0-16.1 | 4.95 | 0.007 |
|

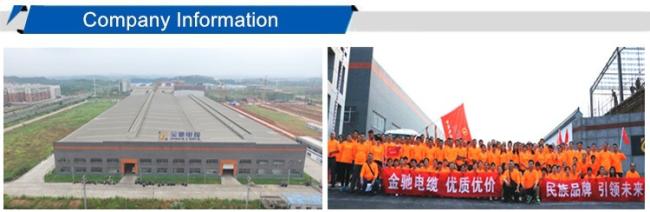

Factory Shenzhou Special cable is a reputed manufacturer of military and consumer cables.Our main products: 1.High temperature wires cables,PTFE cable,FEP cable,Fluoroplastic wire 2.Rubber cable,welding cable,Mine cable,submersible cable 3.Hook up wire,electronic cable 4.Salor cable,control cable,power cable and so on |
Team To meet customer's demand,we have: 1.Advanced R&D staff 2.Professional transport team 3.High-quality engineering installtion team 4.Professional talented technicians group 5.International sales department:6 person 6.Domestic sales:15 person 7.QC team |
|
Workshop 1.Production line:9 line 2.Month production capacity:90000m 3.Production workers:about 250 persons 3.Annual production capacity:RMB20million 4.Advanced electrical,chemical and mechanical properties test equipment
|
Warehouse More than 600 square meters finished product warehouse.Xiangtan shenzhou special cable CO., ltd also engaged in 1.Low smoke zero halogen compounds 2.Xlpe compound 3.Soft PVC compound for cable insulation or sheath
|
Product test
We focus on quality, Over the past years, our company serously carries out its responsibility for product quality,guarantees repair,replacement and return for product that has quality problem during manufacture,and compensates for direct economic loss caused by quality problem.
In the past years,We participated in the Middle East Electricity Exhibition in Dubai,China-ASEAN Exposition,Power-Gen India....More than 20 years experience in cable production,hope that our profession and high quality service will bring you success and satisfied purchasing experience.
Awards and Merits
We are a stable wire and cable supplier of China's aerospace and military,Customer satisfition is our primay aim.More details pls refer to below form:
|
No. |
Item |
Faulty Products |
Our products |
|
1. |
Length |
Insufficient length |
Sufficient |
|
2. |
Wire drawing |
thick at both ends and thin in the middle |
Same from beginning to end |
|
3. |
Conductor |
copper clad aluminum ,Copper clad brass |
99.999% pure copper |
|
4. |
Insulation |
Recycled compound |
Virgin compound |
|
If you want to know how to identify,welcome click here |
|||
Our Service
1.Free technical consultation service before, during, and after sales,help customers to choose right product
2.Free sample and design services
3.Fee service for any special monitor and conduct detection during manufacture process
4.Provide 100% free insurance for internal transportation;
5.OEM & ODM is welcome
6.Small order can be supplied
|

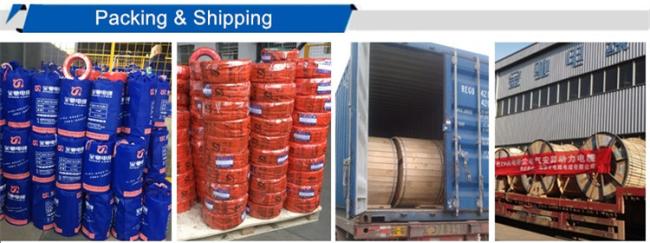

100m/coil with non-woven bag |
200m/Roll with film | 500m with wooden drum |
800m with wooden iron drum |
Packaging of wire
1• Plyethylene film winding in roll with non-woven bag or carton box for small diameter wires(100m/roll)
2• Packing in drum with plastic tray(300m/drum)
3• Wooden drums,fumigated wooden drums,Wooden iron drums for large diameter cable(500/drum)
1).Q:Are you a manufacturer or trading company?
A:We are a professional manufacturer,research,development and sales of military and consumer cable wire and cable compound.The company is located in Hunan Province,China
2).Q:What is your company's strengths?
A:We are a stable wire and cable supplier of China's aerospace and military,21 years experience,cable compounds produced by ourselves,This is how we keep superior quality and competitive offers for global valued customers.
3).Q:How do you guarantee your product quality?
A:Quality is our priority,we treat quality control as the first most important thing from the very beginning to the very end.In design,materials procurement,manufacturing semi-finished products testing,finished product inspection such as strick control to ensure product quality.
4).Q:What's the warranty of your products?
A:We provide 1 year complete warranty service,If the products have quality problems,We plant to replace or return unconditionally.
