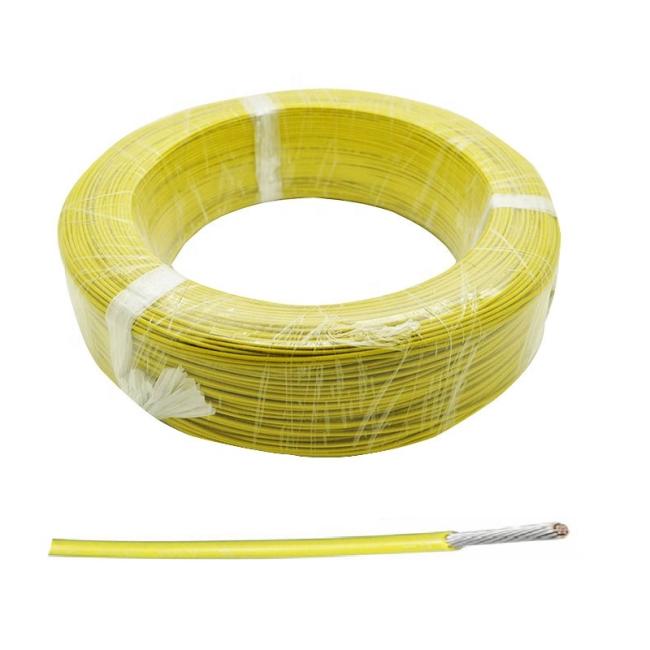

300V Tinned FEP Insulated Wire 22 Awg Silver Plated Copper Wire
22Awg Tinned Copper Wire,high temperature Coated High Temperature Wire
FEP wire is a type of fluoroplastic insulated wire,It has very similar properties to PTFE and PFA such as low friction and non-reactivity to chemicals.
Applications
1. Internal wiring for electronic devices, information devices, etc.
2. Wiring for use near furnaces and engines which reach high temperatures
3. Secondary lead wires for general equipment
4. Wiring in environments with high and low temperatures
Properties
1. Operating Temperature: -65°C to +200℃
2. Voltage Rating: AC 600V or below
3. Insulation:FEP insulated
4. Conductor:Tinned or Silver plated copper wire
| Type |
| FEP insulation Silver plated copper conductor lead wire |
| FEP insulation Tinned copper conductor lead wire |
| FEP insulation Tinned or silver coated copper conductor shielding lead wire |
| FEP insulation Tinned or silver coated stranded copper twisted lead wire |
| FEP insulation Tinned or silver coated stranded copper twisted shield lead wire |
| Wire gauge | Cross-section area | Conductor structure | Max. OD of cable(mm) | |||
| AF-200 | AFP-200 | |||||
| AF-200-1 | ||||||
| AWG | mm2 | mm | 250V | 600V | 250V | 600V |
| 36AWG | 0.013mm2 | 7/0.05 | 0.65 | 0.85 | 1.1 | 1.3 |
| 32AWG | 0.035mm2 | 7/0.08 | 0.75 | 0.95 | 1.2 | 1.4 |
| 30AWG | 0.05mm2 | 7/0.10 | 0.85 | 1.05 | 1.35 | 1.6 |
| 28AWG | 0.07mm2 | 7/0.12 | 0.9 | 1.1 | 1.4 | 1.65 |
| - | 0.1mm2 | 7/0.14 | 1 | 1.2 | 1.55 | 1.75 |
| 26AWG | 0.14mm2 | 7/0.16 | 1.1 | 1.3 | 1.65 | 1.95 |
| 24AWG | 0.2mm2 | 19/0.12 | 1.2 | 1.4 | 1.75 | 1.98 |
| - | 0.3mm2 | 7/0.23 | 1.25 | 1.48 | 1.8 | 2.05 |
| 22AWG | 0.35/0.40mm2 | 19/0.16 | 1.4 | 1.6 | 1.95 | 2.2 |
| 20AWG | 0.5mm2 | 19/0.18 | 1.6 | 1.8 | 2.2 | 2.4 |
| - | 0.6mm2 | 19/0.20 | 1.75 | 1.98 | 2.3 | 2.5 |
| - | 0.75/0.80mm2 | 19/0.23 | 1.8 | 2.1 | 2.4 | 2.6 |
| 18AWG | 1mm2 | 19/0.26 | 2 | 2.2 | 2.6 | 2.9 |
| 16AWG | 1.2mm2 | 19/0.28 | 2.2 | 2.4 | 2.8 | 3.1 |
| - | 1.5mm2 | 19/0.32 | 2.4 | 2.6 | 3.1 | 3.3 |
| 14AWG | 2mm2 | 19/0.37 | 2.7 | 2.9 | 3.4 | 3.6 |
| - | 2.5mm2 | 37/0.30 | 3.4 | 3.6 | 4.2 | 4.4 |
| 12AWG | 3mm2 | 37/0.32 | 3.6 | 3.8 | 4.4 | 4.6 |
| - | 4mm2 | 37/0.37 | 4 | 4.2 | 4.8 | 5.1 |
| 10AWG | 5mm2 | 37/0.41 | 4.5 | 4.7 | 5.3 | 5.6 |
| - | 6mm2 | 37/0.45 | 4.8 | 5 | 5.7 | 5.9 |
| 8AWG | 8mm2 | 133/0.28 | 6 | 6.5 | 6.8 | 7.3 |
Noted:Specification and core no. are not limited to above regulation,they could be customized.
