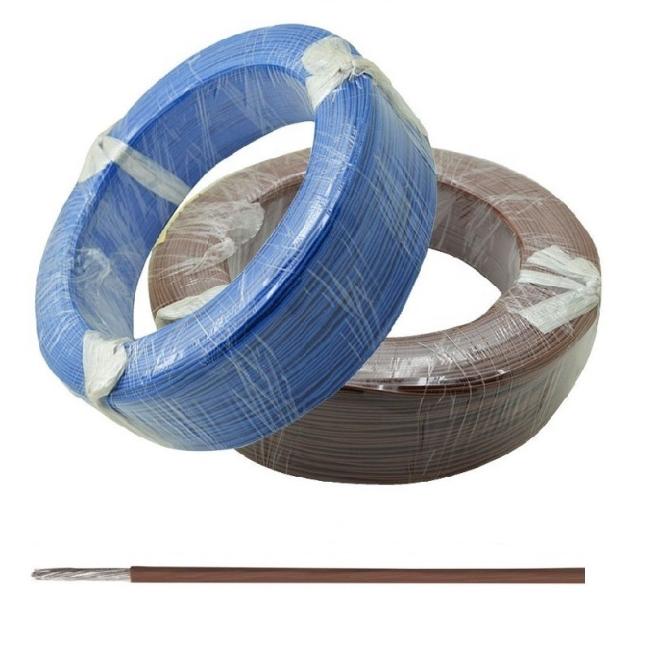

Anti Corrosion FEP Insulated Wire 26 AWG high temperature Wire Blue Color
26awg Single Core Heat Resistant FEP Insulated Hook Up Wire
1. FEP wire corrosion resistance is exactly on par with PTFE’s. As a result, it stands up to caustic agents in the same way. Its pure carbon-fluorine structure and its fluorination enable it to resist corrosive situations. In particular, FEP coated cable withstands exposure to detergents far better than PTFE does.
2. Electrically speaking, only PFA outdoes FEP wire. That means the material has one of the highest dielectric strengths available. At the same time, FEP dissipates at a rate that is six times that of PFA. The end result is that FEP better conducts electrostatic fields non-linearly.
3.When cable leads are made of FEP, they exhibit outstanding chemical, fluid, age, and ozone resistance.
4.If you have welding requirement on wire’s connection,Tinned Copper FEP wires are recommendated
Applications
It is mainly used for internal connection of electronic equipment, instrument circuit and other precision electrical equipment under high and low temperature conditions
Properties
1. Rated voltage: 600V
2. Working temperature: -65 ~ +200 ° C
3. Conductor: solid core or stranded silver plated copper wire
4. Insulation: FEP high temperature
5. Color: red/yellow/blue/white/black/yellow green /brown etc.
| Section area (mm2) |
Conductor construction piece/diameter (mm) |
Insulation thickness (mm) |
Outer diameter (mm) |
Max. Conductor resistance at 20℃ (Ω/Km) |
Packing length (m) |
| 0.014mm2 | 7/0.05 | 0.15 | 0.45 | 1454 | 500 |
| 0.035mm2 | 7/0.08 | 0.15 | 0.6 | 568 | 500 |
| 0.05mm2 | 7/0.1 | 0.15 | 0.6 | 356 | 500 |
| 0.08mm2 | 7/0.12 | 0.2 | 0.76 | 245 | 500 |
| 0.12mm2 | 7/0.15 | 0.25 | 0.85 | 163 | 500 |
| 0.2mm2 | 7/0.2 | 0.25 | 1.1 | 90.4 | 200 |
| 0.35mm2 | 19/0.16 | 0.25 | 1.3 | 53.1 | 200 |
| 0.5mm2 | 19/0.18 | 0.25 | 1.4 | 40.1 | 200 |
| 0.75mm2 | 19/0.23 | 0.25 | 1.7 | 24.6 | 200 |
| 1mm2 | 19/0.26 | 0.25 | 1.8 | 20.4 | 200 |
| 1.2mm2 | 19/0.28 | 0.3 | 2 | 16.6 | 200 |
| 1.5mm2 | 19/0.32 | 0.3 | 2.2 | 12.7 | 200 |
| 2mm2 | 19/0.37 | 0.3 | 2.45 | 10 | 100 |
| 2.5mm2 | 19/0.41 | 0.4 | 2.95 | 7.43 | 100 |
| 4mm2 | 37/0.37 | 0.4 | 3.4 | 4.88 | 100 |
| 6mm2 | 37/0.45 | 0.5 | 4.2 | 3.3 | 100 |
| 8mm2 | 133/0.28 | 0.5 | 5.2 | 2.3 | 100 |
| 10mm2 | 133/0.32 | 0.5 | 5.8 | 1.82 | 100 |
| 16mm2 | 133/0.39 | 0.6 | 7 | 1.22 | 100 |
| 20mm2 | 133/0.45 | 0.6 | 8 | 0.919 | 100 |
| 25mm2 | 196/0.4 | 0.6 | 8.8 | 0.795 | 100 |
| 35mm2 | 494/0.3 | 0.7 | 10.4 | 0.565 | 100 |
| 50mm2 | 396/0.4 | 0.8 | 12.2 | 0.393 | 100 |
| 70mm2 | 551/0.4 | 1 | 14.6 | 0.277 | 100 |
| 95mm2 | 760/0.4 | 1.2 | 17.2 | 0.21 | 100 |
Noted:Specification and core no. are not limited to above regulation,they could be customized.
