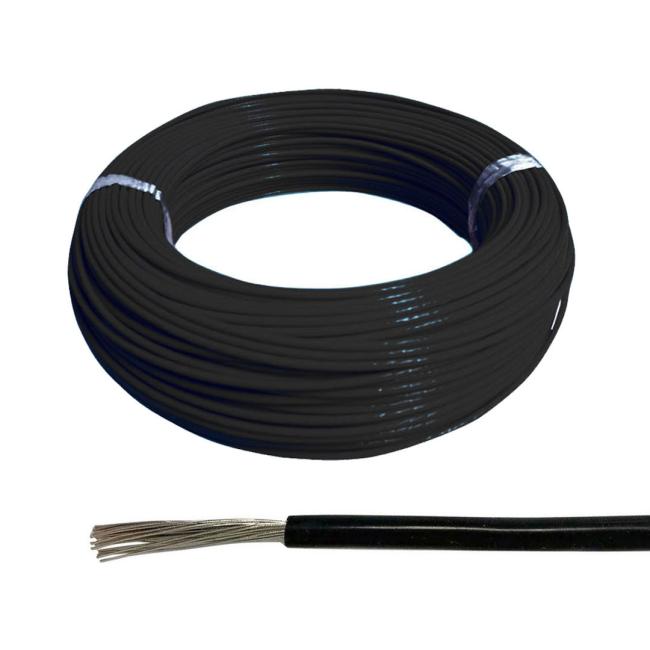

Electrical ETFE Insulated Wire Stranded Tinned Copper Wire 150C 600V
150C 600V Tinned Plated ETFE Copper Electrical Heating Wire
ETFE Insulated Wire Features:
1. Small diameter saves space
2. Excellent low temperature characteristics
3. Excellent electric characteristics,mechanical strength heat resistance, chemical resistance, and flame resistance.
4. ETFE insulated wire offers a higher tensile and impact strength than PTFE as well as greater dielectric strength and radiation resistance.
5. Oil, flame, and radiation resistance
Application:
1. In the electronic industry, it can be used for temperature compensation wire, low temperature resistance wire, high temperature heating wire, aging resistance wire and flame retardant wire.
2. In household appliance industry, it can be used for internal wiring of air conditioner, microwave oven, electronic disinfection cabinet, computer rice cooker, electronic hot water bottle, electric heater, electric oven, electric frying pan, lamps and lanterns, etc.
Properties:
Color: Yellow, Red, Purple, Green, Brown, Transparent, Grey, Blue, Orange, White, Black...
Operating Temperature: -65°C to +150℃
Voltage Rating: AC 600V or Below
Insulated: ETFE high temperature Insulation
Conductor: Tinned copper wire (or bare copper, Silver Plated Copper)
Insulation Resistance(20℃): ≥100MΩ.km
| Cross-section area (mm²) |
Conductor (mm) |
Reference outerdiameter (mm) |
Reference weight kg/km |
Max.DC resistance at 20℃ (Ω/Km) |
| FF40-1 | FF40-1 | |||
| 0.14 | 19/0.1 | 1.02 | 2.66 | 136.0 |
| 0.2 | 19/0.12 | 1.14 | 3.82 | 90.4 |
| 0.4/0.3 | 19/0.16 | 1.32 | 5.48 | 53.1 |
| 0.6/0.5 | 19/0.2 | 1.52 | 7.98 | 32.4 |
| 0.75 | 19/0.23 | 1.70 | 9.99 | 24.6 |
| 1.0 | 19/0.26 | 1.80 | 11.70 | 20.4 |
| 1.2 | 19/0.28 | 2.01 | 14.80 | 16.6 |
| 1.5 | 19/0.32 | 2.25 | 18.20 | 12.7 |
| 2.0 | 19/0.36 | 2.36 | 22.20 | 10.0 |
| 2.5 | 37/0.3 | 2.78 | 30.40 | 7.43 |
| 3.0 | 37/0.32 | 2.90 | 33.60 | 6.63 |
| 4.0 | 37/0.37 | 3.38 | 45.40 | 4.88 |
| 5.0 | 37/0.4 | 3.53 | 52.20 | 4.13 |
| 6.0 | 37/0.45 | 4.05 | 65.60 | 3.30 |
