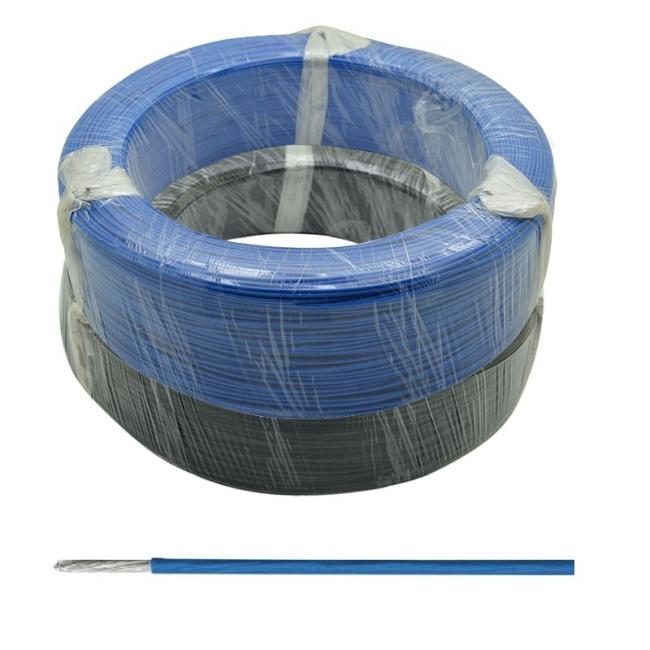

Various Colors ETFE Insulated Wire High Temp Lead Wire 150 Degree
high temperature Lead Wire,High Temp ETFE Insulation 150 Degree Wires
About ETFE insulation Wires
1. With excellent flame retardant, aging resistance, long service life
2. Excellent electrical insulation performance, high voltage resistance, low high-frequency loss, no moisture absorption, high insulation resistance.
3. Excellent corrosion resistance, almost insoluble in any organic solvent, oil resistance, strong acid, strong alkali, strong oxidant.
Application
In household appliance industry, it can be used for internal wiring.
In the electronic industry, it can be used for temperature compensation wire, low temperature resistance wire, high temperature heating wire, aging resistance wire and flame retardant wire.
Properties
1. Wire Insulation: ETFE insulated
2. Wire Conductor: Tined copper wire(Solid or Stranded)
3. Working temperature :-65~+150 degree
4. Rated voltage :AC 600V or below
5. Insulation resistance(20 ℃) : not less than 100 m Ω. Km
6.Voltage test (AC) : insulation wire 2200V/1min, shielding wire 1500V/30S no breakdown
| Wire gauge | Section area (mm2) |
Conductor construction piece/diameter (mm) |
Insulation thickness (mm) |
Reference OD (mm) |
Max. Conductor resistance at 20℃ (Ω/Km) |
| 28awg | 0.08mm2 | 7/0.12 | 0.15 | 0.66 | 239 |
| 26awg | 0.14mm2 | 7/0.16 | 0.15 | 0.78 | 239 |
| 24awg | 0.2mm2 | 7/0.2 | 0.15 | 0.9 | 150 |
| 22awg | 0.4/0.3mm2 | 19/0.16 | 0.15 | 1.1 | 94.2 |
| 20awg | 0.6/0.5mm2 | 19/0.2 | 0.15 | 1.3 | 32.4 |
| 18awg | 1mm2 | 19/0.26 | 0.2 | 1.7 | 20.4 |
| 16awg | 1.2mm2 | 19/0.28 | 0.2 | 1.8 | 16.6 |
| 14awg | 2mm2 | 19/0.36 | 0.33 | 2.46 | 10 |
| 12awg | 3mm2 | 37/0.32 | 0.33 | 2.9 | 6.63 |
| 10awg | 5mm2 | 37/0.4 | 0.33 | 3.46 | 4.13 |
