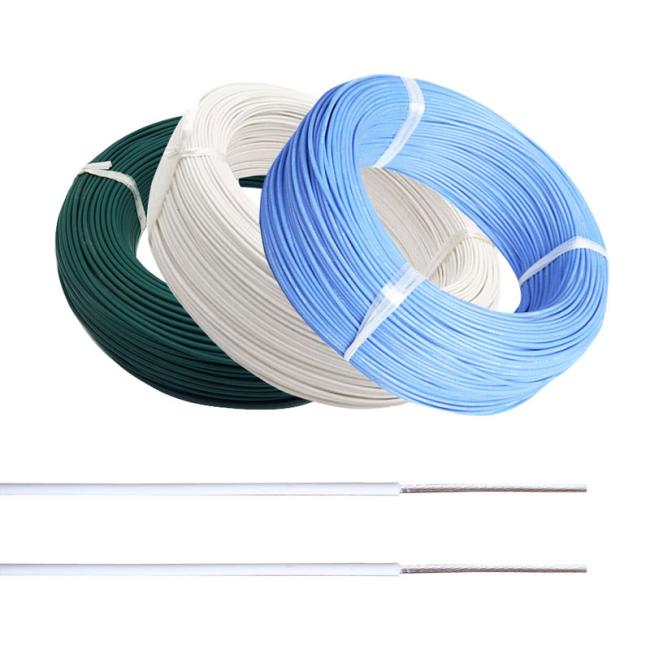

12 AWG PFA Insulated Wires High Voltage Heat Resistance Single Multi Cores
PFA Insulated High Voltage Heat Resistance Electrical Cabling Wires
Applications:
Used for Household appliances, Precision equipment, PTC thermistors, Temperature sensor, automotive internal connection, electronic and electrical appliances etc.
Features:
1. High temperature resistance
2. Low temperature resistance
3. Corrosion resistance
4. Resistance to all kinds of mold
5. Aging resistance
6. High flame retardant
7. Good softness and other characteristics
Using Condition
1. Rated voltage: AC600V and Below
2. Working temperature: -65℃~+250℃
3. Insulation resistance is not less than 1x103MΩ
4. Wire relative humidity: 95%±3.
5. Test Voltage: (Under AC 50Hz )2000V/5min
| type | Name | ||||
| AFK-250 | PFA Insulated silver plated high temperature wire | ||||
| AFKP-250 | PFA Insulated silver plated shielded high temperature wire | ||||
| Section area (mm2) |
Wire gauge AWG |
Conductor construction piece/diameter (mm) |
Insulation thickness (mm) |
Outer diameter (mm) |
Max. Conductor resistance at 20℃ (Ω/Km) |
| 0.05mm2 | 30AWG | 7/0.1mm | 0.2mm | 0.7mm | 376.2 |
| 0.2mm2 | 24AWG | 7/0.2mm | 0.30 | 1.2mm | 83.5 |
| 0.35mm2 | 22AWG | 19/0.16mm | 0.35mm | 1.4mm | 49.5 |
| 0.5mm2 | 20AWG | 19/0.18mm | 0.35mm | 1.6mm | 36.7 |
| 1mm2 | 18AWG | 19/0.26mm | 0.35mm | 2mm | 19 |
| 1.2mm2 | 16AWG | 19/0.28mm | 0.35mm | 2.1mm | 15.3 |
| 2mm2 | 14AWG | 19/0.37mm | 0.4mm | 2.65mm | 9.45 |
| 8mm2 | 8AWG | 133/0.28mm | 0.5mm | 5.2mm | 2.16 |
| 20mm2 | 4AWG | 133/0.45mm | 0.6mm | 8.0mm | 0.886 |
