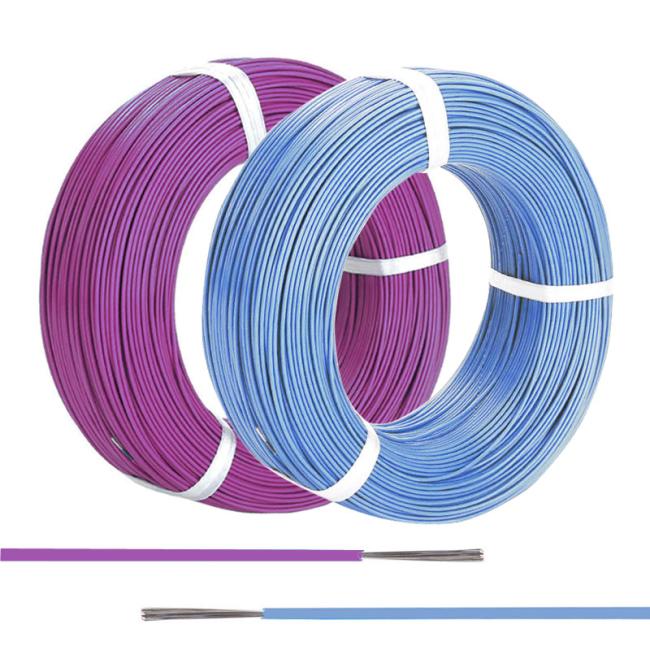

600V ETFE Insulated Wire Single Wire Cable For Electronic Equipment
Good Temperature Resistance high temperature ETFE Coated Single Wire Cable
Application:
ETFE insulated wires widely applied in aviation, metallurgy and pertroleum industry as well as applied in other products such as: electronic instrument & device, electrical applicance, leads for transformer & electrical motor.
Features:
1. Small diameter saves space
2. Excellent electric characteristics,mechanical strength heat resistance, chemical resistance, and flame resistance, low temperature characteristics.
3. High specific dielectric strength
4. Excellent corrosion resistance, almost insoluble in any organic solvent, oil resistance, strong acid, strong alkali, strong oxidant.
Properties:
Insulation: Etfe high temperature Insulated
Conductor Material: Tinned or Silver Plated Copper
Conductor Type: Stranded
Operating Temperature: -65 Degree ~ +150/200Degree
Voltage Rating: 600V or Lower
Insulation Resistance(at 20℃): ≥100MΩ.km
Available Colors: Purple, Red, Green, Brown, Grey, Blue, White, Yellow, Black and etc..
| Cross-section area (mm²) |
Conductor (mm) |
Reference OD (mm) |
Reference weight kg/km |
Max.DC resistance at 20℃ (Ω/Km) |
| FF40-1 | FF40-1 | |||
| 0.14 | 19/0.1 | 1.02 | 2.66 | 136.0 |
| 0.2 | 19/0.12 | 1.14 | 3.82 | 90.4 |
| 0.4/0.3 | 19/0.16 | 1.32 | 5.48 | 53.1 |
| 0.6/0.5 | 19/0.2 | 1.52 | 7.98 | 32.4 |
| 0.75 | 19/0.23 | 1.70 | 9.99 | 24.6 |
| 1.0 | 19/0.26 | 1.80 | 11.70 | 20.4 |
| 1.2 | 19/0.28 | 2.01 | 14.80 | 16.6 |
| 1.5 | 19/0.32 | 2.25 | 18.20 | 12.7 |
| 2.0 | 19/0.36 | 2.36 | 22.20 | 10.0 |
| 2.5 | 37/0.3 | 2.78 | 30.40 | 7.43 |
| 3.0 | 37/0.32 | 2.90 | 33.60 | 6.63 |
| 4.0 | 37/0.37 | 3.38 | 45.40 | 4.88 |
| 5.0 | 37/0.4 | 3.53 | 52.20 | 4.13 |
| 6.0 | 37/0.45 | 4.05 | 65.60 | 3.30 |
