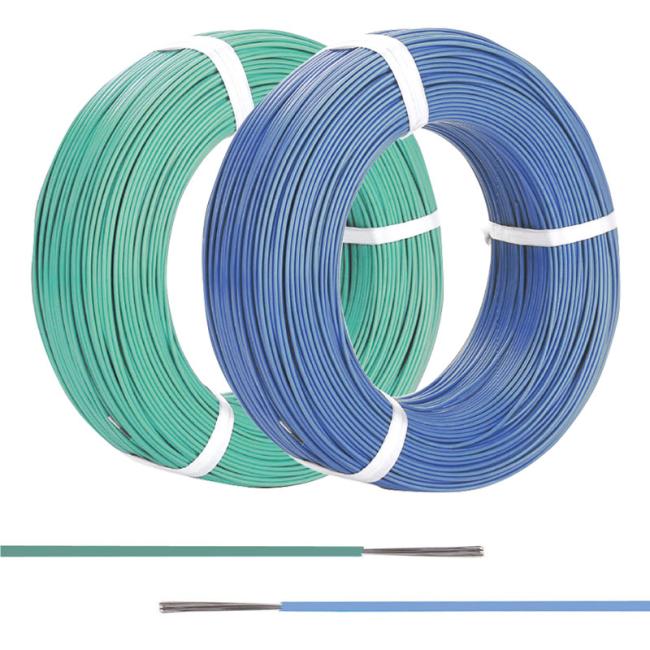

200 Degree Multifunction High Temperature Wires 12 Awg high temperature Coated
200 Degree high temperature Coated Tinned Copper Wire Heat Resistant Cable
high temperature PTFE: PTFE wire can be continuously used at 260°C, with a maximum service temperature of 290-300°C, very low coefficient of friction, good wear resistance and excellent chemical stability. ,
high temperature FEP: FEP wire with excellent chemical stability, excellent non-stick characteristics, the maximum operating temperature is 200℃.
high temperature PFA: PFA wire has higher continuous service temperature of 250℃, stronger toughness, especially suitable for use in high temperature anti-stick and chemical resistance applications
high temperature ETFE: ETFE wire is a copolymer of ethylene and tetrafluoroethylene with excellent chemical resistance and continuous operation at 150℃
Features:
1. Low frequency loss
2. No moisture absorption
3. Excellent flame resistance
4. High resistance of humidity
5. Aging resistance
6. Anti-interference
7. Corrosion resistant
8. Long service life
| Wire gauge (AWG) |
Section area (mm2) |
Conductor construction piece/diameter (mm) |
Insulation thickness (mm) |
Outer diameter (mm) |
Max. Conductor resistance at 20℃ (Ω/Km) |
Packing length (m) |
| 10awg | 5mm2 | 37x0.43mm | 0.33mm | 3.67 | 3.546 | 305 |
| 12awg | 3mm2 | 19x0.49mm | 0.33mm | 3.11 | 5.64 | 305 |
| 14awg | 2mm2 | 19x0.37mm | 0.33mm | 2.51 | 8.96 | 305 |
| 16awg | 1.2mm2 | 19x0.3mm | 0.33mm | 2.16 | 14.6 | 305 |
| 17awg | 19x0.26mm | 0.33mm | 1.96 | 18.3 | 305 | |
| 18awg | 1mm2 | 19x0.23mm | 0.33mm | 1.81 | 23.2 | 305 |
| 20awg | 0.5mm2 | 19x0.2mm | 0.33mm | 1.61 | 36.7 | 305 |
| 1x0.8mm | 0.33mm | 1.46 | 35.2 | 305 | ||
| 22awg | 0.3mm2 | 19x0.16mm | 0.33mm | 1.46 | 59.4 | 610 |
| 1x0.65mm | 0.33mm | 1.31 | 56.4 | 610 | ||
| 24awg | 0.2mm2 | 7x0.2mm | 0.33mm | 1.26 | 94.2 | 610 |
| 1x0.5mm | 0.33mm | 1.16 | 89.3 | 610 | ||
| 26awg | 0.12mm2 | 7x0.16mm | 0.33mm | 1.14 | 150 | 610 |
| 1x0.4mm | 0.33mm | 1.06 | 143 | 610 | ||
| 28awg | 0.08mm2 | 7x0.12mm | 0.33mm | 1.02 | 239 | 610 |
| 1x0.32mm | 0.33mm | 0.98 | 227 | 610 | ||
| 30awg | 0.06mm2 | 7x0.1mm | 0.33mm | 0.96 | 381 | 610 |
| 1x0.254mm | 0.33mm | 0.914 | 361 | 610 | ||
| 32awg | 0.035mm2 | 7x0.08mm | 0.41mm | 1.06 | 664.8 | 610 |
| 1x0.2mm | 0.41mm | 1.02 | 588.3 | 610 |
