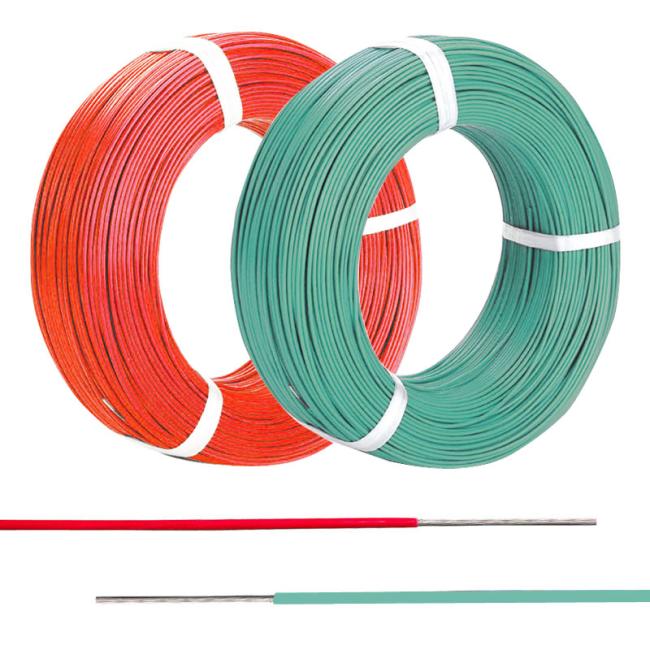

14 Gauge high temperature Silver Plated Copper Wire PTFE Insulation
Silver Plated Copper Equipment high temperature Wire, PTFE Insulation Cable
About PTFE wire
1. Polytetrafluoroethylene wires allow wiring systems to be used and operated in the most demanding of environments.
2. PTFE is resistant to lubricants and fuels, very flexible, plus it has excellent thermal and electrical properties.
PTFE insulated wire can be used in temperature compensating wire, low temperature-resist wire, high temperature heat wire, aging-resistance wire and fire-resist wire; household appliances industry, It can be used in air-conditioning equipment, micro-wave oven, electric disinfectant cupboard, electric cooker, electric thermos, electric heater, electric oven, lamps and lanterns in their inner wire and so on.
Features:
Good corrosion-resistance,almost doesn't melt any organic imp regnant, Oil-resistance, strong acid-resistance, strong alkali-resistance,oxidant-resistance and so on. bear the good electric insulated capability, high voltage-resist, moisture-resistance, high insulation resistance; flame-retardant, Anti-ageing, long age of usage.
Properties:
1. Rated voltage: 600V or Lower
2. Working temperature: -65 ~ +250℃
3. Conductor: Silver / Tinned Plated Copper Straned Wire
4. Insulated: Ptfe Insulation
5. Available Colors: Blue Red, Yellow, White, Black, Brown, Grey, Green, Purple...
| Silver coated copper conductor PTFE insulated lead wire |
| Silver coated copper conductor PTFE insulation shield lead wire |
| Silver coated stranded copper conductor PTFE insulated shield lead wire |
| Silver coated stranded copper conductor PTFE insulated twisted shield lead wire |
| Conductor |
thickness |
Wire Ourter Diameter (mm) |
Resistance of insualtion | |||||||||
| Nominal section area mm2 |
single wire x dia. | Conductor Dia. mm |
110V | 250V | 600V | AFR-250 type | AFRP-250 type | MΩ·km | ||||
| mm | 110V | 250V | 600V | 110V | 250V | 600V | ||||||
| 0.013 | 7×0.05 | 0.15 | 0.1 | 0.15 | 0.25 | 0.38 | 0.49 | 0.71 | 0.7 | 0.82 | 1.02 | 5×103 |
| 0.035 | 7×0.08 | 0.24 | 0.1 | 0.15 | 0.25 | 0.47 | 0.58 | 0.81 | 0.85 | 0.91 | 1.14 | |
| 0.06 | 7×0.10 | 0.3 | 0.1 | 0.15 | 0.25 | 0.55 | 0.65 | 0.87 | 0.9 | 0.97 | 1.2 | |
| 0.08 | 7×0.12 | 0.36 | 0.1 | 0.15 | 0.25 | 0.6 | 0.7 | 0.93 | 1 | 1.03 | 1.26 | |
| 19×0.07 | ||||||||||||
| 0.1 | 7×0.14 | 0.42 | 0.1 | 0.15 | 0.25 | 0.7 | 0.83 | 1 | 1.05 | 1.15 | 1.3 | |
| 19×0.08 | ||||||||||||
| 0.14 | 7×0.16 | 0.5 | 0.1 | 0.15 | 0.25 | 0.73 | 0.85 | 1.05 | 1.05 | 1.18 | 1.45 | |
| 19×0.10 | ||||||||||||
| 0.2 | 7×0.20 | 0.6 | 0.15 | 0.3 | 0.85 | 0.97 | 1.3 | 1.3 | 1.4 | 1.7 | ||
| 19×0.12 | ||||||||||||
| 0.35 | 7×0.25 | 0.8 | 0.15 | 0.3 | 1.2 | 1.5 | 1.6 | 1.9 | ||||
| 19×0.16 | ||||||||||||
| 0.5 | 7×0.30 | 0.9 | 0.15 | 0.3 | 1.3 | 1.6 | 1.7 | 2 | ||||
| 19×0.18 | ||||||||||||
| 0.8 | 7×0.37 | 1.1 | 0.2 | 0.3 | 1.65 | 1.85 | 2.05 | 2.3 | ||||
| 19×0.23 | ||||||||||||
| 1 | 19×0.26 | 1.3 | 0.2 | 0.3 | 1.88 | 2 | 2.25 | 2.45 | ||||
| 1.2 | 19×0.28 | 1.4 | 0.2 | 0.3 | 1.95 | 2.15 | 2.38 | 2.55 | ||||
| 1.5 | 19×0.32 | 1.6 | 0.2 | 0.3 | 2.15 | 2.35 | 2.63 | 2.83 | ||||
| 2 | 19×0.37 | 1.85 | 0.2 | 0.3 | 2.4 | 2.6 | 2.97 | 3.08 | ||||
| 2.5 | 19×0.14 | 2.34 | 0.2 | 0.35 | 2.95 | 3.2 | 3.43 | |||||
| 49×0.26 | ||||||||||||
| 3 | 49×0.28 | 2.52 | 0.2 | 0.35 | 3.1 | 3.37 | 3.5 | |||||
| 4 | 49×0.32 | 2.88 | 0.35 | 3.52 | 4.12 | |||||||
| 6 | 49×0.39 | 3.51 | 0.35 | 4.15 | 4.75 | |||||||
Noted: Specification and core no. are not limited to above regulation, they could be customized.
