Transense CU DHP Ac Condenser Tube For Heating Systems And Ventilation Systems
Condenser Tube for heating systems and Ventilation systems
Product Description

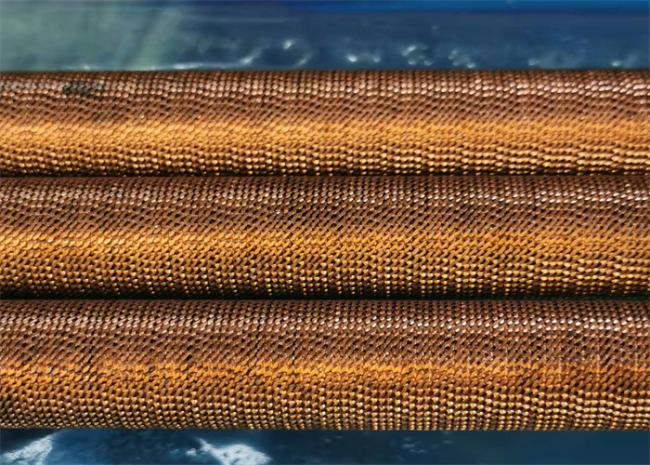

Copper condenser tube,specially designed for the condenser, the sharp ridges on the radial and axial outside finned section of the tube destroy the surface tension of gas, so as to make the condensing liquid dripping. The tube has high heat transfer coefficient and condensing efficiancy.The Process of Copper Condenser Tube is Extruded processes (Rolling).Copper Condenser Tube will pass 100% Eddy Current Testing, 100% hydraulic Testing.OEM of copper condenser tube is available according to drawings and/or samples.
Application
Copper condenser tube especially suitable for heating systems, Ventilation systems, Refrigeration and climate control systems, Mechanical engineering, Automotive manufacturing and Chemicals and pertrochemical and power plant technology.
Packing of copper condenser tube Outside: Plywood sea-worthy case or pallet.
| Copper Condenser Tube |
| Item | Light tube | Wing fragment | |||||||
| O.D. | O.D. | Wall Thickness | minimum Wall Thickness | Ridge Height | Nominal outside surface area | actualoutside surface area | Nominal inside surface area | Nominal inside surface area | |
| mm | mm | mm | mm | mm | ㎡/m | ㎡/m | ㎡/m | ㎡/m | |
| 1 | 12.7 | 12.65 | 0.6 | 0.5 | 0.2 | 0.0399 | 0.1101 | 0.0348 | 0.0433 |
| 2 | 15.88 | 15.7 | 0.635 | 0.56 | 0.3 | 0.0499 | 0.1733 | 0.0429 | 0.0625 |
| 3 | 19.05 | 18.85 | 0.635 | 0.56 | 0.35 | 0.0598 | 0.2282 | 0.0529 | 0.0858 |
| 4 | 19.05 | 18.85 | 0.711 | 0.63 | 0.35 | 0.0598 | 0.2387 | 0.0526 | 0.0858 |
| 5 | 19.05 | 18.85 | 0.889 | 0.8 | 0.35 | 0.0598 | 0.2482 | 0.0523 | 0.0852 |
| 6 | 25.4 | 25.15 | 0.635 | 0.56 | 0.4 | 0.0798 | 0.3098 | 0.0725 | 0.1202 |
