Non Alloy Copper Condenser Tube
CU-DHP Copper Condenser Tube For Refrigerant Condenser Application
Product Description

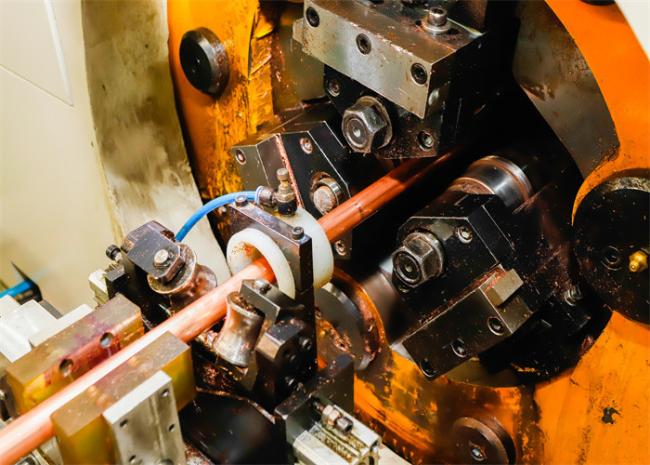

Copper condenser tube,specially designed for the condenser, the sharp ridges on the radial and axial outside finned section of the tube destroy the surface tension of gas, so as to make the condensing liquid dripping. The tube has high heat transfer coefficient and condensing efficiancy.The Process of Copper Condenser Tube is Extruded processes (Rolling).Copper Condenser Tube will pass 100% Eddy Current Testing, 100% hydraulic Testing.OEM of copper condenser tube is available according to drawings and/or samples.
Advantages of copper condenser tube
1. Optimized heat exchange performance of raw material with extruding process
2. Compact design consuming less assembling space
3. Flexible for customized design after soft annealing
4. Copper is a hygienic and antimicrobial material for use in drink water systems
5. Tin plating for both inside and outside surface is possible, if requested
6. Easier to stock after surface treatment
| Copper Condenser Tube |
| Item | Light tube | Wing fragment | |||||||
| O.D. | O.D. | Wall Thickness | minimum Wall Thickness | Ridge Height | Nominal outside surface area | actualoutside surface area | Nominal inside surface area | Nominal inside surface area | |
| mm | mm | mm | mm | mm | ㎡/m | ㎡/m | ㎡/m | ㎡/m | |
| 1 | 15.88 | 15.7 | 0.635 | 0.56 | 0.3 | 0.0499 | 0.1733 | 0.0429 | 0.0625 |
| 2 | 19.05 | 18.85 | 0.635 | 0.56 | 0.35 | 0.0598 | 0.2282 | 0.0529 | 0.0858 |
| 3 | 19.05 | 18.85 | 0.711 | 0.63 | 0.35 | 0.0598 | 0.2387 | 0.0526 | 0.0858 |
| 4 | 19.05 | 18.85 | 0.889 | 0.8 | 0.35 | 0.0598 | 0.2482 | 0.0523 | 0.0852 |
