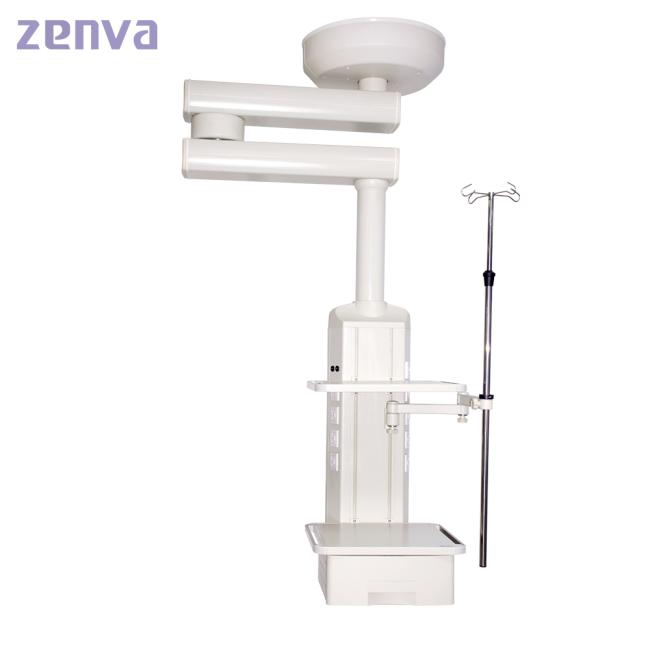

Hospital Aluminum Alloy Medical Gas Pendant For Surgical
Hospital Aluminum alloy Medical Pendant Medical Gas Pendant for Surgical
Detailed Technical Parameter
1. Apply in operating room, endoscope room, anesthesia room and hospital wards so on
2. Available in single and double arm configurations. Each joint has a rotation range up to ≤350 degree.
3. Ceiling Type
4. Pendant column can be custom designed to accommodate a large variety of medical gas outlets and electrical device.
5. Double arm, can rotation, rotation angle≤350 degree.
6. High-strength aluminium alloy, wear-well reduce your cost
7. Pendant Color Blue, Red and so on
8. Pendant Dimension can customize

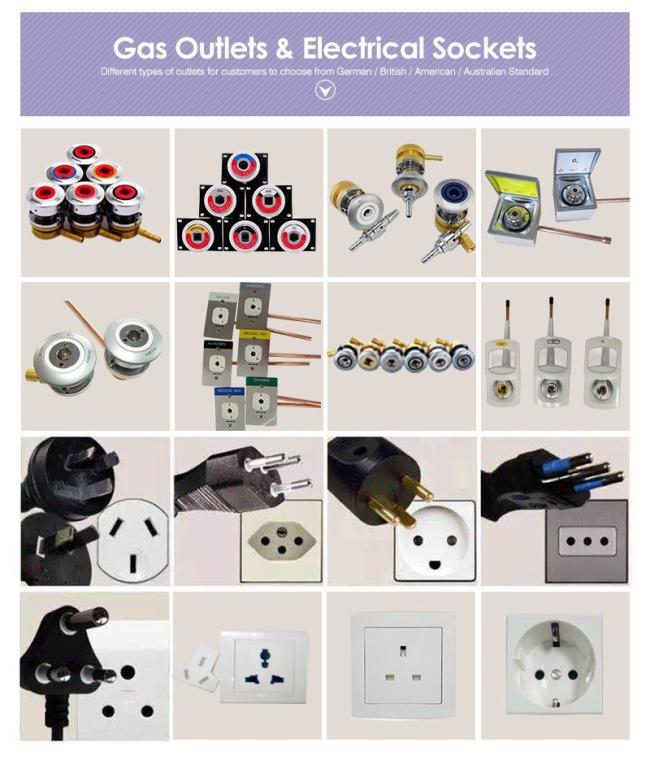

9. Medical gas outlet optional German / British /America/Japanese/ French /Chinese standards.
10. Can horizontal rotation, cannot lift
Configuration
|
Specification
|
||
|
Model
|
EX-50IE-D Double Arm | Mark |
|
Material
|
Used high-strength aluminum allo, Modular Design, Surface Electrostatic Powder Painting, Prevent corrosive, easy to clean. | Low maintenance |
|
Brake way
|
Damping Friction Brake, to make sure without drifting and easy to stop, insure safe | Pneumatic is optional |
|
Rotary arm length
|
1000+800mm (standard configuration) | Length is optional |
|
Rotary Radius
|
≥650mm | |
|
Head Service
|
Column, Standard Height 800mm | Height is optional |
|
Loading
|
≥150kg | |
|
Shelf loading
|
≥60kg | |
|
Degrees rotation
|
≤350o | |
| Standard Configuration | ||||
| Model | EX-50IE Double Arm | Mark | ||
| Shelf | 2 PCS | |||
| Drawer | 1 PCS | |||
| I.V Pole | 1 PCS | |||
| Extension arm | 1 PCS | |||
| Gas Outlet | Surgical Pendant | Anesthesia Pendant | Endoscopy Pendant | |
| O2*1,Vac*1, Air*1 |
O2*1, Vac*1, Air*1 N2O*1, AGSS*1 |
O2*1, Vac*1, Air*1 CO2*1 |
DIN Standard | |
| Electrical socket | 6 pcs (220V 10 A) | Universal Type | ||
