5 Bar Medical Gas Oxygen Outlet In Hospital British Standard
British Standard Medical Gas Outlets Oxygen Outlet for Bed Head Unit
Product Description
Medical gas outlets is used for medical gas system daily medical care and installed at gas systems delivery points((ward room bed head units, medical pendants and equipment walls) to provide the required medical gas.
Our gas outlet can provide 6 kinds of gas, including oxygen, medical air, vacuum, nitrous oxide, carbon dioxide and nitrogen.

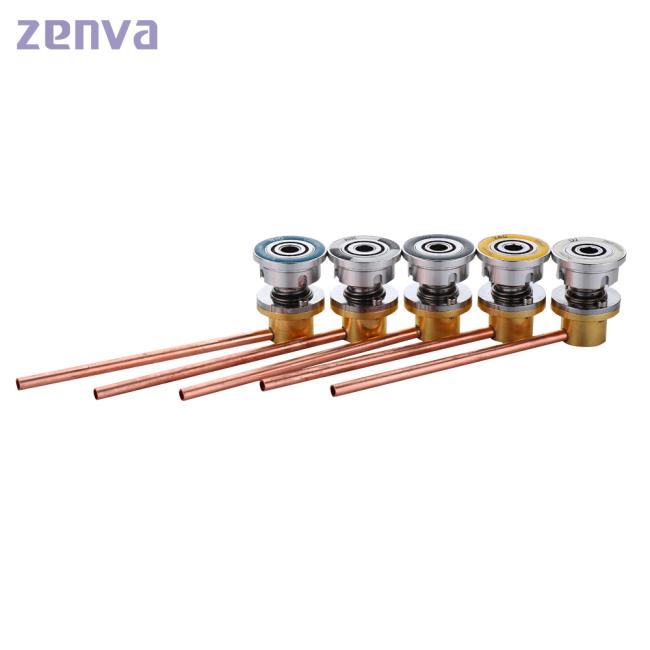

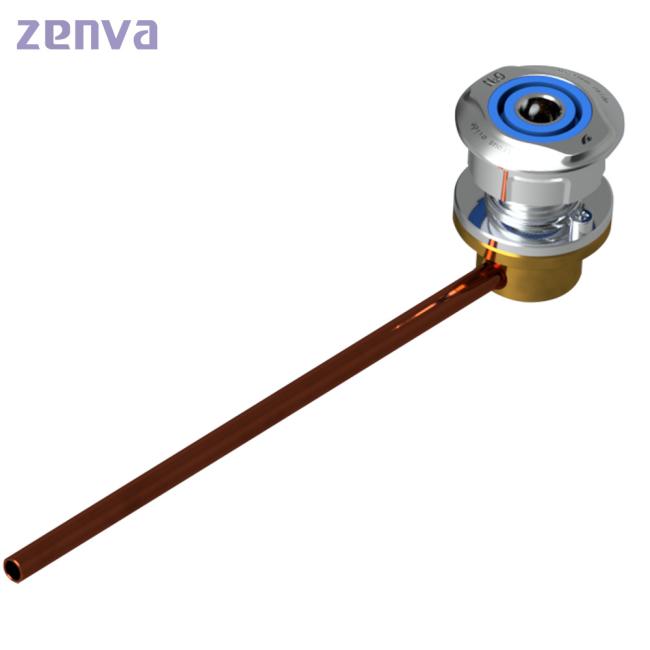

British Standard Medical Gas Outlets are installed at medical gas systems delivery points. The base part made of brass alloy.
Twice outlet connection. With shut-off valve can maintain without having to interrupt gas delivery to other outlets. Only accept British standard (BS) quick connect adapters. Different gas type with different quick connect adapters. Outlets available Wall mounting, Bed Head mounting and Pendant mounting.
Specifications
* Completely with EN ISO 9170-1, EN ISO 9170-2 , HTM 02-01 standard.
* Gas Type: O2, AIR,VAC, N2O, N2, CO2 are available
* O.D. 10 mm copper pipeline
* ISO32 color-coded for easy gas identification
* 100% tested for flow, leaks and cleaned
* Wall mounting, Bed Head mounting and Pendant mounting available
Technical Data
| Compressed gas terminal unit | Vacuum terminal unit | |
| Operationg pressure | 5 bar | 0.6 bar abs. |
| Flow rate | 40 U/min | 25L/min |
| Locking mechanism | In two levels(standby- and operating position) | |
| Maintenance valve | Change of check valve and O-ring under pressure | |
| Connection to piping system | Copper pipe 8 1 mm for all couplings | |
| Plaster compensation | Variable from to 20 mm, with adapter up to 40 mm possible | |
