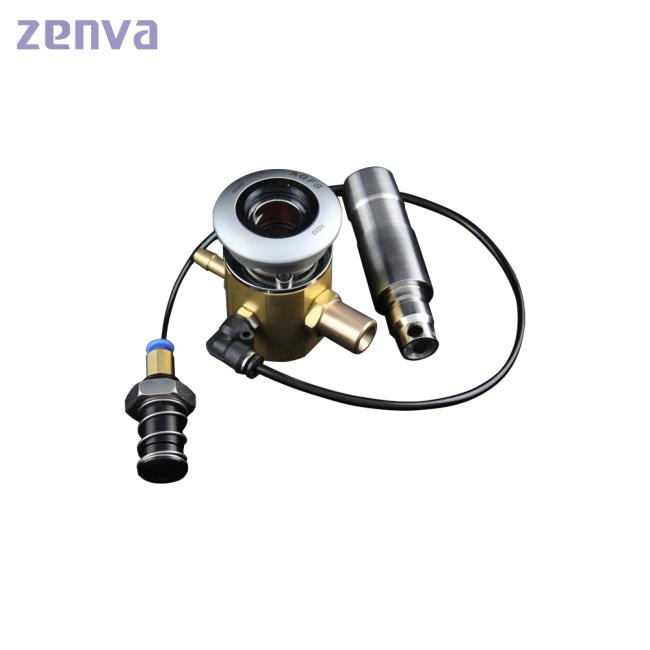

AGSS Hospital Oxygen Gas Outlet For Bed Head Unit Medical Pendant 8mm
American Standard Gas Outlet Medical Gas Outlet Used On The Wall
Product Description
Complies with NFPA99 and CGA Standard.
100% pressure and leak tested. Available in wall type with box, console type on bed head unit and hose bard type. Universal rough-in common for all outlets. NFPA full color standard for easy gas identification.
Specification
| Name | Medical Gas Outlet Hospital Oxygen Outlet |
| Gas | O2, AIR, VAC, N2, N2O,CO2 ,AGSS are available |
| Copper Tube Diameter | 8mm, 10mm, 12mm |
| Color | Color-coding and Lettering Identificatio |
| Valve Part | Brass |
| Gas Pipe | Copper |
| Installing Bracket | Steel |
| Weight | 416g/ set |
100% tested for gas leakage.
10000 times Swap Fatigue Test.
Accept Ohmeda,DISS,Puritan-Bennett,Chemetron
The socks in medical gas outlet for different gases are different shapes so that the supply of gases can not be confused.
The back seat has slot plate and wall covering two forms
360°swivel on the inlet pipe for easy installation
Connection Type:90°Tubing,180°Tubing,90-Degree Hose Barb,90-Degree DISS
Can be repaired under gas supply
Installation:Wall concealed installation; medical bridge pendant installation;bed head unit installation and so on
Packing
1PC IN A BOX; 25PCS IN A CARTON.
Single package size: 20X15X10 cm
Single gross weight:0.650 kg
