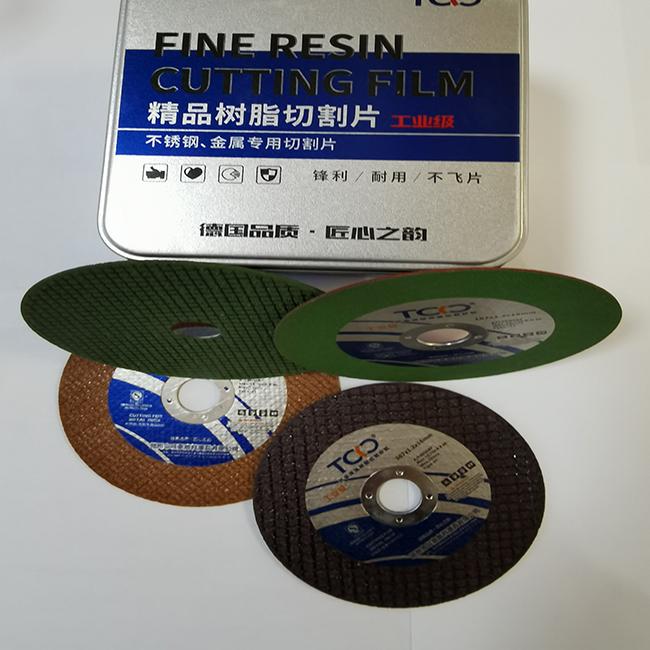

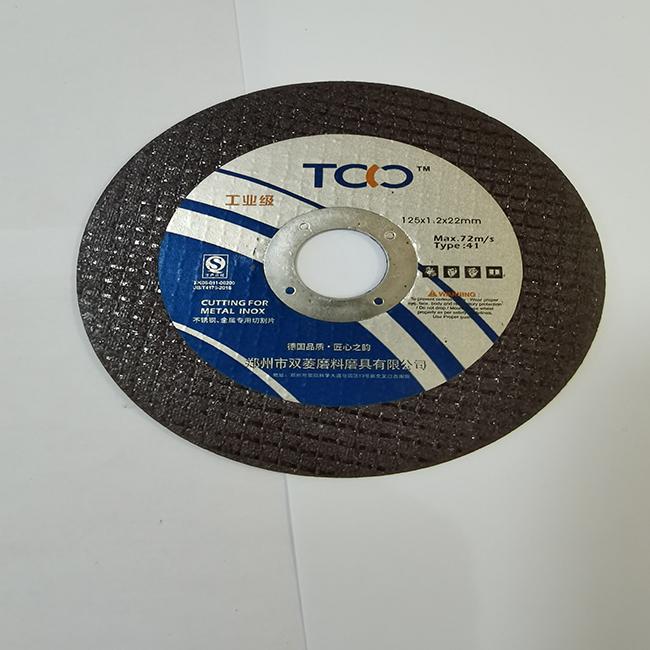

Resin Bonded Stainless Steel Cut Off Wheel WA SIC 107mm 4 Inch Cutting Disc
1: Applications of 4 inch cutting wheel
4 inch cutting wheel is for cutting Mild Steels, Alloy Steel, Stainless Steel, Stone/Masonry, Cast iron,Non-FerrousMetal
2: 4 inch cutting wheel Specification
| Size (DXTXH) | Packing (CTN) | Max Speed | |||
| MM | INCH | PCS | GW(KG) | R.P.M | M/S |
| 107x1.0x16 | 4"x3/64"x5/8" | 800 | 21 | 15200 | 80 |
| 100x1.6x16 | 4"x1/16"x5/8" | 800 | 23 | 15200 | 80 |
| 100x2.5x16 | 4"x2/32"x5/8" | 600 | 20 | 15200 | 80 |
| 115x1.0x22.2 | 4.5"x3/64"x7/8" | 600 | 19 | 13300 | 80 |
| 115x1.6x22.2 | 4.5"x1/16"x7/8" | 600 | 24 | 13300 | 80 |
| 115x3.0x22.2 | 4.5"x1/8"x7/8" | 300 | 23 | 13300 | 80 |
| 125x1.0x22.2 | 5"x3/64"x7/8" | 600 | 22 | 12200 | 80 |
| 125x1.6x22.2 | 5"x1/16"x7/8" | 600 | 27 | 12200 | 80 |
| 125x3.0x22.2 | 5"x1/8"x7/8" | 300 | 28 | 13300 | 80 |
| 150x1.6x22.2 | 6"x1/16"x7/8" | 400 | 25 | 10200 | 80 |
| 150x3.0x22.2 | 6"x1/8"x7/8" | 200 | 23 | 10200 | 80 |
| 180x1.8x22.2 | 7"x5/64"x7/8" | 300 | 28 | 8600 | 80 |
| 180x3.0x22.2 | 7"x1/8"x7/8" | 200 | 31 | 8600 | 80 |
| 230x1.8x22.2 | 9"x5/64"x7/8" | 150 | 24 | 6600 | 80 |
| 230x3.0x22.2 | 9"x1/8"x7/8" | 100 | 28 | 6600 | 80 |
| 250x3.0x25.4 | 10"x1/8"x1" | 30 | 10 | 6150 | 80 |
| 305x3.2x25.4 | 12"x1/8"x1" | 30 | 14 | 5100 | 80 |
| 355x2.5x25.4 | 14"x2/32"x1" | 30 | 18 | 4400 | 80 |
| 355x3.2x25.4 | 14"x1/8"x1" | 25 | 18 | 4400 | 80 |
| 405x3.0x25.4 | 16"x1/8"x1" | 25 | 23 | 3800 | 80 |
| 405x3.0x32 | 16"x1/8"x5/4" | 25 | 23 | 3800 | 80 |
3:Attention;
Master the methods of cutting and slotting correctly!
After the wheel is correctly installed, idling for 1-2 minutes and dressing the outer circle and two sides gently.
4: Storage Conditions
During storage, grinding wheels must not be subjected to:
.Exposure to humidity,water or other liquids
.Freezing temperatures
.Any temperature low enough to cause the formation of condensation on the wheels when moving from storage to an area of high temperature.
Q1:what is the advantage of your products?
A1: We are professional manufacturer in this field with lots of years R&D and market research experience,we can provide competitive price and high quality products for you.
Q2: How is your quality?
A2: We have a very seriously control system(ISO 9001 and SGS product quality control) and 100% QC inspection Before Shipment.
Q3:Payment
A3: TT, L / C, Paypal and Western Union and other payment methods. The payment range comes from different countries and regions.
Q4:What are the way of the transportation?
A4: Depending upon the weight of goods ,we can transfer by express ,air and shipping ,including DHL ,UPS ,TNT and FEDEX
