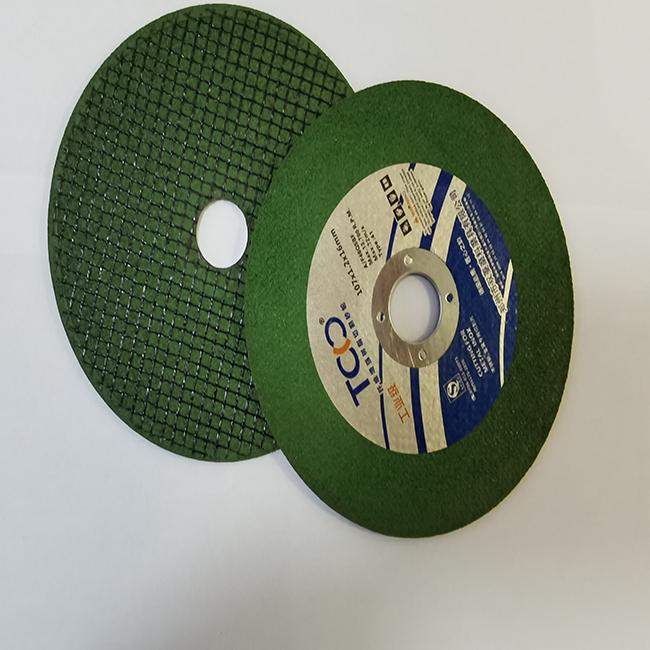

16mm Angle Grinder Metal Cutting Wheel
1: Specification
Super-thin Resin-Bonded Cutting Wheel's cutting efficiency is 1-2 times higher than that of ordinary ultra-thin products, and its durability is greatly improved, which is 3-4 times higher than that of ordinary ultra-thin products; Because the thickness is only 1 mm, the material is saved greatly; This product is mainly used for cutting stainless steel or alloy pipes, bars and special-shaped steels with diameter less than 25 mm and thickness less than 5 mm. It can also be widely used for cutting ordinary carbon steel and other metal materials. It can be used to replace the traditional brown corundum cutting wheel with thickness greater than 2.5 mm in grinding wheel industry.
2: Product Details Form
| Size (DXTXH) | Packing (CTN) | Max Speed | |||
| MM | INCH | PCS | GW(KG) | R.P.M | M/S |
| 107x1.0x16 | 4"x3/64"x5/8" | 800 | 21 | 15200 | 80 |
| 100x1.6x16 | 4"x1/16"x5/8" | 800 | 23 | 15200 | 80 |
| 100x2.5x16 | 4"x2/32"x5/8" | 600 | 20 | 15200 | 80 |
| 115x1.0x22.2 | 4.5"x3/64"x7/8" | 600 | 19 | 13300 | 80 |
| 115x1.6x22.2 | 4.5"x1/16"x7/8" | 600 | 24 | 13300 | 80 |
| 115x3.0x22.2 | 4.5"x1/8"x7/8" | 300 | 23 | 13300 | 80 |
| 125x1.0x22.2 | 5"x3/64"x7/8" | 600 | 22 | 12200 | 80 |
| 125x1.6x22.2 | 5"x1/16"x7/8" | 600 | 27 | 12200 | 80 |
| 125x3.0x22.2 | 5"x1/8"x7/8" | 300 | 28 | 13300 | 80 |
| 150x1.6x22.2 | 6"x1/16"x7/8" | 400 | 25 | 10200 | 80 |
| 150x3.0x22.2 | 6"x1/8"x7/8" | 200 | 23 | 10200 | 80 |
| 180x1.8x22.2 | 7"x5/64"x7/8" | 300 | 28 | 8600 | 80 |
| 180x3.0x22.2 | 7"x1/8"x7/8" | 200 | 31 | 8600 | 80 |
| 230x1.8x22.2 | 9"x5/64"x7/8" | 150 | 24 | 6600 | 80 |
| 230x3.0x22.2 | 9"x1/8"x7/8" | 100 | 28 | 6600 | 80 |
| 250x3.0x25.4 | 10"x1/8"x1" | 30 | 10 | 6150 | 80 |
| 305x3.2x25.4 | 12"x1/8"x1" | 30 | 14 | 5100 | 80 |
| 355x2.5x25.4 | 14"x2/32"x1" | 30 | 18 | 4400 | 80 |
| 355x3.2x25.4 | 14"x1/8"x1" | 25 | 18 | 4400 | 80 |
| 405x3.0x25.4 | 16"x1/8"x1" | 25 | 23 | 3800 | 80 |
| 405x3.0x32 | 16"x1/8"x5/4" | 25 | 23 | 3800 | 80 |
3: Usage
* The heat-treated white aluminum oxide grains helps in quick cutting and maintains high durability.
* Tough abrasive cutting discs are perfect for super-fast, clean cutting in carbon steel, stainless steel, pipe,
iron, copper,and all other ferrous metals.
4: Main Features
1. High quality corundum grit, resin bond and fiber.
2. High cutting ratio.
3. Durable and sharp.
4. Double nets reinforced, with high tensile strength and bending resistance.
5. Double nets for safety and steady when cutting.
5:Packing & Shipping
