Aluminum Oxide Abrasive Cut Off Wheel 125mm 80m/S Metal Cutting Wheel Angle Grinder
Introduction of Aluminum Oxide Cutting Wheel
1. Advanced grit and bond system
2. Low vibration and comfortable cutting
3. High crafts making
4. Free sample provided
5. Excellent after-sales service
Parameters of Aluminum Oxide Cutting Wheel
| Size (DXTXH) | Packing (CTN) | Max Speed | |||
| MM | INCH | PCS | GW(KG) | R.P.M | M/S |
| 107x1.0x16 | 4"x3/64"x5/8" | 800 | 21 | 15200 | 80 |
| 100x1.6x16 | 4"x1/16"x5/8" | 800 | 23 | 15200 | 80 |
| 100x2.5x16 | 4"x2/32"x5/8" | 600 | 20 | 15200 | 80 |
| 115x1.0x22.2 | 4.5"x3/64"x7/8" | 600 | 19 | 13300 | 80 |
| 115x1.6x22.2 | 4.5"x1/16"x7/8" | 600 | 24 | 13300 | 80 |
| 115x3.0x22.2 | 4.5"x1/8"x7/8" | 300 | 23 | 13300 | 80 |
| 125x1.0x22.2 | 5"x3/64"x7/8" | 600 | 22 | 12200 | 80 |
| 125x1.6x22.2 | 5"x1/16"x7/8" | 600 | 27 | 12200 | 80 |
| 125x3.0x22.2 | 5"x1/8"x7/8" | 300 | 28 | 13300 | 80 |
| 150x1.6x22.2 | 6"x1/16"x7/8" | 400 | 25 | 10200 | 80 |
| 150x3.0x22.2 | 6"x1/8"x7/8" | 200 | 23 | 10200 | 80 |
| 180x1.8x22.2 | 7"x5/64"x7/8" | 300 | 28 | 8600 | 80 |
| 180x3.0x22.2 | 7"x1/8"x7/8" | 200 | 31 | 8600 | 80 |
| 230x1.8x22.2 | 9"x5/64"x7/8" | 150 | 24 | 6600 | 80 |
| 230x3.0x22.2 | 9"x1/8"x7/8" | 100 | 28 | 6600 | 80 |
| 250x3.0x25.4 | 10"x1/8"x1" | 30 | 10 | 6150 | 80 |
| 305x3.2x25.4 | 12"x1/8"x1" | 30 | 14 | 5100 | 80 |
| 355x2.5x25.4 | 14"x2/32"x1" | 30 | 18 | 4400 | 80 |
| 355x3.2x25.4 | 14"x1/8"x1" | 25 | 18 | 4400 | 80 |
| 405x3.0x25.4 | 16"x1/8"x1" | 25 | 23 | 3800 | 80 |
| 405x3.0x32 | 16"x1/8"x5/4" | 25 | 23 | 3800 | 80 |

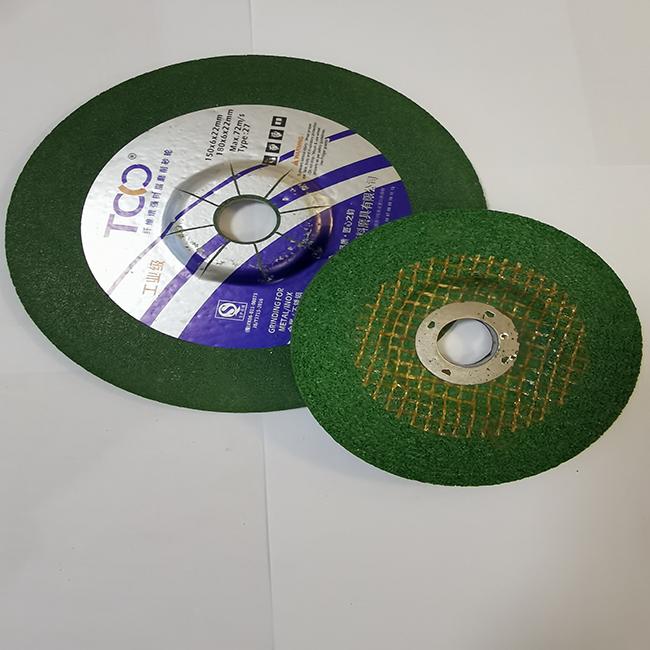

Pictures
Usage of Aluminum Oxide Cutting Wheel
Suitable for channel steel, tool steel, construction steel, stainless steel, spring steel, cast iron. Cutable material shape:
square tube, thick-walled tube, anatomical surface
Storage Conditions
During storage, grinding wheels must not be subjected to:
.Exposure to humidity,water or other liquids
.Freezing temperatures
.Any temperature low enough to cause the formation of condensation on the wheels when moving from storage to an area of high temperature.
FAQ
Question: How many years have been in this field?
Answer: We are mainly deal with Abrasives, Cutting tools for more than ten years.
Question: Do you provide samples ? is it free or extra ?
Answer: Yes, free samples can be prepared for quality test , but costomers have to bare the cost of freight.
Question: How many days you need to prepare the samples?
Answer: We need 5-20 working days to prepare the samples
Question: Where is the loading port.
Answer: All ports in China, or as your requestment.
Question: How long is your delivery time?
Answer: Generally it is 15 days for our own brand DOME and 45 days after all details confirmed for OEM order.
