High Refresh Rate Over 3840hz P3.9 Rental Outdoor LED Display High Brightness
Price:
$210.00/Pieces 8-99 Pieces
MOQ:
8 Pieces
Delivery Time:
15 working days
Brand:
King VisionLed
Product Description

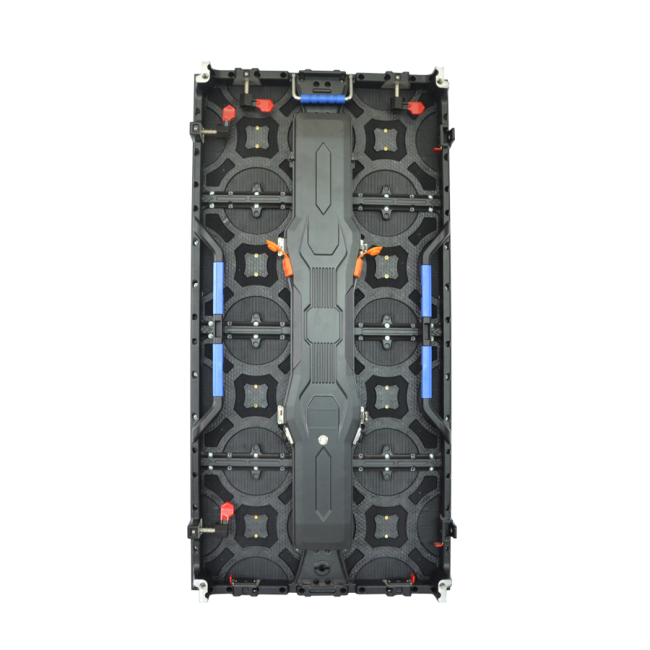

3 Years Warranty High Brightness High Refresh Rate Over 3840hz P3.9 Outdoor LED Display
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
Speification of Outdoor Rental Led Display:
| Module Number | PH2.604 | PH2.976 | PH3.91 | PH4.81 |
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Physical Density | 147456 pixels/m2 | 112896 pixels/m2 | 65536 pixels/m2 | 43264 pixels/m2 |
| Led Arrangement | 3 in 1SMD | 3 in 1 SMD | 3 in 1SMD | 3 in 1 SMD |
| Module Resolution | 96*96 pixels | 84*84 pixels | 64*64 pixels | 52*52 pixels |
| Module Dimensions | 250*250 mm | 250*250mm | 250*250 mm | 250*250mm |
| Cabinet Resolution | 192*192 pixels | 168*168 pixel | 128*128 pixels | 104*104 pixel |
| Cabinet Dimensions | 500*500 mm | 500*500 mm | 500*500 mm | 500*500 mm |
| Cabinet Weight | 7.5kg | 7.5kg | 7.5kg | 7.5kg |
| Brightness | ≥5000 nits | ≥5000 nits | ≥5000 nits | ≥5000 nits |
| Max Power Consumption | 180w/panel | 180w/panel | 180w/panel | 132w/panel |
| Ave Power Consumption | 60w/panel | 60w/panel | 60w/panel | 44w/panel |
| Viewing Angle | 160°(W) 160°(H) | 160°(W) 160°(H) | 160°(W) 160°(H) | 160°(W) 160°(H) |
| Operating Power source | 110-240V AC 50-60Hz | 110-240V AC 50-60Hz | 110-240V AC 50-60Hz | 110-240V AC 50-60Hz |
| Operating Temperature | -20℃～+50℃ | -20℃～+50℃ | -20℃～+50℃ | -20℃～+50℃ |
| Refresh Rate | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
| IP Rating | IP65 | IP65 | IP65 | IP65 |
| Signal Input Source | Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI | Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI | Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI | Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI |
| Verification | ETL, FCC, CCC, RoHS,CE | ETL, FCC, CCC, RoHS,CE | ETL, FCC, CCC, RoHS,CE | ETL, FCC, CCC, RoHS,CE |
Curved Installation
High Precision Curve Lock design (-10° to +10°) is adopted to solve the problem that the old curved lock is difficult to use
before. Rotational control, more accurate, easy to use and quickly adjust curve degree.
before. Rotational control, more accurate, easy to use and quickly adjust curve degree.
Our Service of Outdoor Rental Led Display:FAQ
Q1:Are you a manufacturer or trading company?
A1:We are a Professional OEM/ODM manufacturer which has specialized in led display industry for ten years.
Q2:How does your factory do regarding quality control?
A2:Quality is priority.Our company always attach great importance to quality controlling from the very beginning to the very end.We focus on every detail,Our factory has gained CE, ROHS ,FCC,IP65 authentication.
Q3:What is your MOQ?
A3:Any quantity is acceptable for your order. And the price is negotiable for large quantity
Q1:Are you a manufacturer or trading company?
A1:We are a Professional OEM/ODM manufacturer which has specialized in led display industry for ten years.
Q2:How does your factory do regarding quality control?
A2:Quality is priority.Our company always attach great importance to quality controlling from the very beginning to the very end.We focus on every detail,Our factory has gained CE, ROHS ,FCC,IP65 authentication.
Q3:What is your MOQ?
A3:Any quantity is acceptable for your order. And the price is negotiable for large quantity
