P3.9 Full Color Outdoor Rental LED Display 500x500mm Die Casting Aluminum Panel
P3.9 LED Screen Full Color Outdoor Display 500*500mm Die Casting Aluminum Panel LED Video Wall
LED Display Seamless Splicing
* Multi Pixel Pitch For Options: P2.6/P2.9/P3.9/P4.8
* Specially use for TV studio, conference center,monitoring center and cinema, museum, ect. * Seamless connection, high contrastratio, high refresh rate, 16 bit high gray level.

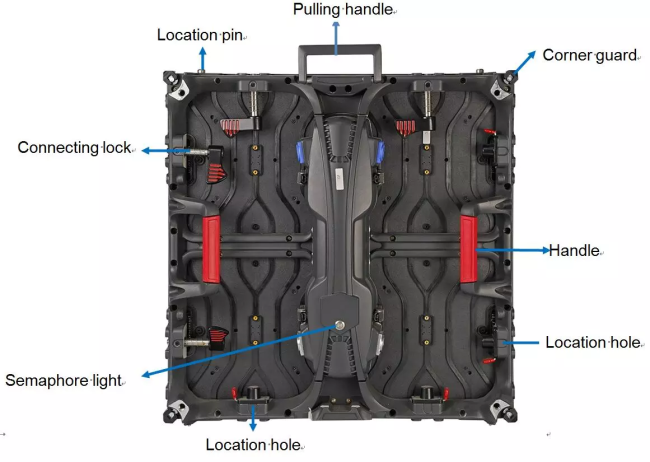

* Front Service: Magnetic Module Ergonomic design.
1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.
2. Nice appearance and simple structures.
3. Jointed correctly, being installed & dismounted by one person without tool.
4. Humanized operating interface with breakdown indicator lights, easy to maintain.
5. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.
| Module Number | PH2.604 | PH2.976 | PH3.91 | PH4.81 |
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Physical Density | 147456 pixels/m2 | 112896 pixels/m2 | 65536 pixels/m2 | 43264 pixels/m2 |
| Led Arrangement | 3 in 1SMD | 3 in 1 SMD | 3 in 1SMD | 3 in 1 SMD |
| Module Resolution | 96*96 pixels | 84*84 pixels | 64*64 pixels | 52*52 pixels |
| Module Dimensions | 250*250 mm | 250*250mm | 250*250 mm | 250*250mm |
| Cabinet Resolution | 192*192 pixels | 168*168 pixel | 128*128 pixels | 104*104 pixel |
| Cabinet Dimensions | 500*500 mm | 500*500 mm | 500*500 mm | 500*500 mm |
| Cabinet Weight | 7.5kg | 7.5kg | 7.5kg | 7.5kg |
| Brightness | ≥5000 nits | ≥5000 nits | ≥5000 nits | ≥5000 nits |
| Max Power Consumption | 180w/panel | 180w/panel | 180w/panel | 132w/panel |
| Ave Power Consumption | 60w/panel | 60w/panel | 60w/panel | 44w/panel |
| Viewing Angle | 160°(W) 160°(H) | 160°(W) 160°(H) | 160°(W) 160°(H) | 160°(W) 160°(H) |
| Operating Power source | 110-240V AC 50-60Hz | 110-240V AC 50-60Hz | 110-240V AC 50-60Hz | 110-240V AC 50-60Hz |
| Operating Temperature | -20℃～+50℃ | -20℃～+50℃ | -20℃～+50℃ | -20℃～+50℃ |
| Refresh Rate | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
| IP Rating | IP65 | IP65 | IP65 | IP65 |
| Signal Input Source | Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI | Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI | Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI | Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI |
| Verification | ETL, FCC, CCC, RoHS,CE | ETL, FCC, CCC, RoHS,CE | ETL, FCC, CCC, RoHS,CE | ETL, FCC, CCC, RoHS,CE |
before. Rotational control, more accurate, easy to use and quickly adjust curve degree.
Q1: Where is your nearst port?
A : Our nearst port is shenzhen port.
Q2: Are all of your products of good quality?
A: Yes, our products are of good quality, you don't have to worry about that. And we provide 2 years' warranty.
Q3: Can I visit your factory ?
A: We do have our factory, and you're welcomed to visit it at any time. The sales and the manager will accompany you to introduce our production line at that time.
Q4: What kind of packaging do you provide?
A: We provide flight case, wooden case and carton.
Q5: How can I select your product?
A: Firstly you need to tell us your requirement such as the viewing distance, size, installation height, and some other details for the LED screen that you want. And then we will give you a recommendation.
