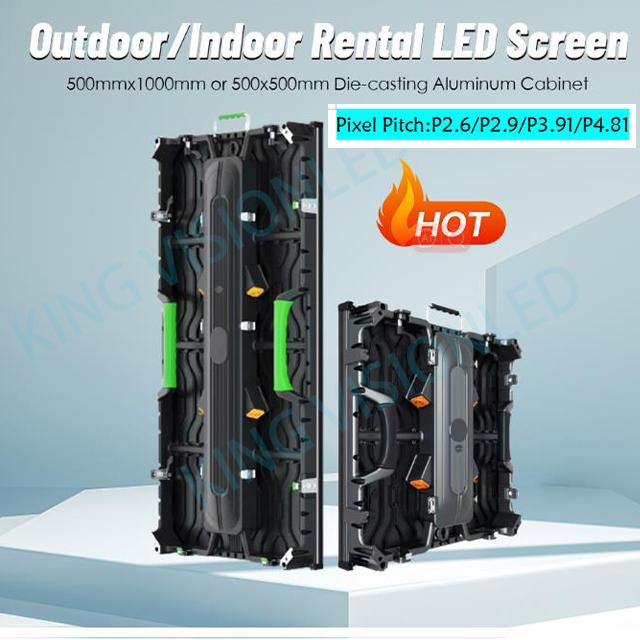

HD Public Background Rental LED Screen Dustproof And Waterproof P3.9 P2.9
1,High Precision Curve Lock
2,Quick Install
3,Corner Protector for LED

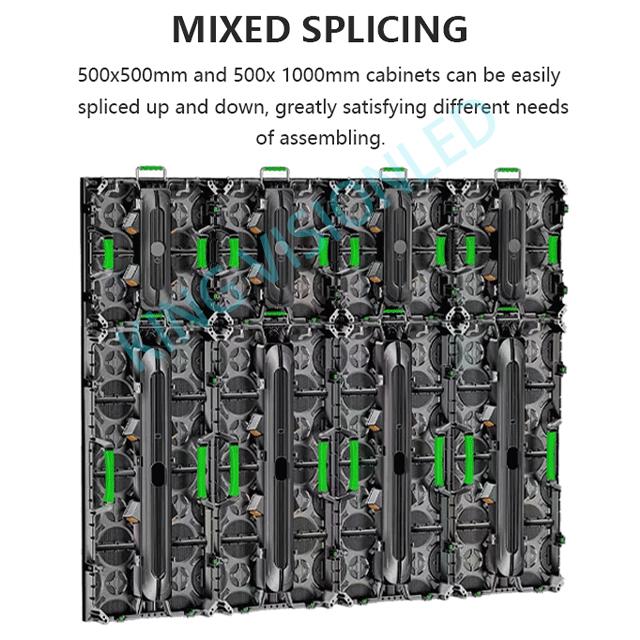

4,Cabinet can be stacked

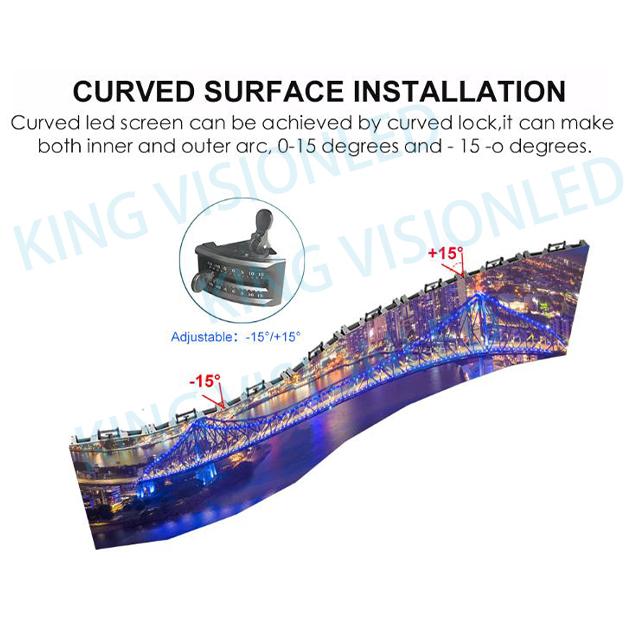

5,Curved Installation
6,Lightweight and Thin
7,IP65 Dustproof And Waterproof
8,Seamless Display , Better Visual Effects
9,Suitable For 250x250mm Standard Size Modules
10,Wide Viewing Angle
| Model | P2.6-IN | P2.9-IN | P3.9-IN | P3.9-OD | P4.8-OD |
| Pixel Pitch | 2.6 | 2.9 | 3.9 | 3.91 | 4.81 |
| Pixel Density(dot/m2) | 147,456 | 112896 | 65536 | 65536 | 43264 |
| LED Type | SMD2121 | SMD2121 | SMD2121 | SMD1921 | SMD1921 |
| Module Size(mm*mm) | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 |
| Cabinet Size(mm*mm*mm) | 500*500*73 | 500*500*73 | 500*500*73 | 500*500*73 | 500*500*73 |
| Cabinet Weight(±0.25kg) | 500*1000*73 | 500*1000*73 | 500*1000*73 | 500*1000*73 | 500*1000*73 |
| Cabinet Resolution(px*px) | 192*192 | 168*168 | 128*128 | 128*128/128*256 | 104*104/104*208 |
| Module Resolution(px*px) | 96*96 | 86*86 | 64*64 | 64*64 | 52*52 |
| Vertical Viewing Angle(Deg) | H160/V120 | H160/V120 | H160/V120 | H160/V120 | H160/V120 |
| Brightness(cd/m2) | 1000 | 1000 | 1000 | 4500 | 4500 |
| Gray Scale(bit) | 16 | 16 | 16 | 16 | 16 |
| Refresh Rate(Hz) | 3840 | 3840 | 3840 | 3840 | 3840 |
| Max Power Consumption(W/sqm) | 400 | 400 | 400 | 700 | 700 |
| Average Power Consumption(W/sqm) | 120 | 120 | 120 | 210 | 210 |
| Input Voltage(V) | AC 100-240 | AC 100-240 | AC 100-240 | AC 100-240 | AC 100-240 |
| Ingress Protection | IP43 | IP43 | IP43 | IP65 | IP65 |
| Working Environment | Indoor | Indoor | Indoor | Outdoor | Outdoor |
Shenzhen King Visionled Optoelectronics Co.Ltd was established in 2006, we are a professional LED media/video display exporter and manufacturer. since its establishment, we are always following the new changes of LED industry. So far, our LED products are sold widely around the world , King Visionled also has got good reputation from different users, our products are mainly supplied for international market, so offering quality products, competitive price, patient and fast technology support are the root of the our enterprise survival in the big market. At any time,we are the best one of your reliable choice.
FAQ
Q1: Can a led display be any size?
A1: Nope, according the led module size and cabient size, such as p4.81mm is 500x500mm for smallest unit.
Q2: How to install led display?
A2: We will provide drawing of steel structure or hanging truss, then you can install led display very easy.
4. WHAT IS THE PAYMENT TERMS?
30% deposit by TT, 70% balance before shipment.
