Motera Football Stadium Perimeter Led Display P10 Outdoor 6500nits IP65
Football P10 6500nits Stadium Perimeter Led Display SMD3535 With IP65 High Brightness&Gray
Product of feature:

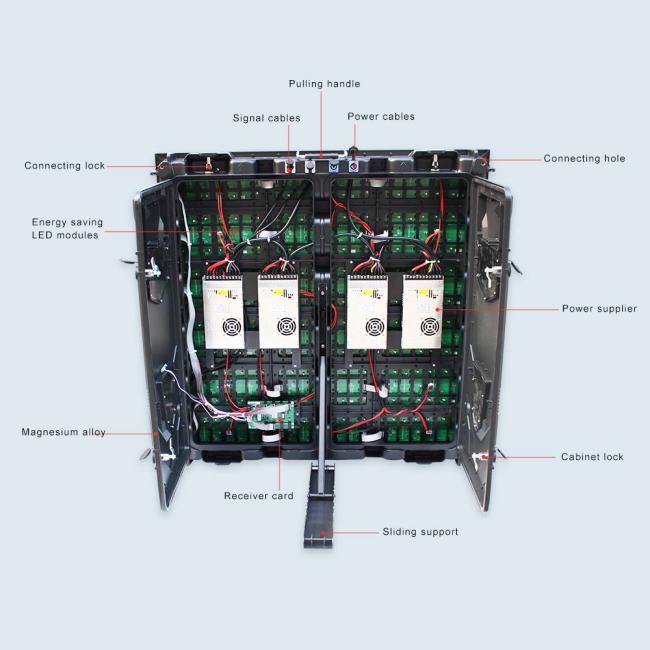

1. Die casting aluminum cabinet, light wright and easy for installation.
2. Has soft top cover, soft mask which will protect the athletes.
3. Support angle adjustment, 60-90 degree.
4. High brightness which is adjustable to meet the needs of various working environment sufficiently.,
5. All raw materials go through the strictly testing of high/low temperature and high humidity, anti-ultraviolet rays, anti-corrosion.
6. IP65 protection grade, durable nature enables the screen to work in all outdoor weather conditions.
| Pitch(mm) Stadium Perimeter Led Display | P6.667 | P8 | P10 |
| Pixel density(dots/m2) | 22,500 | 15625 | 10000 |
| Pixel Configuration | SMD3535 | SMD3535 | SMD3535 |
| Module size | 320X320 mm | 320X320 mm | 320X320 mm mm |
| Module resolution | 48X48 | 40X40 | 32X32 |
| Module configuration | 2X2 | 2X2 | 2X2 |
| Cabinet size | 640X640 mm | 640X640 mm | 640X640 mm |
| Cabinet resolution | 96X96 | 80X80 | 64X64 |
| Cabinet weight | 12.5kg/cabinet | ||
| Brightness (nita nits) | ≥6500 | ≥8500 | ≥8500 |
| Power Consumption | Max:900W/sqm | Max:900W/sqm | Max:850W/sqm |
| Avg:300W/sqm | Avg:300W/sqm | Avg:270W/sqm | |
| Protection Grade (Front/Rear) | IP65 | ||
| Contrast Ratio | 3000:1 | ||
| Power Supply | AC85~264V(50/60Hz) | ||
| Reframe Rate | 50Hz&60Hz | ||
| Lifetime(Half brightness) | 100,000Hrs | ||
| Operating Temperatures | -10-60℃ | ||
| Storage Temperatures | -20-60℃ | ||
| Work humidity | 10%-90%RH | ||
Stadium Perimeter Led Display FAQ:
Q1:What’s the function?
Support various formats,like VGA,Video,AVI,DAT,etc.
Q2:How to install and install way.
No need steel structure for installation to save a lot of cost,Have professional connector,Quick lock assembly 1 hour for 90 sqm installation
Q3:LED display modules are generally expressed in PX,such as P2 P3 P4...P8 P10,what does this mean?
:P3 P4...P8 P10 means that the pixel pitch is 3mm 4mm...10mm,which determines resolution of a display.Pixel pitch smaller,led resolution higher.
Q4:What pixel pitch should I choose on my display?
It’s mainly depends on the viewing distance,the size of the display screen,the desired effect the application scenario and the customer budget.
