Transparent Glass Led Screen Wall Curtain Window Superior IC P3.9 P7.8mm
Transparent Led Display Screen Glass Window Superior IC P3.9-7.8 Curtain Screen
Products features:

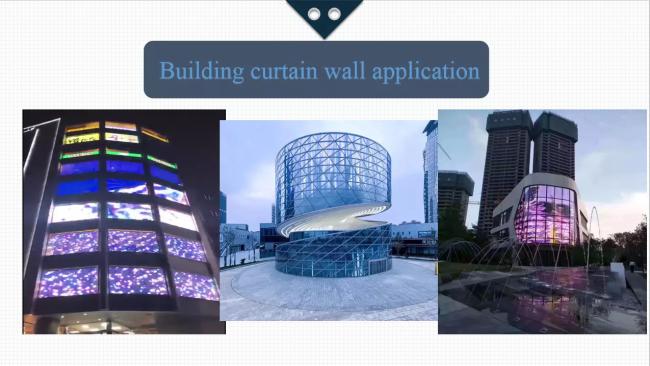

Transparent Led Display Screen is a new type of LED display,with the transparent features,it can rbring unique visiual effect.And it is easy to install and disassemble,smart contorl etc.A totally new irreplaceable,creative application effect can be realized by using the transparent led screen in concert,TV station's party & large entertainment program,auto show & high-end exhibition .and large-scale new product launch conference etc.over here LED wall for sale and buy LED video wall best merchants.
| Transparent Led Display Screen | Specifications | ||
| LED Module | Color configuration | SMD2121/1921 1R1G1B 3 in 1 | |
| Pixel Pitch(mm) | 3.91x7.81mm | 7.81*7.81mm | |
| Module Size(mm) | 500(W)× 125(H) | ||
| Module Weight(kg) | 0.35 | ||
| Module Max Power(W) | 25 | ||
| Module Quantity(W×H) | 2×4 | ||
| Cabinet | Cabinet Resolution(W×H) | 256×64 | 128×64 |
| Cabinet Size(mm) | 1000(W)×500(H)×80(D) | ||
| Cabinet Weight(kg) | ≤6 | ||
| Pixel Density(Dot/m2) | 16384 | ||
| Transparency | 55%-72% | ||
| Cabinet Material | Die Casting Aluminum | ||
| Optical parameter | Brightness Control Level | 256 degree by software | |
| Brightness Control Mode | Automatically/Manul Operation | ||
| Brightness at White(nits) | ≥800, can be adjusted | ||
| Viewing Angel(H/V°) | 140/140 | ||
| Max. Power(W/m2) | 380 | ||
| Ave.Power(W/m2) | 190 | ||
| AC Input | AC110~220V10%, 50~60Hz, | ||
| Drive Mode | 1/16Scan | 1/8Scan | |
| Grey Scale | 16bits | ||
| Refresh rate | ≥3840Hz/s,can be adjusted | ||
| Life Span | >100,000H | ||
| Working Temperature,Humidity | -20℃~+50℃, | ||
Transparent Led display screen FAQ:
Q1: What's the pixel pitch for Indoor LED Display Screen ?
A1: 1.2mm/1.6mm/1.9mm/2.5mm/2.9mm/3mm/3.75mm/4mm/5mm/6mm/4.8mm/5.95mm
Q2: Where is indoor LED diplay screen used for?
A2: Indoor rental use. Widely used for backdrop of staging event, rental business, liveshow, concert, etc. Indoor fixed installation use.
Q3: Can it play HD video?
A3: Yes, it can realize HD video function with Novastar controlling system.
Q4: What's the controlling system?
A4: Our standard controlling system for this model is Novastar. Also support other controlling system, like Linsn, etc.
