P4 Giant Outdoor Led Screen Cabinet Size 960x960mm SMD3535 DOOH Billboard
Outdoor LED Screen Cabinet Size 960x960mm SMD3535 Waterproof DOOH Billboard
Outdoor LED Screen Product Feature:
1) With good lightening accordance and no mosaic
2) Can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5)usually use for advertising outdoor
| Outdoor LED Screen Specification | ||||||||
| Pixe Pictch | 4mm | 5mm | 6mm | 8mm | ||||
| Led encapsulation | SMD1921 | SMD2727 | SMD2727 | SMD2727/SMD3535 | ||||
| Scan Mode | 1/8 Scan | 1/8 Scan | 1/8 Scan | 1/4 Scan | ||||
| Pixe Per Sq.m | 62,500 Pixel | 40,000 Pixel | 27,777 Pixel | 15,625 Pixel | ||||
| Module Size(W*H) | 256*128mm | 320*160mm | 192*192mm | 320*320mm/320*160mm | ||||
| Cabinet Size(W*H*D) | 1024*768mm | 960*960mm | 960*960mm | 960*960mm | ||||
| Cabinet Weight | 45KG/Pieces | 40KG/Pieces | 40KG/Pieces | 45KG/Pieces | ||||
| Max Power Consumption | 900Watt/㎡ | 900Watt/㎡ | 900Watt/㎡ | 900Watt/㎡ | ||||
| Brightness(Nits/㎡) | 5000Nits | 5500Nits | 6000Nits | 6500Nits | ||||
| Maintenance methods | Rear/Front Serviceable | |||||||
| Cabinet Material | Steel/Aluminun Option | |||||||
| Refresh Rate | 1920hz-3840hz | |||||||
| Color temperature | 6500K ±500(Adjustable) | |||||||
| Grey Scale | 14-16bits | |||||||
| Average Power Consumption | 500Watt/㎡ | |||||||
| IP Protection | IP65 Front/Rear | |||||||
| Operating Temperature | -20°C to 50°C | |||||||
| Working Voltage | 100-240Volt(50-60hz) | |||||||
Outdoor LED Screen FAQ
1. Do I need air-conditioner?
YES, if your local temperature is very high . The quantity depends on your dimension.
2. How to install led display?
We will provide drawings of steel structure or Teamviewer to help you install. If you need our engineers to help you, we can sent them to your installation place. But all the fees including air tickets(back and forth), transportation, living and
salary(USD80/per day/per person) need to be paid by you.

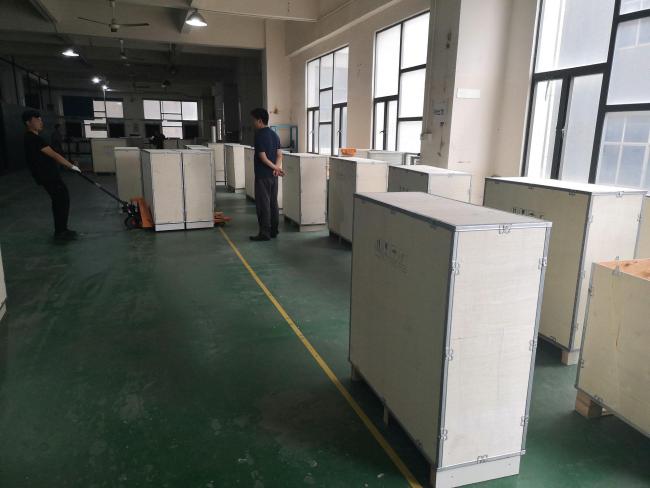

3. How to ship?
It's suggested by sea because the cost is much cheaper than by air.
4. Can I do wireless?
Yes, we can provide a set of control system to help you realize that. But I suggest you use computers, especially for your large size, because using computers can bring much better visual effect and better for outdoor advertising .
