P8 Outdoor Advertising LED Display Billboard Front Service Exterior Screen
Innovation P8 Outdoor Advertising LED Display Billboard Front Service Exterior LED Display
Detail of Advertising LED Display Screen :
1. Outdoor SMD triple LED high-definition display technology enables a broader range of vision.
2. Use more reliable integrated packaging technology.
3. vivid color performance, full-screen color and brightness, to achieve a high degree of consistency.
4. The unique mechanical structure design, easy accessibility, a person is able to dismantle the entire screen.
5. The horizontal and vertical viewing angles up to 140 degrees.
6. The focus on high-brightness SMD outdoor LED display solutions, protection class IP 65, brightness up to 6500cd / m.
| Advertising LED Display Screen | P4 | P5 | P6 | P8 | P10 |
| Pixel Pitch(mm) | 4 | 5 | 6.67 | 8 | 10 |
| LED Chips | SMD1921 | SMD2525 | SMD3535 | SMD3535 | SMD3535 |
| Pixel density(dots/m2) | 62500 | 40000 | 22477 | 15625 | 10000 |
| Driving Method | 1/10 scanning | 1/8 scanning | 1/6 scanning | 1/5 scanning | 1/2 scanning |
| Module Size(mm) | 320*160 | 320*160 | 320*160 | 320*160 | 320*160 |
| Module Resolution | 80*40 | 64*32 | 48*24 | 40*20 | 32*16 |

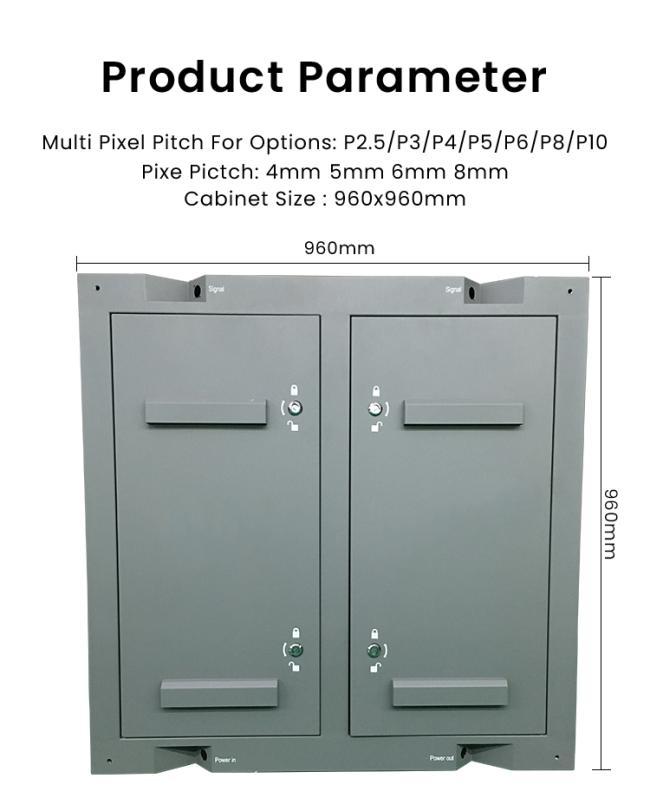

| Cabinet Size( W*L mm) | 960*960 | 960*960 | 960*960 | 960*960 | 960*960 |
| Cabinet Material |
Magnesium Alloy |
Magnesium Alloy |
Magnesium Alloy |
Magnesium Alloy |
Magnesium Alloy |
| Cabinet Weight( Kg/m2 ) | 35 | 35 | 35 | 35 | 35 |
| Max.Consumption(W/m2) | 800 | 800 | 800 | 800 | 800 |
| Ave.Consumption(W/m2) | 350 | 350 | 350 | 350 | 350 |
| Brightness( Nits ) | ≥5500 | ≥5000 | ≥5500 | ≥5800 | ≥6000 |
| Viewing Angle (Vertical / Horizontal) | 120° / 120° | 120° / 120° | 120° / 120° | 120° / 120° | 120° / 120° |
| Refresh Rate | ≥1920Hz | ≥1920Hz | ≥1920Hz | ≥1920Hz | ≥1920Hz |
| IP Level | IP65 | IP65 | IP65 | IP65 | IP65 |
Advertising LED Display Screen of Our Service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.
6. Quality test report for every order.
7. Free technician training.
8. Special service for big project, such as stadium, exhibitions, squares and so on.
