Kingvisionled 7500nits Outdoor LED Advertising Display SMD MBI5124 1920HZ Weather Proof
Kingvisionled 7500nits Outdoor Led Advertising Display SMD MBI5124 1920HZ Weather Proof

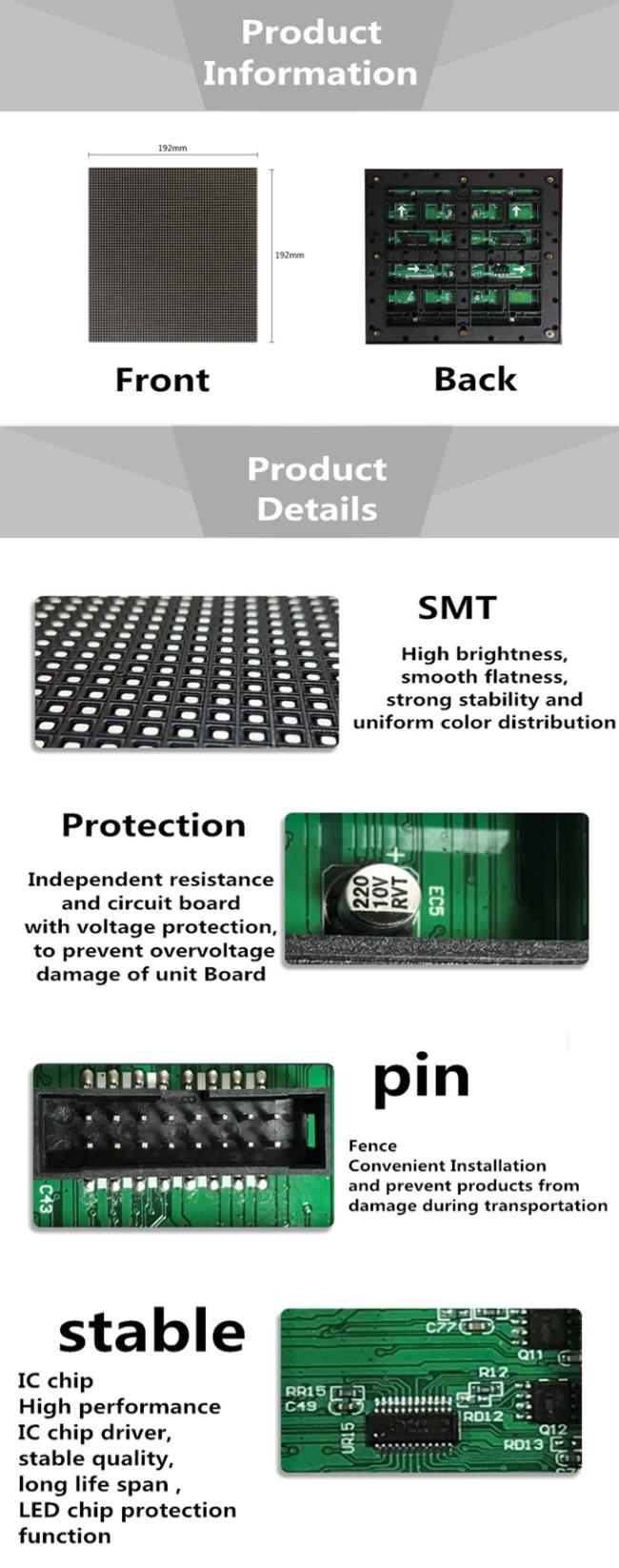

Detail of Advertising LED Display Screen :
Function of LED Display:
1. High reliability. 24h/7day advertising all the time and all weather conditions.
2. Energy-saving technology,due to special driver ic and led and power supply
3. High brightness lamp beads, brightness can be automatically adjusted
4. TiSuper high brightness 6000nits makes led screen still be very clear under the sunshine.dy and beautiful , good heat dissipation.
5. High refresh rate makea good visual effect .
6. High Quality: CE, RoHs, FCC, UL, IP65, ISO9001 passed + 96 Hours serious testing time.
7. Long life span: over100,000hours, warranty at least 2 years.
8. You need = We design: Provide Personal- Customized led display offer
| Advertising LED Display Screen | P4 | P5 | P6 | P8 | P10 |
| Pixel Pitch(mm) | 4 | 5 | 6.67 | 8 | 10 |
| LED Chips | SMD1921 | SMD2525 | SMD3535 | SMD3535 | SMD3535 |
| Pixel density(dots/m2) | 62500 | 40000 | 22477 | 15625 | 10000 |
| Driving Method | 1/10 scanning | 1/8 scanning | 1/6 scanning | 1/5 scanning | 1/2 scanning |
| Module Size(mm) | 320*160 | 320*160 | 320*160 | 320*160 | 320*160 |
| Module Resolution | 80*40 | 64*32 | 48*24 | 40*20 | 32*16 |
| Cabinet Size( W*L mm) | 960*960 | 960*960 | 960*960 | 960*960 | 960*960 |
| Cabinet Material |
Magnesium Alloy |
Magnesium Alloy |
Magnesium Alloy |
Magnesium Alloy |
Magnesium Alloy |
| Cabinet Weight( Kg/m2 ) | 35 | 35 | 35 | 35 | 35 |
| Max.Consumption(W/m2) | 800 | 800 | 800 | 800 | 800 |
| Ave.Consumption(W/m2) | 350 | 350 | 350 | 350 | 350 |
| Brightness( Nits ) | ≥5500 | ≥5000 | ≥5500 | ≥5800 | ≥6000 |
| Viewing Angle (Vertical / Horizontal) | 120° / 120° | 120° / 120° | 120° / 120° | 120° / 120° | 120° / 120° |
| Refresh Rate | ≥1920Hz | ≥1920Hz | ≥1920Hz | ≥1920Hz | ≥1920Hz |
| IP Level | IP65 | IP65 | IP65 | IP65 | IP65 |
Advertising LED Display Screen FAQ
Q1:What’s the function? A1:It can play video , images, texts etc.
Q2:LED display modules are generally expressed in PX,such as P2 P3 P4...P8 P10,what does this mean? A2:P3 P4...P8 P10 means that the pixel pitch is 3mm 4mm...10mm,which determines resolution of a display.Pixel pitch smaller,led resolution higher.
Q3:What pixel pitch should I choose on my display? A3:It’s mainly depends on the viewing distance,the size of the display screen,the desired effect the application scenario and the customer budget.
Q4:How to in stall? A4:Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram,free remote debugging.We can also send our engineers to the site to guide the installation if needed.
Q5:What about your quality? A5:The quality of our display is excellent.We use the materials of high quality suppliers.strictly control the production process,and pass the multiple quality inspection to ensure that every product is qualified.
Q6:How about the warranty? A6:2-5 years warranty.
Q7:What kind of display we provide? A7:We have indoor/outdoor/rental/Advertising/transparent and poster LED display for your choice.
