Die Casting Aluminum Cabinet Indoor Waterproof Rental LED Screen P2.976 P3.91
Price:
$210.00/Pieces 8-99 Pieces
MOQ:
8 Pieces
Delivery Time:
15 working days
Brand:
King VisionLed
Product Description
P2.976 P3.91 P4.8 Die Casting Aluminum Cabinet Indoor Waterproof Rental Led Screen

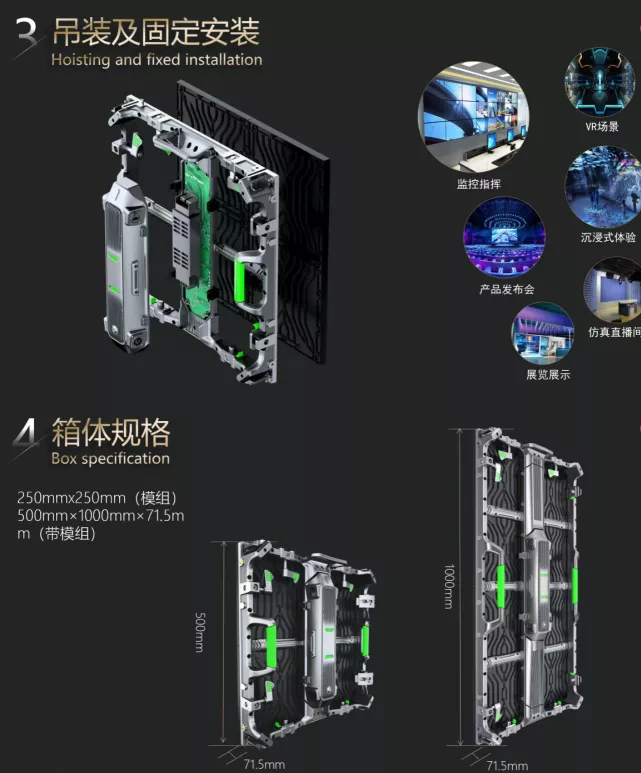

Dual Service Design
Rental LED display adopts Magnet Adsorption LED Panel to make the cabinet is accessed with frontal & rear design. easy
installation for LED panels.
installation for LED panels.
Detachable Back Cover, High Waterproof
Hard Connection Design with detachable Power box and HUB board,
High IP65 Waterproof with Double Sealing Rubber Ring,
Quick Mounting of Buckles for assemble and disassemble of back cover.
High IP65 Waterproof with Double Sealing Rubber Ring,
Quick Mounting of Buckles for assemble and disassemble of back cover.
Speification of Outdoor Rental Led Display:
| Module Number | PH2.604 | PH2.976 | PH3.91 | PH4.81 |
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Physical Density | 147456 pixels/m2 | 112896 pixels/m2 | 65536 pixels/m2 | 43264 pixels/m2 |
| Led Arrangement | 3 in 1SMD | 3 in 1 SMD | 3 in 1SMD | 3 in 1 SMD |
| Module Resolution | 96*96 pixels | 84*84 pixels | 64*64 pixels | 52*52 pixels |
| Module Dimensions | 250*250 mm | 250*250mm | 250*250 mm | 250*250mm |
| Cabinet Resolution | 192*192 pixels | 168*168 pixel | 128*128 pixels | 104*104 pixel |
| Cabinet Dimensions | 500*500 mm | 500*500 mm | 500*500 mm | 500*500 mm |
| Cabinet Weight | 7.5kg | 7.5kg | 7.5kg | 7.5kg |
| Brightness | ≥5000 nits | ≥5000 nits | ≥5000 nits | ≥5000 nits |
| Max Power Consumption | 180w/panel | 180w/panel | 180w/panel | 132w/panel |
| Ave Power Consumption | 60w/panel | 60w/panel | 60w/panel | 44w/panel |
| Viewing Angle | 160°(W) 160°(H) | 160°(W) 160°(H) | 160°(W) 160°(H) | 160°(W) 160°(H) |
| Operating Power source | 110-240V AC 50-60Hz | 110-240V AC 50-60Hz | 110-240V AC 50-60Hz | 110-240V AC 50-60Hz |
| Operating Temperature | -20℃～+50℃ | -20℃～+50℃ | -20℃～+50℃ | -20℃～+50℃ |
| Refresh Rate | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
| IP Rating | IP65 | IP65 | IP65 | IP65 |
| Signal Input Source | Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI | Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI | Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI | Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI |
| Verification | ETL, FCC, CCC, RoHS,CE | ETL, FCC, CCC, RoHS,CE | ETL, FCC, CCC, RoHS,CE | ETL, FCC, CCC, RoHS,CE |
Curved Installation
High Precision Curve Lock design (-10° to +10°) is adopted to solve the problem that the old curved lock is difficult to use
before. Rotational control, more accurate, easy to use and quickly adjust curve degree.
before. Rotational control, more accurate, easy to use and quickly adjust curve degree.
Our Service of Outdoor Rental Led Display:
If you choice our Led display, we will offer other services to you.
1.We will provide some spare parts for free like Led module, power supply. This components is expensive and also the main of a led screen.
2.We will support this truss and screws from back to hold this panel, and hang this Led display.
3.We have engineers will help you to master the software, when you have the problem on our led screen. We usually do it with remote control by Teamviewer.
4. Our lead time need 15 working days,including 3 days to check and aging.
5. We will offer the service to print your logo or brand on our flight case and cabinets for free.
If you choice our Led display, we will offer other services to you.
1.We will provide some spare parts for free like Led module, power supply. This components is expensive and also the main of a led screen.
2.We will support this truss and screws from back to hold this panel, and hang this Led display.
3.We have engineers will help you to master the software, when you have the problem on our led screen. We usually do it with remote control by Teamviewer.
4. Our lead time need 15 working days,including 3 days to check and aging.
5. We will offer the service to print your logo or brand on our flight case and cabinets for free.
