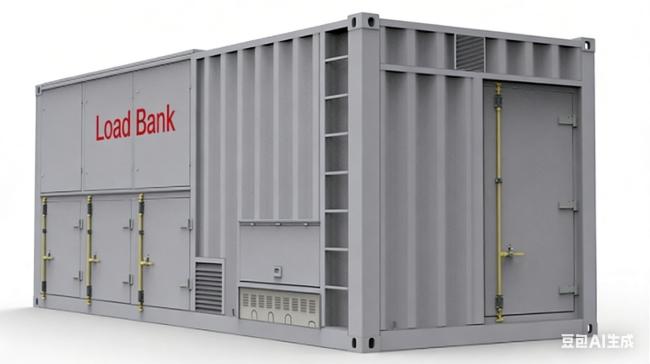

Inteligent Resistive Load Bank 1000KW Single and Three Phase 400V High Precision Digital Display

Price Negotiable

Price: USD18750-20000/Unit

MOQ: 1

Delivery Time: 60 days

Brand: Kingway

Product Description

Technical Specifications
Rated Power	Resistive 1000KW
Rated Voltage & Frequency	400VAC, 3 phase 4 wire, 50/60Hz (L1, L2, L3)
Power Factor	1
Load Step	Respectively: 1, 2, 2, 5, 10, 20, 20, 50, 100, 200, 200, 200, 200 KW
Frequency	50/60HZ
Insulation Class	F Class
Load Tolerance (Each Step)	±5%
Load Tolerance (Overall)	±3%
Key Features
High-Quality Resistors	Alloy Resistors
Cooling System	Forced-air Cooling
Control Modes	Local Manual Control or RS232/RS485
Safety Protection
Over-temperature Alarm	Automatic unload and alarm when temperature is over safety thresholds
Fan Failure Protection	Machine could not load testing before power of fan is power on
Emergency Stop	User can press emergency stop button in panel to unload immediately when load bank is abnornal while working
Short Circuit Protection	The load circuit is equipped with a fuse to avoid damage to the equipment by short-circuiting the load or excessive current
Applications
Generator Set Testing	Prevent "Wet Stacking" and perform full-load exercises
UPS & Battery Bank Maintenance	Periodic discharge testing to verify actual capacity
Data Center Acceptance	Simulate server heat and electrical loads for comprehensive commissioning
R&D/Laboratory	For performance burn-in and stress testing of power electronics
Product Informaiton
Product Size	1400x2440x1680mm
Product Weight	1,500 Kgs
