LYSO Ce Scintillator Crystal For Nuclear Medicine And Nuclear Physics
LYSO:Ce Scintillator Crystal for nuclear medicine and nuclear physics
The LYSO crystal is an ideal generation sintillator crystal. LYSO stands for Cerium doped Lutetium Yttrium Orthosilicate. This crystal has the advantages of high light output, high density, fast decay time, good energy resolution and low cost. These properties mean that LYSO is an ideal candidate for a range of ray detection applications in nuclear physics and nuclear medicine, which require higher though improved timing resolution and superior energy revolution. Kinheng can produce LYSO in high volume and can supply finished pixel, assembled customer specified array, or module configurations.
Properties:
| Crystal System | Monoclinic |
| Density(g/cm3) | 7.15 |
| Hardness (Mho) | 5.8 |
| Refractive Index | 1.82 |
| Light Output (Comparing NaI(Tl)) | 65~75% |
| Decay Time (ns) | ≤38-42 |
| Peak Wavelength (nm) | 420 |
| Anti-radiation (rad) | 1×108 |
Advantage:
Good light output
High density
Fast decay times, good timing resolution
Energy resolution
Non-hygroscopic
Enhanced LYSO can achieve fast decay time for ToF-PET
Application:
Nuclear medical imaging (Especially in PET, ToF-PET)
High energy physics
Geophysical exploration

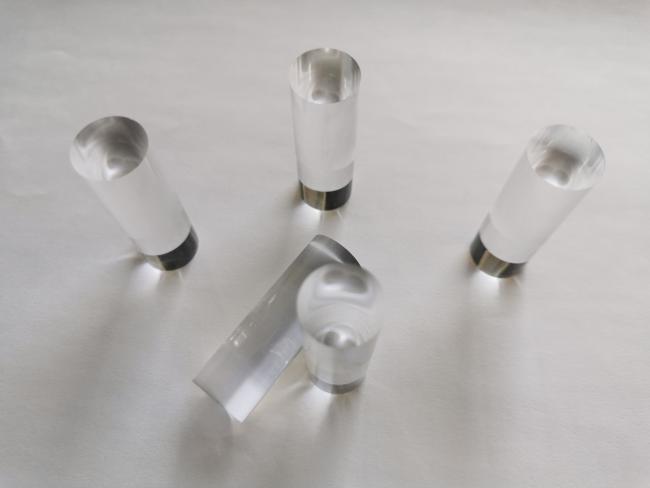

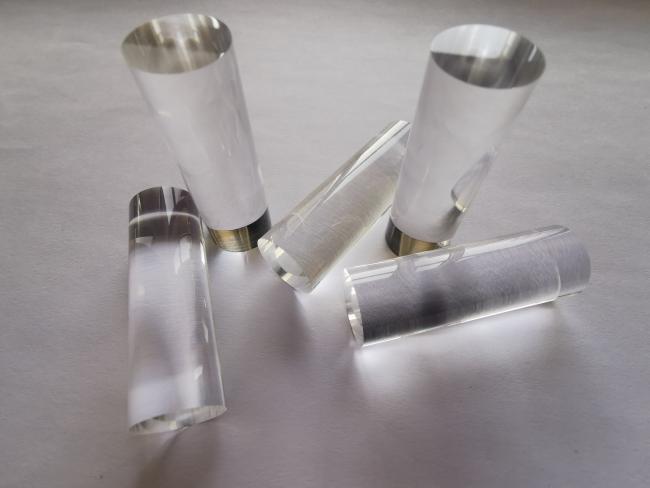

Product shots:
FAQ:
1. Q: Are you a factory manufacturer?
A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.
2. Q: Where is your main market?
A: Europe, America, Asia.
