Lutetium Aluminum Garnet Gem Jewellery LuAG:Ce Crystal
Lutetium aluminum garnet Gem Jewellery LuAG:Ce crystal
Lutetium aluminum garnet (LuAG:Ce), activated by cerium is a well established scintillating material with the primary advantages of high density (6.73g/cm3) and fast decay (70ns), which is suitable for thin imaging screens. Besides, Ce:LuAG has a high photon yield and a central emission at 510nm that well matched with photodiode and avalanche diode readout. With very good chemical, mechanical and temperature resistance, Ce:LuAG is also an ideal choice for medical scanning systems and high-energy particle detectors.
Properties:
| Crystal System | Cubic |
| Density(g/cm3) | 6.73 |
| Hardness (Mho) | 8.5 |
| Light Yield (photons/keV) | 25 |
| Energy Resolution(FWHM) | 6.5% |
| Decay Time(ns) | 70 |
| Center Wavelength | 530 |
Advantage:
Non-hygroscopic
Stable scintillating characteristics
Fast decay time
Application:
X ray imaging
Imaging screen

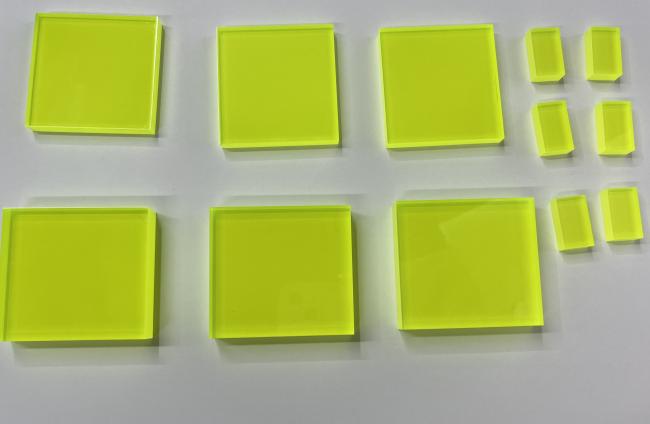

Product shots:
FAQ:
1.Q: Are you a factory manufacturer?
A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.
2.Q:Where is your main market?
A:Europe, America, Asia.
