2L 4L 2 Inch 3 Inch 7% 8% Energy Resolution NaI Scintillator Crystal Transparent
2L 4L 2 inch 3 inch 7% 8% energy resolution NaI scintillator crystal
NaI(Tl) is the most widely used scintillation material because of cost-effective. It has high light output, high detection efficiency, larger-size available and cost-effective comparing with other scintillation materials. NaI(TI) is hygroscopic and must be hermetically encapsulated in housing (Stainless steel, Titanium alloy, Al housing alternative).Kinheng can ensure energy resolution 7%-8.5% high quality NaI(Tl ) crystal products with variety of sizes.
Properties:
| Density(g/cm3) | 3.67 |
| Melting Point (K) | 924 |
| Thermal expansion coefficient (K-1) | 47.4 x 10-6 |
| Hardness (Mho) | 2 |
| Hygroscopic | Yes |
| Wavelength of Emission Maximum (nm) | 420 |
| Refractive Index at Emission Maximum | 1.85 |
| Primary Decay Time(ns) | 250 |
| Temperature Coefficient of Light Yield | 0.3% K-¹ |
| Light Yield (photons/keV) | 38 |
Advantage:
Cost effective
Larger size available
High light output/ detection efficiency
Single /poly/forged crystal available
Wavelength well matched PMT read out
Application:
Nuclear medicine
Environmental measurements
Geophysics
High-energy physics
Radiation detection

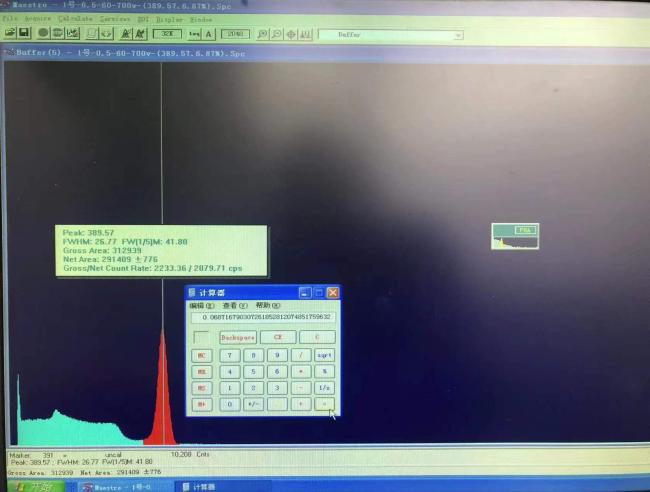

%PHR Sample:
Product shots:
FAQ:
1.Q: Are you a factory manufacturer?
A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.
2.Q:Where is your main market?
A:Europe, America, Asia.
