160KW GB/T DC EV Charging Station 700V High Voltage EV Charger
GB/T18487 GB/T20234 GB/T27930 160KW DC EV Charging Station IP 54 12V / 24V
product description
This charger is specially designed for the charging needs of lithium battery electric vehicles. The product adopts a modular design, which can be used in parallel with multiple modules, and has good fault tolerance. Through the CAN field bus, it can communicate with the battery management system BMS and the power background monitoring system in real time, and carry out all-round monitoring, protection and optimization of the charging process of the lithium power battery. The operation interface adopts humanized touch screen, the interface is simple and the operation is convenient.
Product Parameters
| Product name | EV Fast Charger | ||
| Input voltage | AC 380V ±10% | ||
| AC power input connection | 3P+N+PE | ||
| Operating Frequency | 50hz | ||
| Power Factor | >0.99 | ||
| Output rated power | 160A | ||
| Output Current | 0-160 | ||
| Current limit adjustable range | 10%~100% | ||
| Current error | ≤1% | ||
| Current accuracy | ≤±1% | ||
| Module Unbalance | ≤5% | ||
| Ripple coefficient | ≤±5% | ||
| Charge gun cable length | 2 guns/guns 7m cable | ||
| Auxiliary power supply | 12V/24V | ||
| Display method | Touch screen | ||
| Protection level | IP54 | ||
| Cooling method | Forced air cooling | ||
| mounting method | Floor mounting | ||
| Reference size | 750*460*1680 | ||
Main features
Main features of DC EV Fast Charger
1. High efficiency: efficiency up to 94%, can save users electricity and reduce heat loss
2. High power density: small size, saving space and adapting to the development direction of future charger
3. Input high voltage shock resistance: greatly improves system reliability.
4. Modular design: multiple modules work in parallel, with strong fault tolerance, a module failure does not affect the use of the whole machine, it can be convenient to repair and replace a single module.
5. One machine with four charging functions:with four DC charging interfaces, and under the control of charging process, automatic dc output switch, with power distribution function.

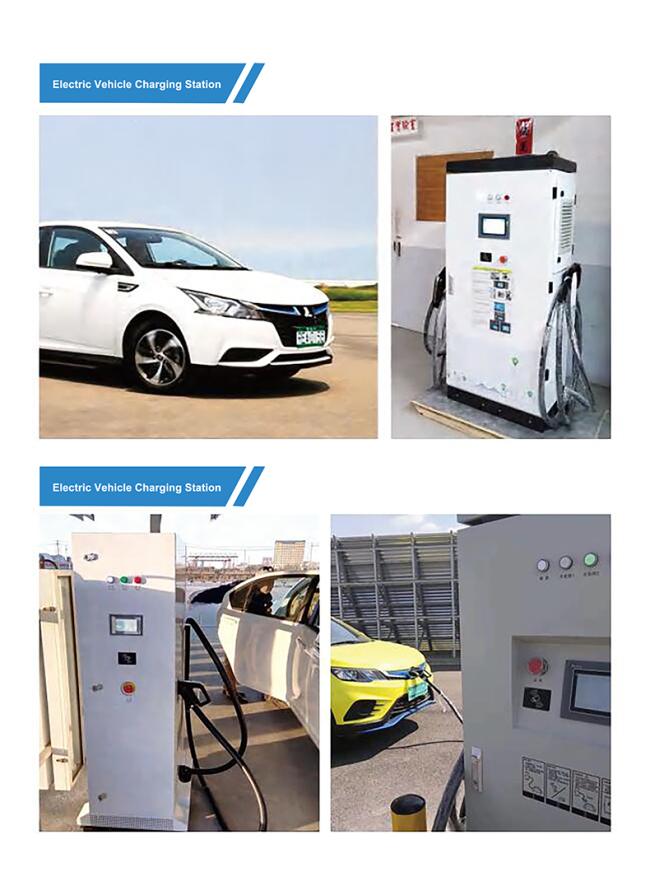

Details Images
Company Profile
Chengdu Xiangdao Technology Co., Ltd. is a company specializing in the overall solution of development, design sales and operation of new energy, including electric vehicle charging piles, fast charging stations, solar photovoltaic power generation systems, solar application products, etc..
We are committed to providing total solutions for the application of new energy technologies.
We have 5 major product lines.
1. DC charging pile: 30KW~360KW DC charging pile
2. AC charging pile: 7KW/11KW/22KW/42KW AC charging pile
3. Portable charger gun: 3.5KW/7KW portable charging guns.
4. Solar power generation components: photovoltaicpanels, controllers, inverters, energy storage batteries a full set of power generation components.
5. Solar energy applicationproducts: solar panel, solar reding lights, solar tents, solar street lights, solar . . monitoring systems, etc..
