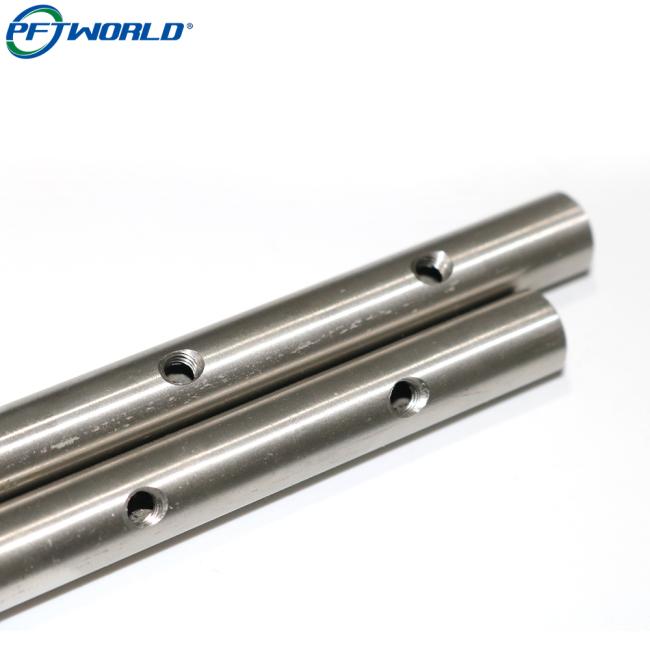

In the realm of high-performance mechanical components, custom CNC machined stainless steel shaft parts stand out as critical elements across industries such as aerospace, automotive, marine, robotics, and heavy machinery. These shafts are not off-the-shelf items—they are precision-engineered components tailored to exact customer specifications, ensuring optimal performance, durability, and reliability under the most demanding conditions.

What Are Custom CNC Machined Stainless Steel Shaft Parts?

A stainless steel shaft is a cylindrical component that transmits motion or torque between different parts of a mechanical system. When these parts are described as “custom CNC machined,” it means they are manufactured using Computer Numerical Control (CNC) machining processes to highly specific designs and tolerances provided by the customer.

The result is a shaft that fits precisely within an assembly, often with complex geometries, features like keyways, threads, grooves, and splines, and exceptional surface finish and dimensional accuracy.

Why Stainless Steel?

Stainless steel is the preferred material for many shaft applications due to its:

• Excellent corrosion resistance (ideal for marine, chemical, and food environments)

• High strength and toughness

• Good machinability with the right tools and methods

• Resistance to wear, temperature extremes, and impact

• Long service life and low maintenance needs

Common stainless steel grades for shaft machining include:

• 303 – Good machinability, corrosion resistance, and non-magnetic.

• 304 – General-purpose stainless with excellent corrosion resistance.

• 316 – Superior corrosion resistance, especially in chloride-rich environments.

• 17-4 PH – Precipitation-hardened for high strength and moderate corrosion resistance.

The CNC Machining Process for Stainless Steel Shafts

Creating custom CNC machined stainless steel shaft parts involves several detailed steps to ensure quality and precision:

1.Design & Engineering

The customer supplies a detailed technical drawing or CAD file specifying dimensions, tolerances, and functional requirements.

2.Material Selection

Based on the application, the most suitable grade of stainless steel is chosen.

3.Machining Operations

CNC lathes and mills are used to perform:

• Turning – To achieve the desired outer diameter.

• Milling – For flats, slots, and keyways.

• Threading – Internal or external threads.

• Drilling/Boring – For axial holes or through-shafts.

• Grinding – For high-precision surface finishing.

4.Finishing & Treatments

Shafts may undergo polishing, passivation, heat treatment, or surface coating depending on application needs.

5.Inspection & Quality Control

Precision measuring equipment (CMMs, micrometers, gauges) ensures every specification is met.

Key Features of Custom Stainless Steel Shafts

• Tailored Geometry: Designed to integrate seamlessly with other parts of an assembly.

• Tight Tolerances: Often within ±0.001 inches for critical diameters or features.

• Superior Surface Finish: Reduced friction and wear in moving assemblies.

• High Load-Bearing Capacity: Designed for torsional, bending, and axial loads.

• Longevity: Resistant to fatigue, corrosion, and mechanical failure.

Industries and Applications

Custom CNC machined stainless steel shaft parts are used in a wide variety of industries:

• Automotive: Axles, gear shafts, transmission components.

• Aerospace: Actuator shafts, turbine shafts, control mechanisms.

• Marine: Propeller shafts, rudder posts, winch drums.

• Medical Equipment: Precision drive shafts in imaging and diagnostic machines.

• Industrial Machinery: Conveyor rollers, spindles, motor shafts, pump shafts.

Benefits of CNC Machining for Shaft Manufacturing

• Consistency & Repeatability: Perfect for high-volume or high-precision production.

• Efficiency: Reduced manual labor and fast turnaround times.

• Complex Capabilities: Multi-axis CNC machining allows intricate details.

• Material Optimization: Minimal waste with optimized material usage.

• Customization: Complete control over every feature of the shaft.

Choosing a CNC Shaft Machining Service

• Experience with stainless steel machining

• Range of CNC equipment (e.g., 3-, 4-, or 5-axis machines)

• Quality assurance certifications (ISO 9001, AS9100, etc.)

• Engineering support for DFM (Design for Manufacturability)

• Fast prototyping and production scaling capability
