Aluminium Skirting Board Led Profile Lighting Strips Floor Waterproof Wall Corner

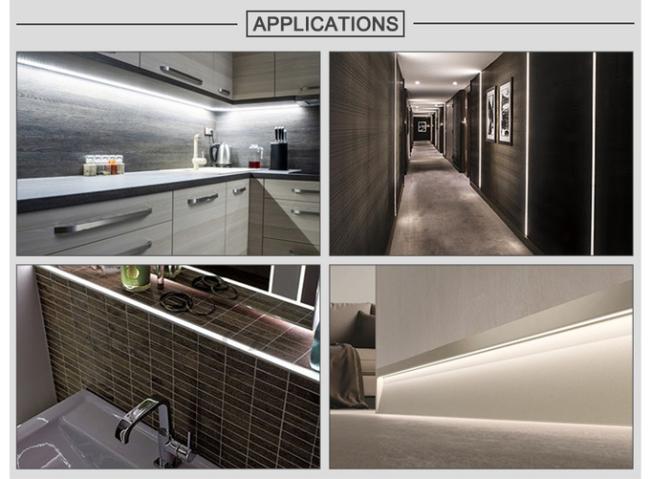

Application


These specially designed LED strip light aluminum channels can be installed perfectly in grooves of cabinets, ceilings, stairs, walls, and floors. The resulting lighting is aesthetically beautiful and stylish due to its elegant linear shape, spotless diffusion, and low profile, and unobtrusive contours.

Feature

The extrusion made from high quality aluminum (also available in a double-anodized version) is designed for flexible or rigid LED strips that are 8 - 10mm wide. One of the accessories offered for the extrusion are covers that shade and protect LEDs inside the profile. There are few types of covers: cover K (frosted or transparent), HS (frosted or transparent) or clear focusing covers, which allow you to obtain a 60 degree light angle. Covers are made of polycarbonate. Standard polypropylene end caps, electricity -conductive end caps, and mounting brackets (made from steel, zinc or chrome finish) can be used for the extrusion as supplementary accessories. End caps protect the extrusion from dust and other undesirable elements, which can make LED strips dirty and consequently deteriorate the quality of their light output. The extrusion can be mounted to surfaces with the use of double sided adhesive tape or mounting brackets. The mounting bracket guarantees easy and secure mounting of the extrusion surface. They can also work as connector between two extrusions.​

Use


Extrusions can be fixed in place using countersink screws, straight into the extrusion. Alternatively, you can purchase fixing brackets if you prefer. These can be attached in place, and once they are in position, your extrusion can be clipped onto them.

1. Ensure the channel is cut to the length you require and screw the mounting bracketsinto the surface of choice at 1m intervals.
2. Peel the adhesive backing off the run of LED tape and stick the length of the tapeinto the channel.
3. Clip the diffuser onto the channel.
4. Insert the end clips onto each end of the profile, ensuring the 2 core cable is threadthrough the hole in one of the end caps. This cable will attach to the driver or powersource.
5. Press the profile firmly into the mounting brackets so they click into place.
