Ready In Stock TUV Box Edge Aluminum Tile Trim , 12mm Ceramic Tile Metal Edge Strips

Application

This custom-built architectural product, aluminium tile trim (also known as wall tile) creates a smooth transition between the tile and another floor surface at the same height as the wood or carpet.
The aluminum tile edging outline creates an attractive finished edge while protecting your tiles from chipping. The profile is made of high-quality anodized aluminum with an integrated straight-edge grout line for faster installation without the need for gaskets between the trim and the tile.
Tile edge trim and tile corner trim, we can produce different varieties of straight edge tile trim corners to meet your needs. Provide CAD to respond immediately.


Feature

• This is a finishing and edge-protection profile for tiled edges and outside corners, and is distinguished by its squared reveal surface

• Prevents tile edges from chipping

• Ideal applications include incorporating as an accent within tile fields on floors and walls

• Create modern decorative designs, interesting contrasts and match with tile and grout

• Incorporate as a stair nosing or floor transition profile

• Made in aluminium

• Profile length is 8-ft and accommodates tiles that are 1/2-in thick

Use

- First measure the surfaces to be 100% sure how long tile trim do you need
- Next use a hacksaw or trim cutter to cut the edge of trim at an angle of 45 ° at wall edges, and feet trims together at an angle of 90 °
- Mark the surfaces with chalk, for the trim before installation
- Cover the area that will hold the trim with the tile adhesive and then press the trim firmly into it
- Next step is, to let it dry the adhesive overnight
- Check and fill the empty spaces around the trim with grout and leave it to dry
- Final step to enhance effectiveness of your work, apply sealer on the surfaces of the grout

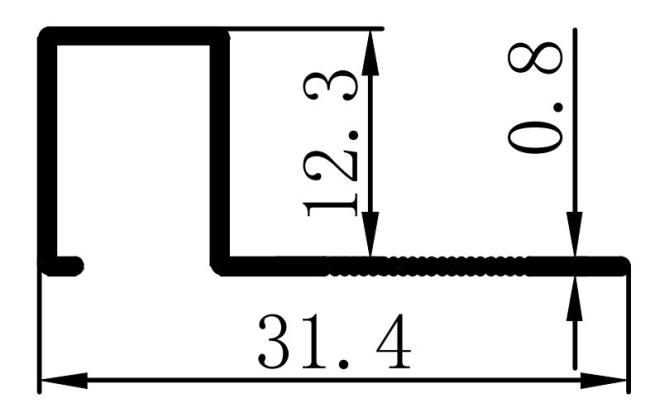

Specification
