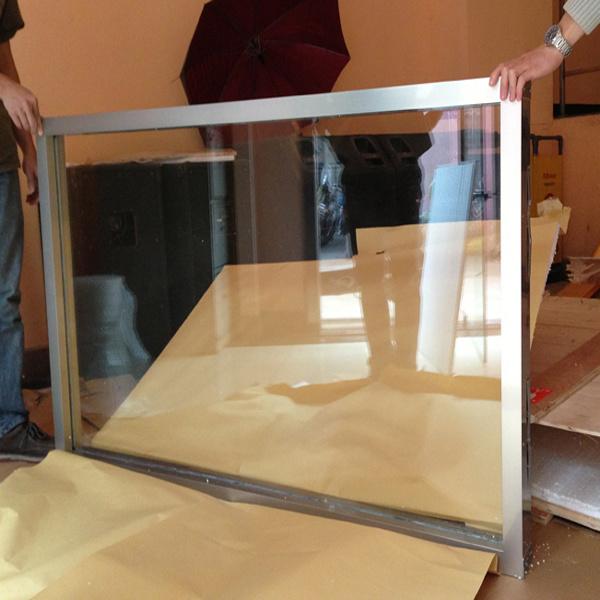

Zf3 8mm Thickness X Ray Lead Glass With High Transpartent
zf3 x ray lead glass with 8mm thickness with high transpartent
Description:
· Size can be with customized
· Thickness 10mm 12mm 15mm 18mm 20mm 25mm
· Lead equivalent can be offered customzed
· with frame and without frame both available
· Packing in wooden case
· Low MOQ
Specification:
| Equivalent | |||
| Standard Thickness Glass | |||
| Lead Glass(mmPb) | 1.8-2.0 | 2.5-2.7 | 3.0-3.2 |
| Thickness(mm) | 9-10 | 11-12 | 14-15 |
| X-Ray peak voltage(kv) | 150 | 150 | 200 |
We can offer different and customized size lead glass for Xray and CT Room installation.
Surely we can also offer lead door for shielding materials.
|
8mm (1.7mmpb) |
10mm (2.1mmpb) |
12mm (2.6mmpb) |
15mm (3.3 mmpb) |
18mm (3.96 mmpb) |
20mm (4.4 mmpb) |
25mm (6.71 mmpb) |
|
| 200*300 | 200*300*8 | 200*300*10 | 200*300*12 | 200*300*15 | 200*300*18 | 200*300*20 | - |
| 300*400 | 300*400*8 | 300*400*10 | 300*400*12 | 300*400*15 | 300*400*18 | 300*400*20 | - |
| 400*600 | 400*600*8 | 400*600*10 | 400*600*12 | 400*600*15 | 400*600*18 | 400*600*20 | - |
| 600*800 | 600*800*8 | 600*800*10 | 600*800*12 | 600*800*15 | 600*800*18 | 600*800*20 | - |
| 600*900 | 600*900*8 | 600*900*10 | 600*900*12 | 600*900*15 | 600*900*18 | 600*900*20 | - |
| 1000*800 | 1000*800*8 | 1000*800*10 | 1000*800*12 | 1000*800*15 | 1000*800*18 | 1000*800*20 | 1000*800*25 |
| 1200*800 | 1200*800*8 | 1200*800*10 | 1200*800*12 | 1200*800*15 | 1200*800*18 | 1200*800*20 | 1200*800*25 |
| 1200*900 | 1200*900*8 | 1200*900*10 | 1200*900*12 | 1200*900*15 | 1200*900*18 | 1200*900*20 | 1200*900*25 |
| 1200*1000 | 1200*1000*8 | 1200*1000*10 | 1200*1000*12 | 1200*1000*15 | 1200*1000*18 | 1200*1000*20 | 1200*1000*25 |
| 1200*1200 | - | 1200*1200*10 | 1200*1200*12 | 1200*1200*15 | 1200*1200*18 | 1200*1200*20 | 1200*1200*25 |
| 1500*900 | - | 1500*900*10 | 1500*900*12 | 1500*900*15 | 1500*900*18 | 1500*900*20 | 1500*900*25 |
| 1500*1000 | - | 1500*1000*10 | 1500*1000*12 | 1500*1000*15 | 1500*1000*18 | 1500*1000*20 | 1500*1000*25 |
| 1500*1200 | - | 1500*1200*10 | 1500*1200*12 | 1500*1200*15 | 1500*1200*18 | 1500*1200*20 | 1500*1200*25 |
| 1600*1000 | - | 1600*1000*10 | 1600*1000*12 | 1600*1000*15 | 1600*1000*18 | 1600*1000*20 | 1600*1000*25 |
| 1600*1200 | - | 1600*1200*10 | 1600*1200*12 | 1600*1200*15 | 1600*1200*18 | 1600*1200*20 | 1600*1200*25 |
| 1800*1000 | - | 1800*1000*10 | 1800*1000*12 | 1800*1000*15 | 1800*1000*18 | 1800*1000*20 | 1800*1000*25 |
| 1800*1200 | - | 1800*1200*10 | 1800*1200*12 | 1800*1200*15 | 1800*1200*18 | 1800*1200*20 | 1800*1200*25 |
| 2000*1000 | - | 2000*1000*10 | 2000*1000*12 | 2000*1000*15 | 2000*1000*18 | 2000*1000*20 | 2000*1000*25 |
| 2000*1200 | - | 2000*1200*10 | 2000*1200*12 | 2000*1200*15 | 2000*1200*18 | 2000*1200*20 | 2000*1200*25 |
| 2400*1200 | - | 2400*1200*10 | 2400*1200*12 | 2400*1200*15 | 2400*1200*18 | 2400*1200*20 | 2400*1200*25 |
We can offer customized size and shape lead glass to you.
