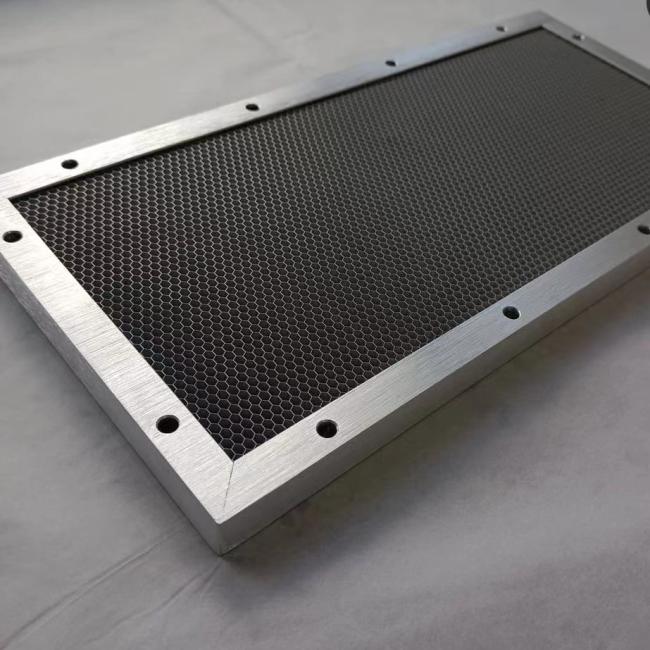

Emi Shielded Aluminum Honeycomb Panel Faraday Cages Cell Sizes 3.2mm
Emi Shielded Aluminum Honeycomb Panel Faraday Cages Cell Sizes 3.2mm
1.Specification:
EMC Woven mesh ventilation panels are used for heating, air flow for cooling and ventilation in electronic enclosures without compromising the shielding integrity of an enclosure.
Aluminium EMC Woven mesh ventilation panels consist of 3 layers of pleated Aluminium woven mesh, trapped between Aluminium kick-plates, in a rigid Aluminium frame, pre-drilled or with fasteners made to your specifications or flow drilled thread holes.
The 3 layers of pleated wire mesh are separated by the pleats being of different height, thus enabling the vent to have a high dust holding capacity.
Approximately 95% of the 9520 series EMC Woven mesh ventilation panels are made to customer specifications, and are all made to comply an order.
These panels can be treated with a variety of finishes to provide corrosion protection or improve conductivity. Air filter oil can be applied to the Aluminium filter media to assist in dirt and dust retention. Panels with a gasket groove have a knitted monel wire mesh gasket as standard. Other frames can be provided with an additional EMI Gasket.
2.Details :
| material | brass /Tin plated steel | ||
| core area size 300mm*300mm | hole cell 3.2mm | hole cell 4.2mm | hole cell 5.2mm |
| thickness 25mm | 300mm*300mm*25mm*3.2mm | 300mm*300mm*25mm*4.2mm | 300mm*300mm*25mm*5.2mm |
| thickness 50mm | 300mm*300mm*50mm*3.2mm | 300mm*300mm*50mm*4.2mm | 300mm*300mm*50mm*5.2mm |
3.Benefits
Light weight
High shielding performance
Very low air-flow resistance
Reduction of turbulence
4.FAQ:
1. Can we get a product sample?
Yes, we can offer sample to you.
2. As for the honeycomb, what materials can you offer ?
We can offer brass / stainless steel/ tin plated steel materials....
3. What is packing ?
It is packed with wooden case.
