Emi Shielding Honeycomb Waveguide Panels For Rf Cage

Quick Detail :

1. Brass Honeycomb with/without frame

2. Stainless Steel Honeycomb Filter

Description:

Honeycomb Vent is a special but indispensable part of an MRI/ RF shielding room and shielded cabinet.

In common, we distinguish it from its material, thickness, cell hole size, and outer size, with or without a frame.
We have Stainless Steel, Tin plates, Brass, and even Aluminum materials

Product features:

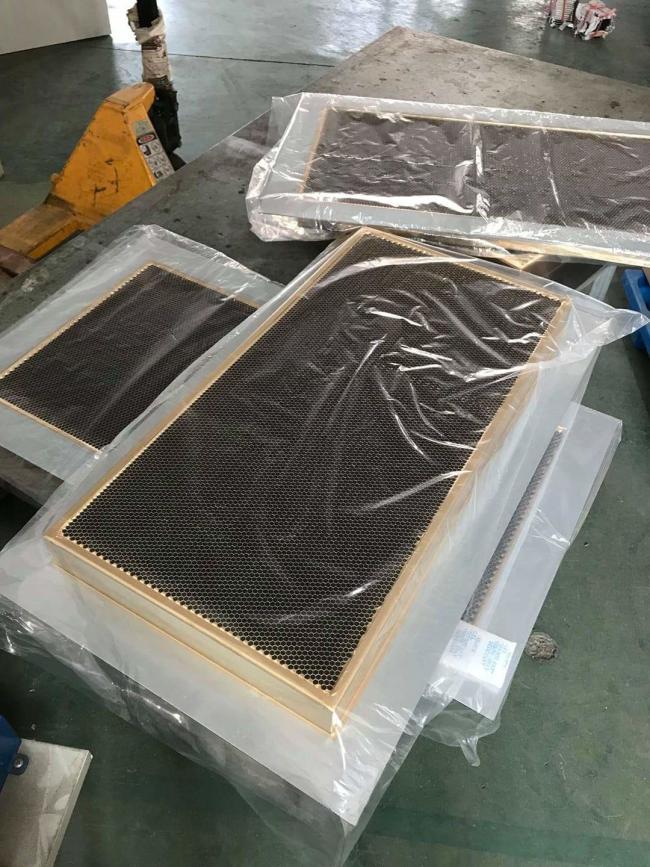

The cut-off waveguide ventilation window is composed of hexagonal honeycomb core material with a frame.

On the premise of ensuring efficient ventilation,

the principle of high pass and low resistance of the cut-off waveguide

is used to effectively shield electromagnetic waves. Generally speaking,

the cut-off principle of the cut-off waveguide is l ≥ 5D

(L: waveguide length, D: maximum diameter of waveguide section),

Therefore, the shielding effectiveness of the cut-off waveguide ventilation window

depends on the length of the waveguide (i.e. the thickness of the honeycomb core

and the size of the aperture of the honeycomb core)

Application :

The honeycomb filter and Waveguide product can be well used MRI RF Room, EMC EMI Room installation.

Honeycomb Filter Specification:
