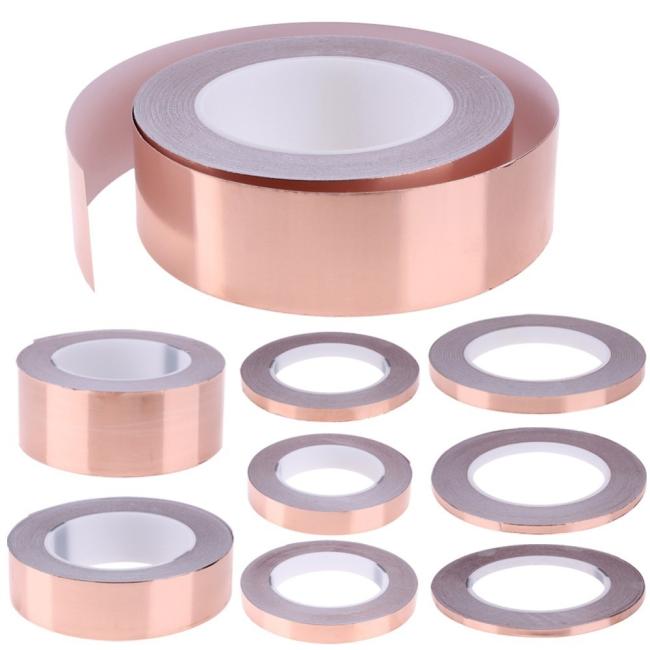

99.95% Magnetic 50m Length Conductive Adhesive Copper Tape For Emi Shielding
99.95% Magnetic Conductive Adhesive Copper Tape for EMI Shielding
Product description
The purity of copper foil is higher than 99.95%, and its function is to eliminate electromagnetic(EMI) interference,
isolate electromagnetic waves on the human body injury, avoid unwanted voltage and current without affecting functionality.
In addition, electrostatic discharge after the ground has a good effect.
Specification of 0.1mm thickness copper tape
| Specification(0.15mm thickness) | |||||
| Item | Unit | Specification | Texting Standard | Texting Method | Others |
| Copper Thickness | u | 100 | 100± 3 | ||
| Basis Weight | g/ m2 | 160 | 160± 10 | ||
| Copper Foil | % | 99.95 | 99.95 | ||
| Glue Thickness | u | 35 | 35+ 3 | ASTM- 1000 | |
| Composition | ----- | Acrylic glue | Acrylic glue | ||
| Total thickness | u | 60 | 60+5 | ||
| Steel Adhesion | kg/ 1" | 0.8 | 0.8 | ASTM- 1000 | Initial adhesion tester |
| Initial Adhesion | kg/ 1" | 1 | 1 | J.DOW | Electronic Stripping Tester |
| Rentention(cohesion) | kg/ h | 48 | 48 | PSPC-7 | Viscosity Tester |
| Weather Resistance | ℃ | minus10- 120℃ | minus10-120℃ | ||
| Inventory Condition | ----- | ----- | temperature:25℃ | ||
| RH:65% | |||||
| Insulation Resistance | Ω | 0.01- 0.06 | 0.01-0.06 | ||
| Inventory Validity | 6 month | |
|||
Application
Suitable for all kinds of transformers, mobile phones, computers, PDA, PDP, LCD monitors, notebook computers, photocopiers,
and other electronic products where domestic electromagnetic shielding.
FAQ:
Q1. Can I have a sample order for lead glass?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Usually 5-7 working days.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc is available.
