Stainless Steel Honeycomb Waveguide Air Vents With Frame And Hole For Mri Room

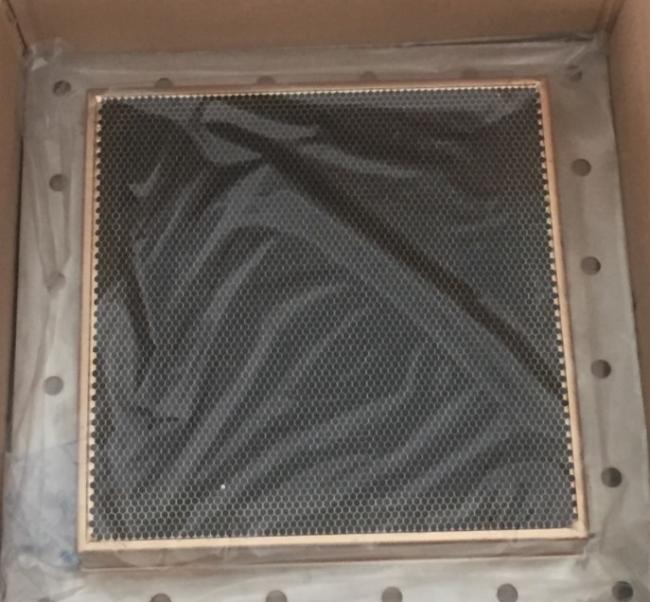

Stainless Steel Waveguide Honeycomb with Frame and Hole for MRI Room
Product Description
In order to keep the air flow in the machine room, the window on the shield shell needs to be opened, but the waveguide window must be installed to meet the response standard. The ventilated waveguide window is a cut-off waveguide beam composed of many small cut-off waveguides, whose cross-section shape is hexagon. The cross-sections of the ventilated cut-off waveguide window are generally circular, square and hexagon.The channel area of hexagonal waveguide is larger than that of square waveguide under the same insertion and attenuation capability.
Product Specification
| Material | Thickness | Cell Hole Size | Outer Size | Frame |
| Stainless Steel | 25mm, 50mm, Customized | 3.2mm, 4.8mm, 5.2mm, 6.2mm, 8.2mm | 300*300, 300*600, 600*600, Customized | H type, C type, without frame. |
| Tin Plate | 25mm, 50mm, Customized | 3.2mm, 4.8mm, 5.2mm, 6.2mm, 8.2mm | 300*300, 300*600, 600*600, Customized | H type, C type, without frame. |
| Brass | 25mm, 50mm, Customized | 3.2mm, 4.8mm, 5.2mm, 6.2mm, 8.2mm | 300*300, 300*600, 600*600, Customized | H type, C type, without frame. |
| Aluminum | 25mm, 50mm, Customized | 3.2mm, 4.8mm, 5.2mm, 6.2mm, 8.2mm | 300*300, 300*600, 600*600, Customized | H type, C type, without frame. |
