Waterproof Conductive Adhesive Copper Tape Emi Shielding Crafts Electrical Repairs
Price:
USD 10 per roll
MOQ:
5 rolls
Delivery Time:
Negotiable
Brand:
Jovi
Product Description

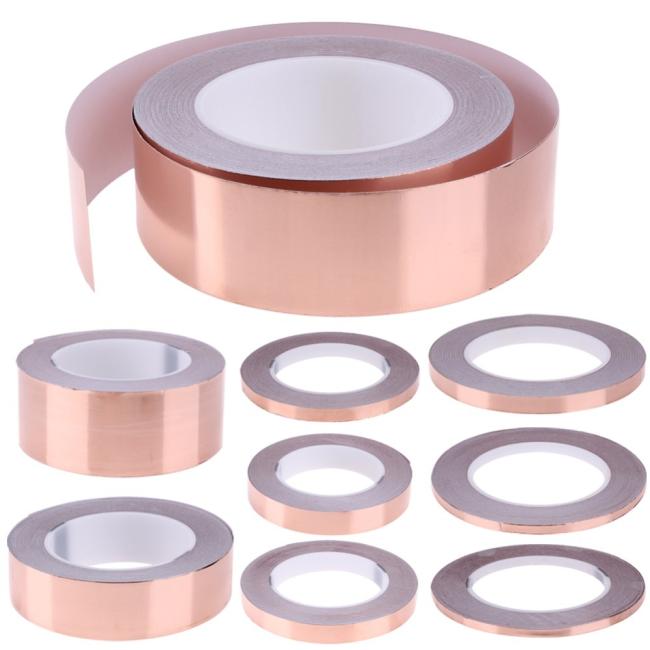

Conductive Adhesive Copper Tape
Product description
Our copper foil tape has strong adhesive force, good electrical conductivity, strong sealing performance, easy to fit,
anti- aging, tortuous use, can be customized according to customers.
| Specifications: | |||||
| Item | Unit | Specification | Texting Standard | Texting Method | Others |
| Copper Thickness | um | 25 | 25+ 3 | ||
| Basis Weight | g/ m2 | 160 | 160+ 10 | ||
| Width | mm | 25 | ± 0. 2mm | ||
| Copper Foil | % | 99. 99 | 99. 99 | ||
| Glue Thickness | um | 25 | 25+ 3 | ASTM- 1000 | |
| Composition | - | ||||
| Total thickness | um | 50 | 50+ 5 | ||
| Steel Adhesion | kg/ 1" | 0. 8 | 0. 8 | ASTM- 1000 | Initial adhesion tester |
| Initial Adhesion | kg/ 1" | 1 | 1 | J. DOW | Electronic Stripping Tester |
| Rentention(cohesion) | kg/ h | 48 | 48 | PSPC- 7 | Viscosity Tester |
| Weather Resistance | ℃ | minus10- 120℃ | minus10- 120℃ | ||
| Inventory Condition | - | - | temperature: 25℃ | ||
| RH: 65% | |||||
| Insulation Resistance | - | 0. 01- 0. 06 | 0. 01- 0. 06 | Low dc resistance tester | |
| Inventory Validity | six month | ||||
- ADEQUATE COPPER FOIL TAPE - Each roll is 50mm x 10m; Wide copper foil tape can wrap the cable, machine component, connection, fan, extendable antenna, computer component fully.
- ADHESIVE TAPE WITH GOOD FLEXIBILITY - The dual conductive tape can be twisted, bent, tore easily, enable you to use them by hand, no need to apply with other tool, one fit most of cables.
- EMI SHIELDING COPPER FOIL TAPE - The copper tape can EMI shielding in electric machine to protect your electronics devices from electromagnetic interference.
- TAPE FOR PLANTS - You can wrap copper tape around the base of small plants and seedlings to protect plants. Copper conductive adhesive tape can be applied to stained glass, paper circuits, electrical repairs, soldering, grounding.
- DUAL CONDUCTIVITY - The conductive copper foil tape has dual conductivity so current will flow through both sides and the adhesive. No need to worry that the adhesive tape will reduce the effectiveness between components.
Features:
Highly Conductive
Low Resistance
Indoor & Outdoor Use
Water Resistant
Strong Conductive Adhesive
Good-quality copper tape!
Packing
Copper foils tapes product can be packed with the roll and in carton case .
