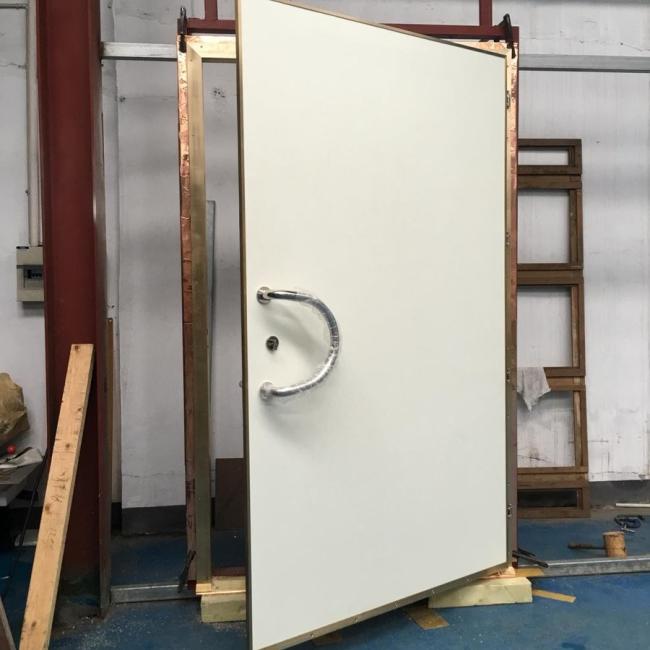

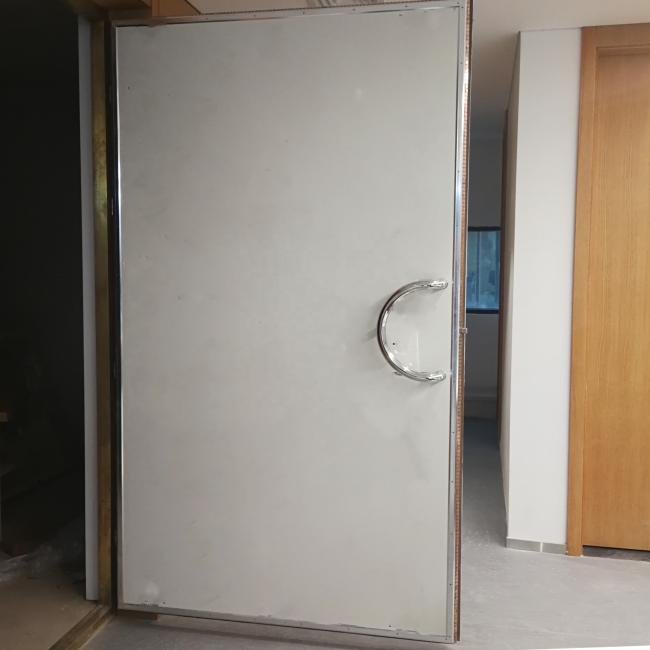

Animal Hospital Large Size Rf Shielded Doors 100db Shielding Effectiveness
Animal Hospital Large Size Rf Shielded Doors 100dB Shielding Effectiveness
Introduction
1) The most widely used electromagnetic shielding door nowadays. The access control system can be added.
2) Standard door entrance size is according to the hospital cart pass
3) Non-magnetic materials
4) Two-point latching mechanism for tight, locking seat frame with roller bearings structure, running smooth
and light
5) High-performance ance Becu fingertips, long service life, easy and convenient to open and close.
6) Hinge rotation, single & double knife-edge technology, double shielding effectiveness performance
7) Door threshold direction could modify during assemble
Usage
1) Nuclear magnetic resonance( NMR)
2) Shielding room
3) Communications room
4) Security room and labor
Packing
Pack in wooden case
Door direction
Testing report
|
Testing Item |
|
|
Testing Result | ||
|
No Shielded Space Signal |
Shield Room Signal |
Shield Performance |
|||
|
RF door 1 Shield Performance |
|
1 | 106 | 5 | 101 |
| 2 | 106 | 6 | 100 | ||
| 3 | 106 | 5 | 101 | ||
| 4 | 106 | 5 | 101 | ||
| 5 | 106 | 4 | 102 | ||
| 6 | 106 | 5 | 101 | ||
| 7 | 106 | 4 | 102 | ||
| 8 | 106 | 4 | 102 | ||
|
|
1 | 108 | 7 | 101 | |
| 2 | 108 | 6 | 102 | ||
| 3 | 108 | 7 | 101 | ||
| 4 | 108 | 6 | 102 | ||
| 5 | 108 | 6 | 102 | ||
| 6 | 108 | 6 | 102 | ||
| 7 | 108 | 6 | 102 | ||
| 8 | 108 | 5 | 103 | ||
| 42MHz | 7 | 110 | 8 | 102 | |
| 8 | 110 | 9 | 101 | ||
| 63MHz | 7 | 112 | 11 | 101 | |
| 8 | 112 | 10 | 102 | ||
| 130MHz | 7 | 115 | 14 | 101 | |
| 8 | 115 | 14 | 101 | ||
FAQ
Q. What is the door size?
A: We can offer customized size, while standard size is 2.1m x 1.2m
Q. What is the structure of the RF Door?
A: Brass foil-covered frame + copper foil + Aluminum plated 1mm coated white+ wooden frame
Q. What accessories can offer?
A: Frame+lock+handle
