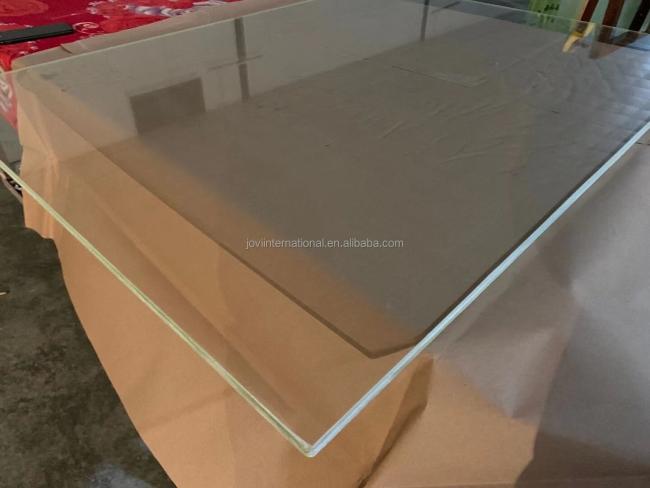

2.1mmpb Xray Room Radiation Protection Lead Glass With Frame

Price Negotiable

Price: USD 200-2000 piece

MOQ: 1 piece

Delivery Time: 7-14days

Brand: Jovi

Product Description

INFORMATION ABOUT LEAD GLASS

Lead Glass Pro offers the highest density x-ray lead glass available for the most efficient medical radiation shielding quality, which also allows approximately 85% spectral light transmission.
Lead Glass Pro ensures that its materials are uniformly dense and have a high-quality composition, which provides a dependable shielding value.
Lead Glass Pro’s X-Ray Lead Glass is approved for the medical x-ray, gamma, alpha, and beta photon shielding only.
X-Ray Lead glass is NOT for thermal neutron or fast neutron shielding. X-Ray lead glass will NOT shield against Magnetic Resonance Imaging (MRI), electro-magnetism or radio-frequency, ultrasound, laser or any non-ionizing types of radiation.

Lead Glass is widely used in X-RAY / CT shielding field. We can provide lead glass with different thicknesses

our standard thickness is from 12 mm to 25 mm, and we can also provide customized size service.

The most common size is 200*300 mm to 2400*1200 mm.

Customization is not only used for cutting, but also for refinement.

Specification

8mm	10mm	12mm	15mm	18mm	20mm	25mm
	( 1.7mmpb)	( 2.1mmpb)	( 2.6mmpb)	( 3.3 mmpb)	( 3.96 mmpb)	( 4.4 mmpb)	( 6.71 mmpb)
200* 300	200* 300* 8	200* 300* 10	200* 300* 12	200* 300* 15	200* 300* 18	200* 300* 20	-
300* 400	300* 400* 8	300* 400* 10	300* 400* 12	300* 400* 15	300* 400* 18	300* 400* 20	-
400* 600	400* 600* 8	400* 600* 10	400* 600* 12	400* 600* 15	400* 600* 18	400* 600* 20	-
600* 800	600* 800* 8	600* 800* 10	600* 800* 12	600* 800* 15	600* 800* 18	600* 800* 20	-
600* 900	600* 900* 8	600* 900* 10	600* 900* 12	600* 900* 15	600* 900* 18	600* 900* 20	-
1000* 800	1000* 800* 8	1000* 800* 10	1000* 800* 12	1000* 800* 15	1000* 800* 18	1000* 800* 20	1000* 800* 25
1200* 800	1200* 800* 8	1200* 800* 10	1200* 800* 12	1200* 800* 15	1200* 800* 18	1200* 800* 20	1200* 800* 25
1200* 900	1200* 900* 8	1200* 900* 10	1200* 900* 12	1200* 900* 15	1200* 900* 18	1200* 900* 20	1200* 900* 25
1200* 1000	1200* 1000* 8	1200* 1000* 10	1200* 1000* 12	1200* 1000* 15	1200* 1000* 18	1200* 1000* 20	1200* 1000* 25
1200* 1200	-	1200* 1200* 10	1200* 1200* 12	1200* 1200* 15	1200* 1200* 18	1200* 1200* 20	1200* 1200* 25
1500* 900	-	1500* 900* 10	1500* 900* 12	1500* 900* 15	1500* 900* 18	1500* 900* 20	1500* 900* 25
1500* 1000	-	1500* 1000* 10	1500* 1000* 12	1500* 1000* 15	1500* 1000* 18	1500* 1000* 20	1500* 1000* 25
1500* 1200	-	1500* 1200* 10	1500* 1200* 12	1500* 1200* 15	1500* 1200* 18	1500* 1200* 20	1500* 1200* 25
1600* 1000	-	1600* 1000* 10	1600* 1000* 12	1600* 1000* 15	1600* 1000* 18	1600* 1000* 20	1600* 1000* 25
1600* 1200	-	1600* 1200* 10	1600* 1200* 12	1600* 1200* 15	1600* 1200* 18	1600* 1200* 20	1600* 1200* 25
1800* 1000	-	1800* 1000* 10	1800* 1000* 12	1800* 1000* 15	1800* 1000* 18	1800* 1000* 20	1800* 1000* 25
1800* 1200	-	1800* 1200* 10	1800* 1200* 12	1800* 1200* 15	1800* 1200* 18	1800* 1200* 20	1800* 1200* 25
2000* 1000	-	2000* 1000* 10	2000* 1000* 12	2000* 1000* 15	2000* 1000* 18	2000* 1000* 20	2000* 1000* 25
2000* 1200	-	2000* 1200* 10	2000* 1200* 12	2000* 1200* 15	2000* 1200* 18	2000* 1200* 20	2000* 1200* 25
2400* 1200	-	2400* 1200* 10	2400* 1200* 12	2400* 1200* 15	2400* 1200* 18	2400* 1200* 20	2400* 1200* 25

NOTE:

Customer must verify lead equivalency meets the shielding requirements of the room
Payment will be required to begin fabrication.
Once fabrication begins, no cancellations or changes may take place
By placing this order and paying you accept and have verified sizes, quantities, lead equivalency, and accept the terms for shipping / receiving and returns / replacement
All products must be inspected upon delivery in the presence of the delivery driver. Once the product is received and the delivery receipt is signed, no claims for damage will be entertained. If there is damage, note it on the delivery receipt and contact us immediately.
All radiation shielding calculations must be determined by a radiation physicist.
