1200mm X800mm Size Lead Glass Radiation X Ray Shielding Cargo
1200mm x800mm size X Ray Radiation Protection Lead Glass Shielding Cargo
Description:
According to the different lead content, lead glass mainly has four series: ZF2, ZF3, ZF6, and ZF7.
Currently, ZF2 series lead glass is generally used. The high lead glass of the ZF6 and ZF7 series has high lead content and the same thickness. The amount of protection is high and the weight is large.
The materials are made of high-lead content optical glass. They have the characteristics of clean internal materials, good transparency, large lead equivalent, and strong anti-radiation ability. , It can effectively block X-rays, gamma rays, cobalt 60 rays, and isotope scanning.
ZF2, ZF3 series of high-lead glass is widely used in X-ray diagnosis and spiral CT scanning room observation window, medical diagnostic shielding; ZF6, ZF7 series of high-lead glass is mainly used in nuclear power plants, nuclear energy applications, and other nuclear industries.
The lead glass is optically clear and transparent protective shielding.
A low optical-quality protective glass plate with prescribed attenuation performance is used,
and its attenuation performance is 0.22mmpb per millimeter; applicable scope It can be installed
in the observation window laboratory of X-ray detection and CT scanning.
The X-ray screen of the airport security inspection and the protective window for industrial flaw detection.

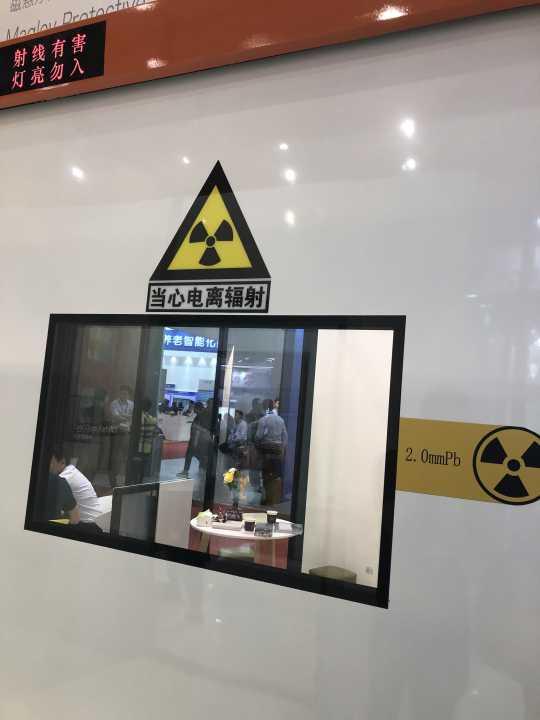

In radiology medicine, it is often used for radiation protection and shielding, or Observation window for the lead room for filming.
Specification:
| Equivalent | |||
| Standard Thickness Glass | |||
| Lead Glass(mmPb) | 1.8-2.0 | 2.5-2.7 | 3.0-3.2 |
| Thickness(mm) | 9-10 | 11-12 | 14-15 |
| X-Ray peak voltage(kv) | 150 | 150 | 200 |
|
8mm (1.7mmpb) |
10mm (2.1mmpb) |
12mm (2.6mmpb) |
15mm (3.3 mmpb) |
18mm (3.96 mmpb) |
20mm (4.4 mmpb) |
25mm (6.71 mmpb) |
|
| 200*300 | 200*300*8 | 200*300*10 | 200*300*12 | 200*300*15 | 200*300*18 | 200*300*20 | - |
| 300*400 | 300*400*8 | 300*400*10 | 300*400*12 | 300*400*15 | 300*400*18 | 300*400*20 | - |
| 400*600 | 400*600*8 | 400*600*10 | 400*600*12 | 400*600*15 | 400*600*18 | 400*600*20 | - |
| 600*800 | 600*800*8 | 600*800*10 | 600*800*12 | 600*800*15 | 600*800*18 | 600*800*20 | - |
| 600*900 | 600*900*8 | 600*900*10 | 600*900*12 | 600*900*15 | 600*900*18 | 600*900*20 | - |
| 1000*800 | 1000*800*8 | 1000*800*10 | 1000*800*12 | 1000*800*15 | 1000*800*18 | 1000*800*20 | 1000*800*25 |
| 1200*800 | 1200*800*8 | 1200*800*10 | 1200*800*12 | 1200*800*15 | 1200*800*18 | 1200*800*20 | 1200*800*25 |
| 1200*900 | 1200*900*8 | 1200*900*10 | 1200*900*12 | 1200*900*15 | 1200*900*18 | 1200*900*20 | 1200*900*25 |
| 1200*1000 | 1200*1000*8 | 1200*1000*10 | 1200*1000*12 | 1200*1000*15 | 1200*1000*18 | 1200*1000*20 | 1200*1000*25 |
| 1200*1200 | - | 1200*1200*10 | 1200*1200*12 | 1200*1200*15 | 1200*1200*18 | 1200*1200*20 | 1200*1200*25 |
| 1500*900 | - | 1500*900*10 | 1500*900*12 | 1500*900*15 | 1500*900*18 | 1500*900*20 | 1500*900*25 |
| 1500*1000 | - | 1500*1000*10 | 1500*1000*12 | 1500*1000*15 | 1500*1000*18 | 1500*1000*20 | 1500*1000*25 |
| 1500*1200 | - | 1500*1200*10 | 1500*1200*12 | 1500*1200*15 | 1500*1200*18 | 1500*1200*20 | 1500*1200*25 |
| 1600*1000 | - | 1600*1000*10 | 1600*1000*12 | 1600*1000*15 | 1600*1000*18 | 1600*1000*20 | 1600*1000*25 |
| 1600*1200 | - | 1600*1200*10 | 1600*1200*12 | 1600*1200*15 | 1600*1200*18 | 1600*1200*20 | 1600*1200*25 |
| 1800*1000 | - | 1800*1000*10 | 1800*1000*12 | 1800*1000*15 | 1800*1000*18 | 1800*1000*20 | 1800*1000*25 |
| 1800*1200 | - | 1800*1200*10 | 1800*1200*12 | 1800*1200*15 | 1800*1200*18 | 1800*1200*20 | 1800*1200*25 |
| 2000*1000 | - | 2000*1000*10 | 2000*1000*12 | 2000*1000*15 | 2000*1000*18 | 2000*1000*20 | 2000*1000*25 |
| 2000*1200 | - | 2000*1200*10 | 2000*1200*12 | 2000*1200*15 | 2000*1200*18 | 2000*1200*20 | 2000*1200*25 |
| 2400*1200 | - | 2400*1200*10 | 2400*1200*12 | 2400*1200*15 | 2400*1200*18 | 2400*1200*20 | 2400*1200*25 |
Notices:
1. The surface of lead glass is more easily scratched than that of ordinary glass and should be handled with care.
2. As lead glass materials are rich in lead and barium, lead glass is easy to be contaminated by acid and base,
and is not easy to be installed or stored in a sour or humid environment.
3. When installation, the glass must be mismatched with the wall protection material to prevent radiation leakage at the joint.
4. Lead glass is a brittle material with a large proportion, so it must be handled gently when it is moved.
Application:
It is mainly used for diagnostic X-ray machine rooms, CT, ECT, PET, ct-pet, and other machine rooms,
as well as observation of Windows on the protective screen of protective doors.
It is also a medical X-ray radiation-proof lead glass plate in the medical field.
FAQ:
Q1. Can I have a sample order for lead glass?
A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Usually 5-7 working days.
Q3. Do you have any MOQ limit for led light orders?
A: Low MOQ, 2 pc is available.
Q4. How to proceed with an order for lead glass?
A: Firstly let us know your requirements or size, thickness and also quantity.
Secondly, We quote according to your requirements or our suggestions.
Thirdly customer confirms.
Fourthly We arrange the production.
