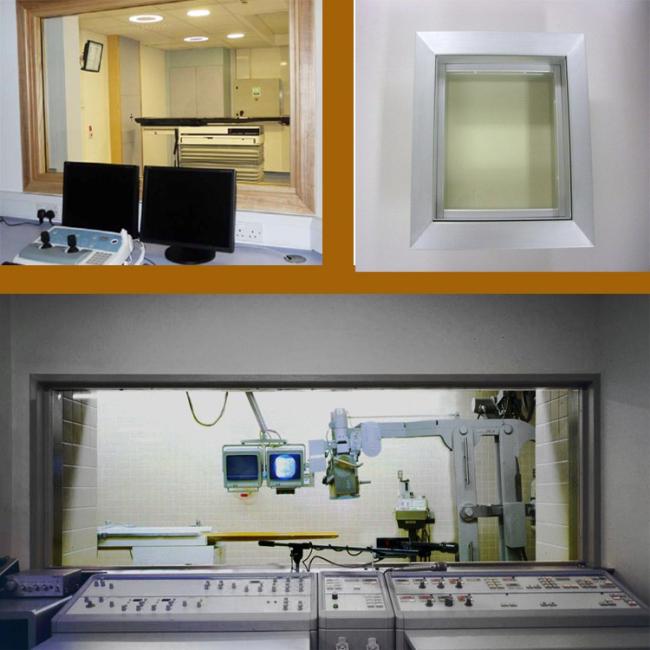

Ct Room Window Lead Glass X Ray Protection 12mm With Alloy Frame
Ct X Ray Room Window 12mm Lead Glass With Alloy Frame
Lead glass, when compared to ordinary glass (also referred to as soda-glass or soda-lime silica-glass), is a dense and heavy material as lead is more than five times as heavy as calcium. So lead glass has a density of 2.4 g/cm3 and lead glass has a density of 3.1 - 5.9 g/cm3.
X-RAY GLASS IS:
- Available in 8mm-25mm thickness lead shielding equivalences and higher ratings are available upon request.
- The highest density x-ray lead glass available for the most efficient medical radiation shielding quality, and yet also allowing approx. 88% spectral light transmission.
- Uniformly dense and is a composition of high quality materials providing a dependable shielding value.
- Lead glass also has higher electrical resistance, higher refractive index (up to 1.8 compared to 1.5 for lead-free glass), lower working temperature and lower viscosity.
|
8mm |
10mm |
12mm |
15mm |
18mm |
20mm |
25mm |
|
|
( 1.7mmpb) |
( 2.1mmpb) |
( 2.6mmpb) |
( 3.3 mmpb) |
( 3.96 mmpb) |
( 4.4 mmpb) |
( 6.71 mmpb) |
|
|
200* 300 |
200* 300* 8 |
200* 300* 10 |
200* 300* 12 |
200* 300* 15 |
200* 300* 18 |
200* 300* 20 |
- |
|
300* 400 |
300* 400* 8 |
300* 400* 10 |
300* 400* 12 |
300* 400* 15 |
300* 400* 18 |
300* 400* 20 |
- |
|
400* 600 |
400* 600* 8 |
400* 600* 10 |
400* 600* 12 |
400* 600* 15 |
400* 600* 18 |
400* 600* 20 |
- |
|
600* 800 |
600* 800* 8 |
600* 800* 10 |
600* 800* 12 |
600* 800* 15 |
600* 800* 18 |
600* 800* 20 |
- |
|
600* 900 |
600* 900* 8 |
600* 900* 10 |
600* 900* 12 |
600* 900* 15 |
600* 900* 18 |
600* 900* 20 |
- |
|
1000* 800 |
1000* 800* 8 |
1000* 800* 10 |
1000* 800* 12 |
1000* 800* 15 |
1000* 800* 18 |
1000* 800* 20 |
1000* 800* 25 |
|
1200* 800 |
1200* 800* 8 |
1200* 800* 10 |
1200* 800* 12 |
1200* 800* 15 |
1200* 800* 18 |
1200* 800* 20 |
1200* 800* 25 |
|
1200* 900 |
1200* 900* 8 |
1200* 900* 10 |
1200* 900* 12 |
1200* 900* 15 |
1200* 900* 18 |
1200* 900* 20 |
1200* 900* 25 |
|
1200* 1000 |
1200* 1000* 8 |
1200* 1000* 10 |
1200* 1000* 12 |
1200* 1000* 15 |
1200* 1000* 18 |
1200* 1000* 20 |
1200* 1000* 25 |
|
1200* 1200 |
- |
1200* 1200* 10 |
1200* 1200* 12 |
1200* 1200* 15 |
1200* 1200* 18 |
1200* 1200* 20 |
1200* 1200* 25 |
|
1500* 900 |
- |
1500* 900* 10 |
1500* 900* 12 |
1500* 900* 15 |
1500* 900* 18 |
1500* 900* 20 |
1500* 900* 25 |
|
1500* 1000 |
- |
1500* 1000* 10 |
1500* 1000* 12 |
1500* 1000* 15 |
1500* 1000* 18 |
1500* 1000* 20 |
1500* 1000* 25 |
|
1500* 1200 |
- |
1500* 1200* 10 |
1500* 1200* 12 |
1500* 1200* 15 |
1500* 1200* 18 |
1500* 1200* 20 |
1500* 1200* 25 |
|
1600* 1000 |
- |
1600* 1000* 10 |
1600* 1000* 12 |
1600* 1000* 15 |
1600* 1000* 18 |
1600* 1000* 20 |
1600* 1000* 25 |
|
1600* 1200 |
- |
1600* 1200* 10 |
1600* 1200* 12 |
1600* 1200* 15 |
1600* 1200* 18 |
1600* 1200* 20 |
1600* 1200* 25 |
|
1800* 1000 |
- |
1800* 1000* 10 |
1800* 1000* 12 |
1800* 1000* 15 |
1800* 1000* 18 |
1800* 1000* 20 |
1800* 1000* 25 |
|
1800* 1200 |
- |
1800* 1200* 10 |
1800* 1200* 12 |
1800* 1200* 15 |
1800* 1200* 18 |
1800* 1200* 20 |
1800* 1200* 25 |
|
2000* 1000 |
- |
2000* 1000* 10 |
2000* 1000* 12 |
2000* 1000* 15 |
2000* 1000* 18 |
2000* 1000* 20 |
2000* 1000* 25 |
|
2000* 1200 |
- |
2000* 1200* 10 |
2000* 1200* 12 |
2000* 1200* 15 |
2000* 1200* 18 |
2000* 1200* 20 |
2000* 1200* 25 |
|
2400* 1200 |
- |
2400* 1200* 10 |
2400* 1200* 12 |
2400* 1200* 15 |
2400* 1200* 18 |
2400* 1200* 20 |
2400* 1200* 25 |
We will also customize the size according to customer requirements, the largest size we have customized is as follows
1500mm size x 3000mm size for their CT Rooom installation.
Attention:
1. Lead glass is a brittle material with a large proportion, so it must be handled gently when it is moved.
2. When installation, the glass must be mismatched with the wall protection material to prevent radiation leakage at the joint.
3. As lead glass materials are rich in lead and barium, lead glass is easy to be contaminated by acid and base,
and is not easy to be installed or stored in a sour or humid environment.
After-Service:
1. Delivery within 10 days after receiving payments.
2. Offer Different Shipping Ways to our customers.
3. Track the order until you get the products
4. In usual, sea port we used is in Tianjin, Shenzhen...
