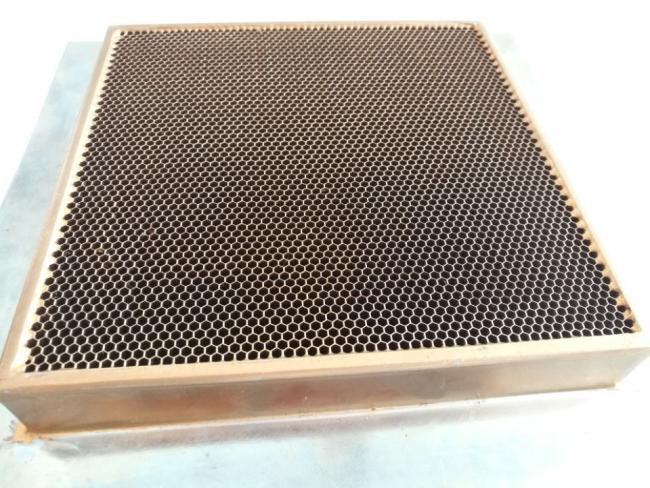

Brass Tin Plated Steel Honeycomb Waveguide Air Vents For Ventilation / Heating
Brass/Tin-Plated Steel Honeycomb Waveguide Air Vents for Ventilation/Heating
1.Specification:
EMI shielded ventilation panels for ventilation and heating in screened rooms, EMI shielding rooms & Faraday cages
Honeycomb vents are used to shield openings for ventilation or acoustic/visual contact. We can make these vents according to your drawing within a few days, or you can use our standard range from stock.
We can supply Honeycomb vents with frames, pre-drilled with fasteners, or with flow-drilled thread holes. The standard material is aluminum which can be given a nickel finish (or any other finish you choose).
If high shielding levels are required, the use of cross-cell honeycombs is recommended. These are constructed from multiple sections of 6.35 mm or 12.7 mm or 26.3 mm thick honeycombs within a single frame. The shielding performance will improve as airflow is decreased, but not eliminated.
2.Details :
| material | brass /Tin plated steel | ||
| core area size 300mm*300mm | hole cell 3.2mm | hole cell 4.2mm | hole cell 5.2mm |
| thickness 25mm | 300mm*300mm*25mm*3.2mm | 300mm*300mm*25mm*4.2mm | 300mm*300mm*25mm*5.2mm |
| thickness 50mm | 300mm*300mm*50mm*3.2mm | 300mm*300mm*50mm*4.2mm | 300mm*300mm*50mm*5.2mm |
3.Application :
Options
Cross-cell honeycomb for extra high shielding performance
Slant honeycomb 30°, 45°, 60° for outdoor rainproof applications
45° degrees is the most common implementation
Stainless steel, mild steel or brass versions
Cell sizes 1.6mm, 3.2mm, 6.4mm, 9.5mm, 12.7mm, or 19mm (standard 3.2mm)
Gaskets for firm connections
4.FAQ:
1. Can we get a product sample?
Yes, we can offer sample to you.
2. As for the honeycomb, what materials can you offer ?
We can offer brass / stainless steel/ tin plated steel materials....
3. What is packing ?
It is packed with wooden case.
