1200MM 2100MM Hospital Mri Room Installation RF Shielded Doors 15MHz
Price:
USD4271-8764/set
MOQ:
1 set
Delivery Time:
5-10 working days
Brand:
Jovi
Product Description

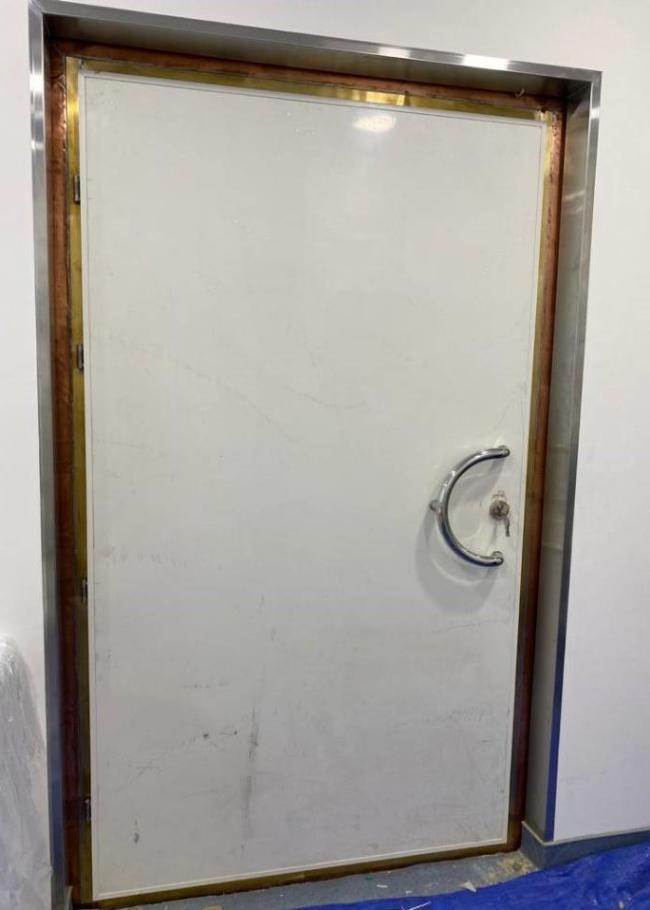

MRI Room Installation Door Inside Shielding Copper Metal with 1.2m x 2.1m
- MRI Door
- Specification
|
Size
|
Standard 1.2*2.1 meter
|
|
Material
|
Brass frame + copper foil + white fireproof board + threshold
|
|
Flange
|
With a copper flange for shielding
|
|
Attenuation
|
10MHz~1GHz meet 100dB
|
|
Packing
|
Wooden packing or customized
|
|
Shipping
|
By sea or customized
|
2. Product features
1) The most widely used electromagnetic shielding door nowadays. The access control system
can be added.
2) Using high-performance Becu finger strips, long service life, easy and convenient to open
and close.
3) Hinge rotation, single & double knife-edge technology, double shielding
effectiveness performance.
4) Two-point latching mechanism for tight, locking seat frame with roller bearings structure,
running smooth and light.
3. Advantages
1) Standard door entrance size is according to the hospital cart pass
2) Non-magnetic materials
3) Door threshold direction could modify during assemble
4) Easy to repair or replace spare parts
5) High performance with reasonable price
4. Shielding performance of brass material MRI shield door
|
Magnetic Field
|
15MHz
|
100dB
|
|
Electric Field
|
10MHz
|
100dB
|
|
30MHz
|
100dB
|
|
|
Plane Wave
|
30MHz
|
100dB
|
|
100MHz
|
100dB
|
|
|
130MHz
|
100dB
|
5. Application
1) Nuclear magnetic resonance(NMR)

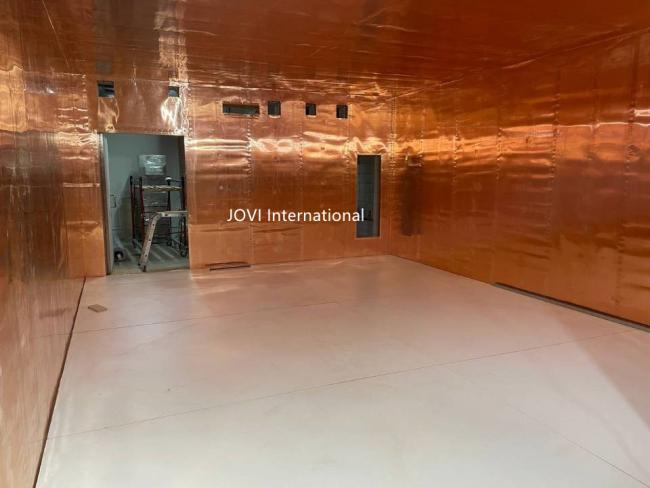

2) Shielding room
3) Communications room
4) Security room and laboratory
5) MRI room
