Electrolytic Copper Foil Shielding Emc Emi 0.105mm Thickness For Mri Room

Price Negotiable

Price: usd13.1-usd21.59/kg

MOQ: 200kg

Delivery Time: 5-8working days

Brand: Jovi

Product Description

0.105mm Thickness Electrolytic Copper Foil Shielding EMC EMI Shielding For MRI Room

Description:

Shielding copper foil is easier to make a Faraday cage, EMI room.

Features:

1. Shielding ED copper foil or RA copper foil

2. Thickness 0.009--3mm, width 10-1380mm

3. Easily and quickly modified on site

4. High performance, vertically-supported modular enclosure

5. Copper serves as an eddy current shield for EMI protection

6. Generally 200 or 500kg/roll

7. Reinforced wall design

Specification:

ED copper foil

Quality Items		General Technical Terms
Normal thickness		2oz	3oz	4oz	5oz
		0.07mm	0.105mm	0.14mm	0.175mm
Area Weight(g/m2)		560-610	838-960	1100-1280	1380-1600
Tensile strength	Room temperature	≥28	≥28	≥28	≥28
(kg/mm2)
Elongation	Room temperature	≥10	≥10	≥10	≥10
%
Leakage points(points/m2)		No
High-temperature Anti-Oxidization Performance(180℃/h)		No Oxidization
Width Tolerance		(+2.0 ,-2.0)

Specification:

RA copper foil

Thickness	0.1mm /0.15mm	0.15mm-0.5mm
Width	150mm/300mm/600mm	600mm/800mm

Application Of copper foil

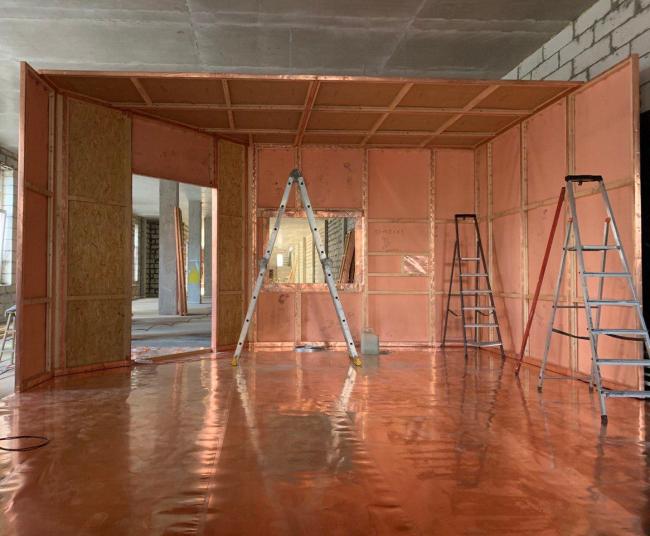

As we can see in the picture, copper foil can be widely used in MRI RF shielding room installation.

Such as ceiling, wall, and floor. It can effectively prevent the leakage of signals and noise.
