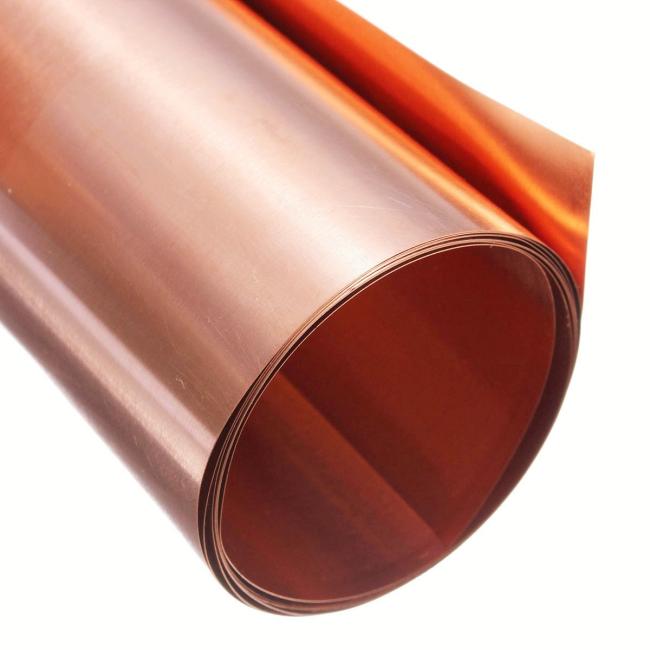

2oz Electrodeposited Copper Foil Shielding 1320mm Width Pure
3oz Electrodeposited Shielding 1320mm Width Pure Copper Foil
Quick Detail:
1. 3oz 0.105mm thickness 1320mm width
2. MOQ 200kg
3. High Elongation and high tensile performance
4. Using for MRI RF Room or Faraday Cage Shielding Field
Description:
1. Lightweight
2. Copper Serves as an eddy current shield for EMI Protection.
3. Copper with 1320mm width or wider, can be more easy to install, especially for roofing, wall and floor.
4. Necessary to prevent RF noise from entering into the MRI scanner and distorting the image. Copper is
generally considered the best shielding for MRI rooms compared with Al and GL..
Easily and quickly modified on site
5. High-performance, vertically-supported modular enclosure
Specification:
| Quality Items | General Technical Terms | |||||
| Normal Thickness | 2oz | 3oz | 4oz | 5oz | 6oz | |
| 0.07mm | 0.105mm | 0.140mm | 0.175mm | 0.210mm | ||
| Area Weight(g/m2) | 560-610 | 838-960 | 1100-1280 | 1380-1600 | 1650-1920 | |
| Tensile Strength | Room Temperature | ≥28 | ≥28 | ≥28 | ≥28 | ≥28 |
| (kg/mm2) | ||||||
| Elongation | Room Temperature | ≥10 | ≥10 | ≥10 | ≥10 | ≥10 |
| (%) | ||||||
| Leakage Points (points/m2) | No | |||||
| High-Temperature Anti-Oxidization Performance(180℃/h) | No Oxidization | |||||
| Width Tolerance | (+2.0,-2.0) | |||||
